Mechanical mounting

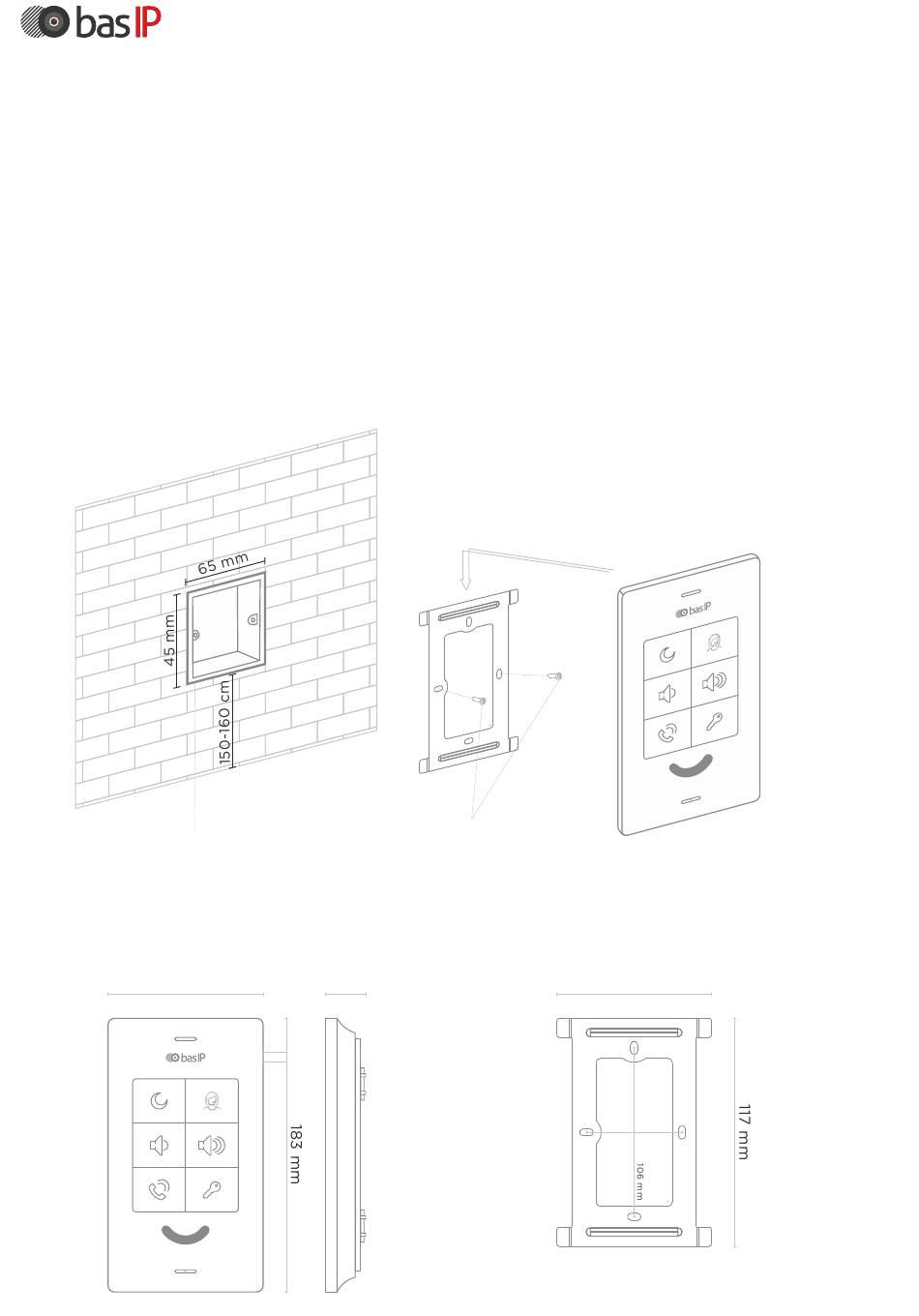

Before installing the monitor, you must provide a hole or recess in the wall
with a diameter of 68 mm for a standard mounting box for a 65x45 mm outlet.
This is necessary for switching wires and mounting the monitor.
The bracket is fixed in the socket by using the supplied screws and
a cross-head screwdriver.
The device is mounted on the bracket from top to bottom.
Mounting box Screws Device
Device Bracket
105 mm 28 mm 86 mm
60 mm
