Mechanical Mounting - BAS-IP SH-47T User Manual

EAN: 5060514913802 (BLACK)

Mechanical mounting

Before mounting the exit button, a hole or recess in the wall with diameter
59 mm must be provided.
It is also necessary to provide supply of a power cableand attendant connections
or use installation boxes with 60 mm axial distance between fixing screws.

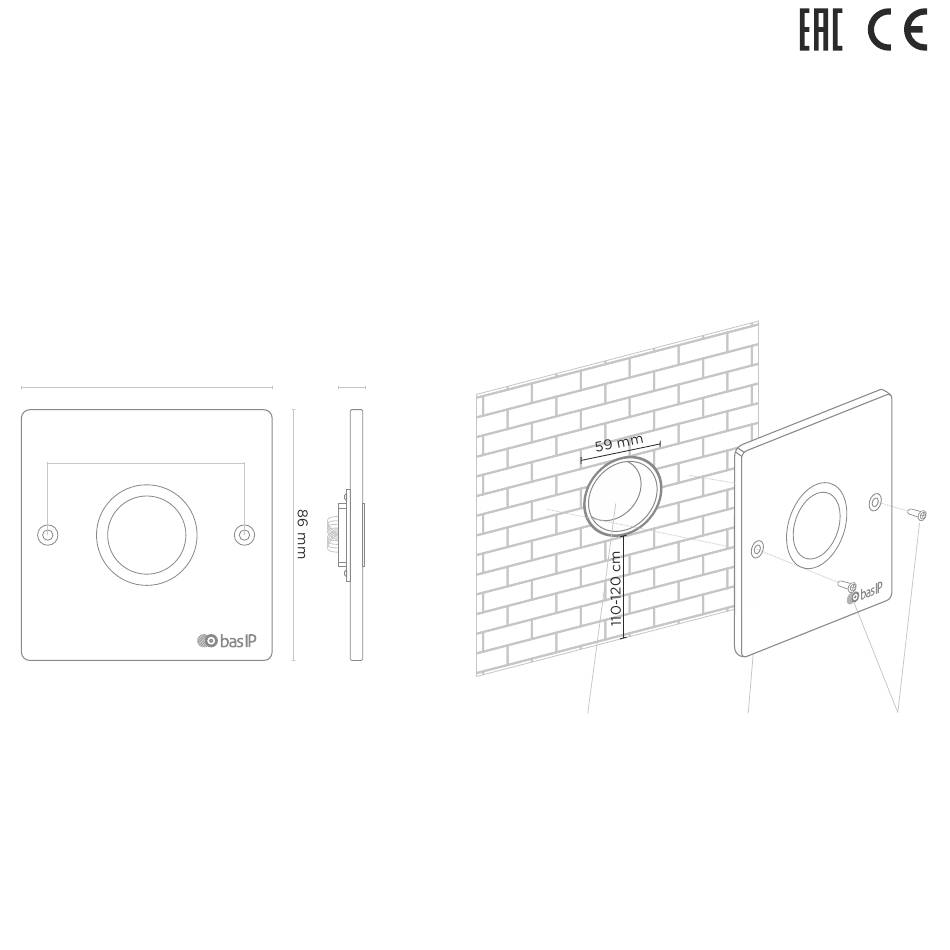

Exit button
86 mm
60 mm
EAN: 5060514913819 (SILVER)
19.5 mm
Exit button
Niche
Screws
