KNX
Stand: Jun-08 825 238 13
Operating Instructions
Switching actuator / shutter actuator
1. System information
This unit is a product of the instabus-EIB-System and corresponds to the
EIBA Guidelines. Detailed technical knowledge acquired in instabus
training courses is a prerequisite for the understanding of the system.
The functions of the device are software-dependent. Detailed information
on the software and the functions implemented and the software itself are
available from the manufacturer's product data bank.
Planning, installation and commissionning of the device are effected with
the help of EIBA-certified software.
For the productdatabase and technical descriptions please refer to the
internet at www.jung.de offering up-to-date information.
2. Safety warnings
Attention: Electrical equipment must be installed and fitted only by
qualified electricians and in observance of the applicable accident
prevention regulations.
To prevent electric shocks, disconnect the power supply before
working on the device (by cutting out the circuit breaker).
Any non-observance of the fitting instructions may cause fire or
other hazards.
Shutter actuator applications: Connect only shutter motors to the
device.
Appropriate safety measures must be taken to exclude any hazards
deriving from motor-operated components.

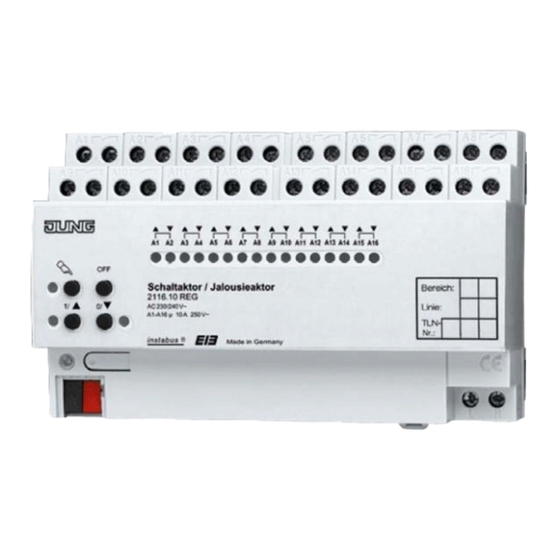

Switching actuator / shutter actuator
Ref.-no.: 2116.10 REG
Advertisement
Table of Contents
Related Manuals for Jung KNX 2116.10 REG
Summary of Contents for Jung KNX 2116.10 REG
- Page 1 Planning, installation and commissionning of the device are effected with the help of EIBA-certified software. For the productdatabase and technical descriptions please refer to the internet at www.jung.de offering up-to-date information. 2. Safety warnings Attention: Electrical equipment must be installed and fitted only by qualified electricians and in observance of the applicable accident prevention regulations.
- Page 2 Switching actuator / shutter actuator Ref.-no.: 2116.10 REG 3. Function Depending on parameterization, the actuator can either be used as switching actuator (max. 16 channels) or as shutter actuator (max. 8 channels). Functions can also be mixed, e.g. outputs A1 – A6 as switching actuator with 6 channels, outputs A7 –...
- Page 3 Switching actuator / shutter actuator Ref.-no.: 2116.10 REG 5. Characteristics Shutter operation: • Switch-over time during change of movement direction adjustable (observe the instructions of the motor manufacturer) • movement directions lockable by software control • Sun protection function • Safety shutdown during storms separately adjustable for each shutter output •...
- Page 4 Switching actuator / shutter actuator Ref.-no.: 2116.10 REG 7. Cap Figure B Figure C Slide the cap over the bus terminal with the bus line at the bottom (fig. B) until it is heard to engage. Remove the cap by pressing against the sides and by pulling it out at the same time (fig.
- Page 5 Switching actuator / shutter actuator Ref.-no.: 2116.10 REG 2 flashing LEDs indicate the shutter function. Keys 1/ and 0/ can be used for switching the output indicated by a ▲ ▼ flashing LED A1 – A16, the switching state itself being indicated by the LED beside the keys.
- Page 6 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
