Communication

Software:
UPSilon Monitoring (Reference UPSilon manual for installation instructions.)
1. Connect supplied USB cable between UPS and PC workstation.

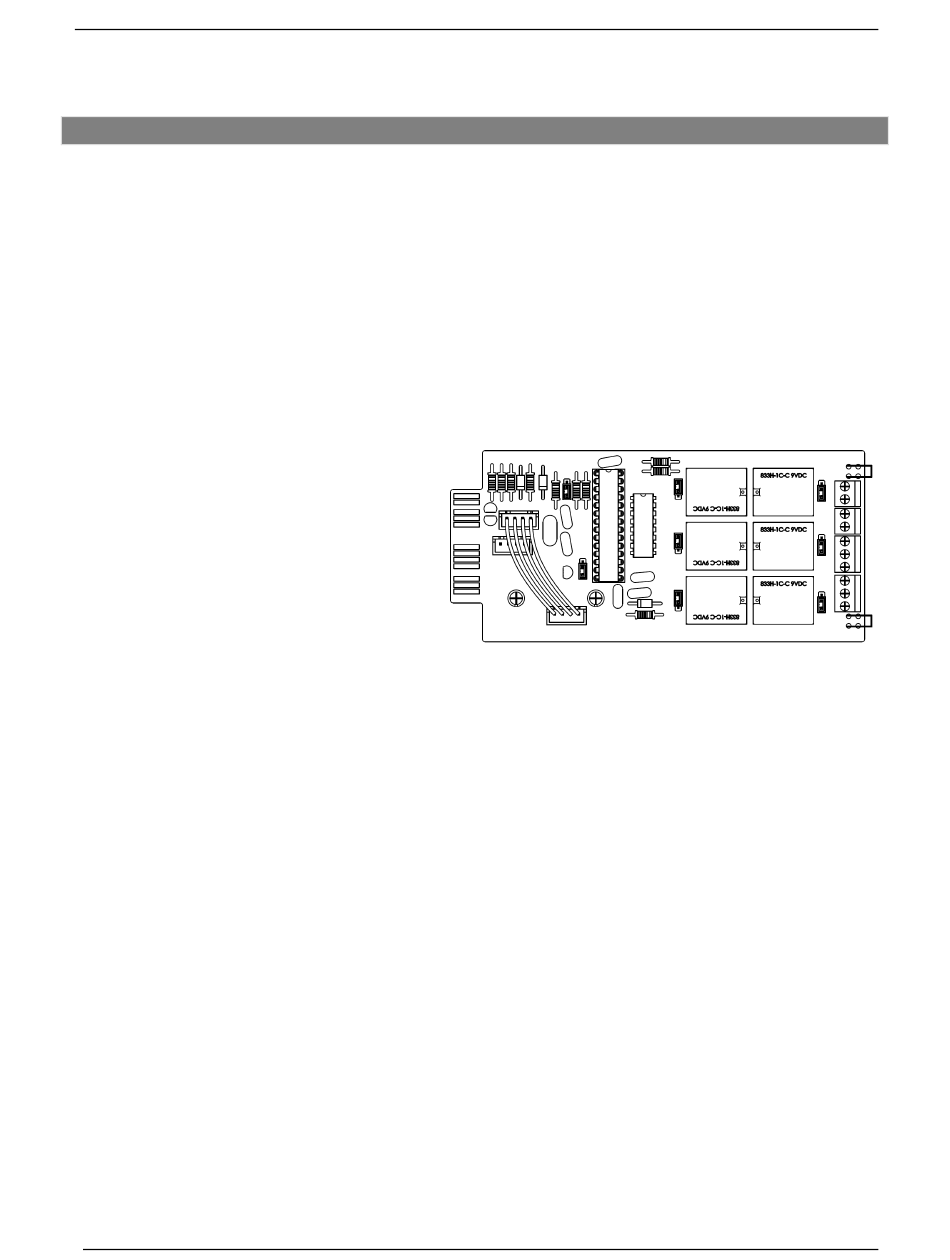

Dry Contact Relay Card (Falcon Item #: UA88383)
Pin 1: UPS on Bypass mode
Pin 2: Utility Abnormal
Pin 3: Utility Normal
Pin 4: Inverter On
Pin 5: Battery Low
Pin 6: Battery Abnormal
Pin 7: UPS Alarm
Pin 8: Common
Pin 9: Shutdown UPS positive (+) signal
Pin 10: Shutdown UPS negative (-) signal
Notes:
The shutdown function will be activated after +6 to +25 VDC is applied between pin 9
•
and pin 10 for 5 seconds.
The capacity of each relay contact is 40 VDC/25mA.
•
Installation Position: Slot 1 (CHA-CN7) or Slot 2 (CHB-CN8).
•
Flexible signal output for N.C. (Normal close) or N.O. (Normal open) contact by shorting
•
pins 1-2 or pins 2-3 from JP1-5.
The shutdown function will be enabled 1 minute after blackout occurs if pins 1-2 of both
•
CN1 and CN6 are shorted. Otherwise the shutdown function can be enabled only by
pins 9-10 of CN3 if pins 2-3 of both CN1 and CN6 are shorted.
