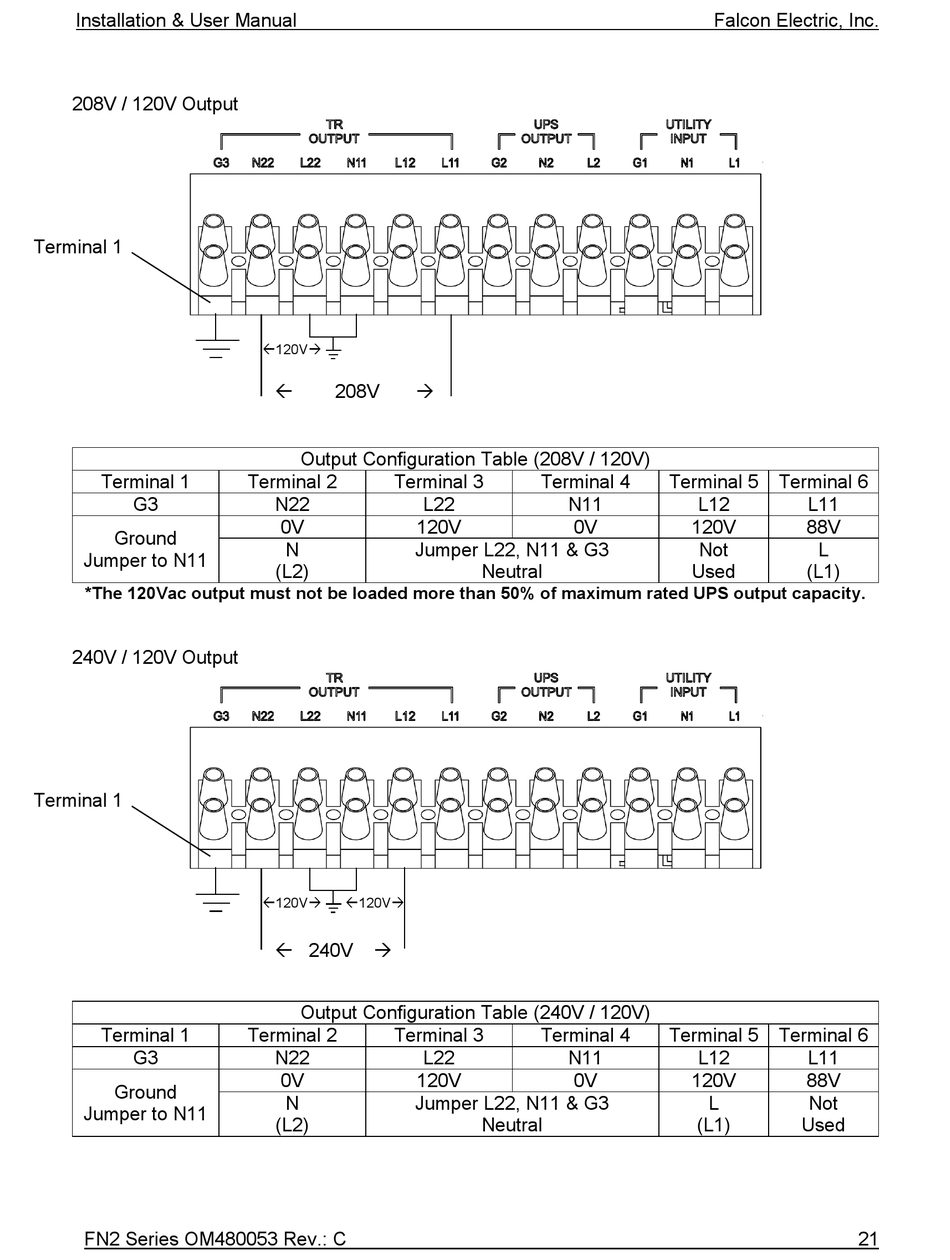

Installation & User Manual
208V / 120V Output
Terminal 1
Terminal 1
G3
Ground
Jumper to N11
*The 120Vac output must not be loaded more than 50% of maximum rated UPS output capacity.
240V / 120V Output
Terminal 1
Terminal 1
G3
Ground
Jumper to N11
FN2 Series OM480053 Rev.: C
120V
208V
 
Output Configuration Table (208V / 120V)
Terminal 2 Terminal 3
N22 L22
0V 120V
N Jumper L22, N11 & G3
(L2)
120V 120V
 240V

Output Configuration Table (240V / 120V)
Terminal 2 Terminal 3
N22 L22
0V 120V
N Jumper L22, N11 & G3
(L2)
Terminal 4
N11
0V
Neutral
Terminal 4
N11
0V
Neutral
