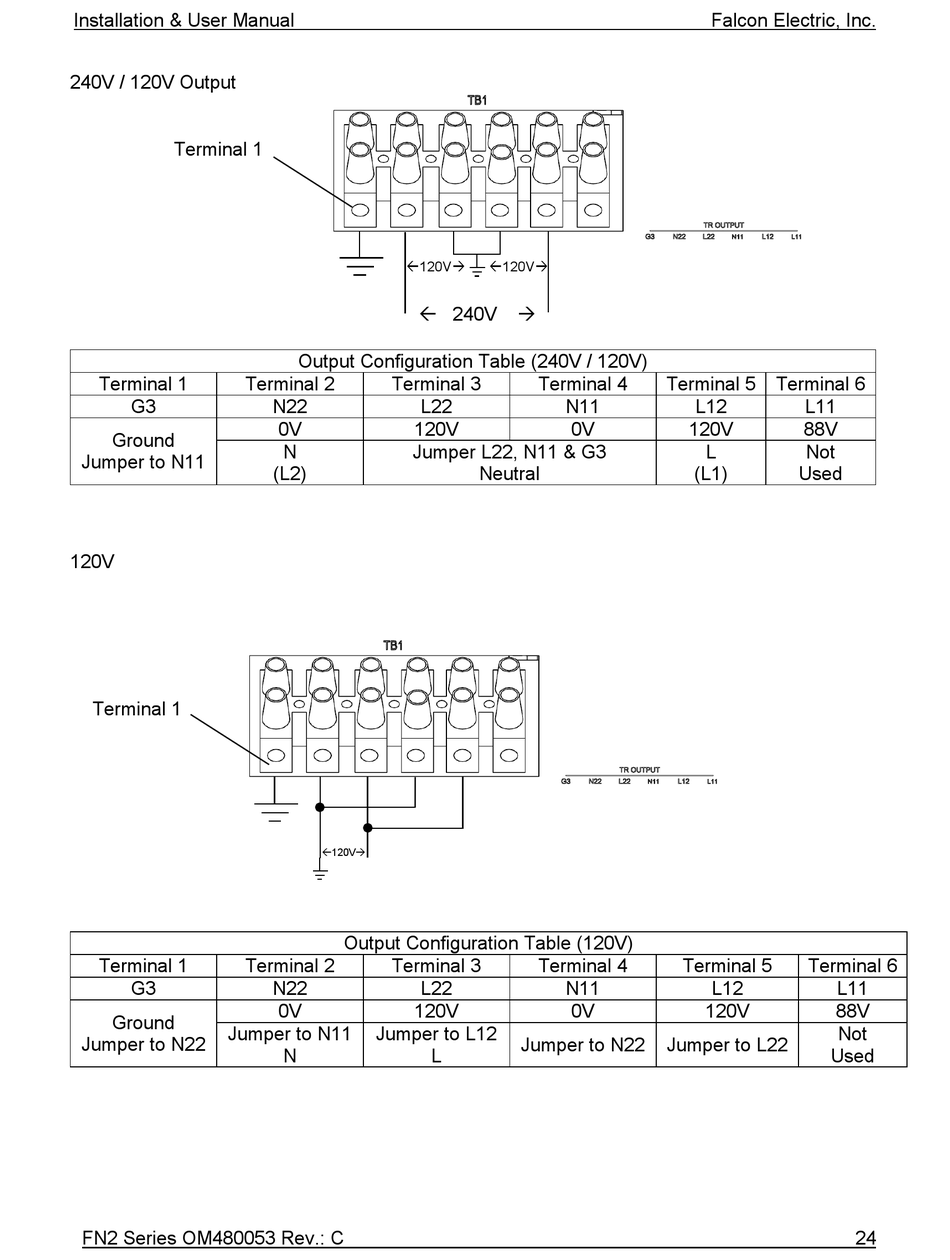

Falcon FN2 Series Installation & User Manual page 24

Installation & User Manual
240V / 120V Output
Terminal 1
Terminal 1 Terminal 2
G3
Ground
Jumper to N11
120V
Terminal 1
Terminal 1 Terminal 2
G3
Ground
Jumper to N11
Jumper to N22
FN2 Series OM480053 Rev.: C
120V
 240V
Output Configuration Table (240V / 120V)
Terminal 3
N22 L22
0V 120V
N Jumper L22, N11 & G3
(L2)
120V
Output Configuration Table (120V)
Terminal 3
N22 L22
0V 120V
Jumper to L12
N L
120V

Terminal 4
N11
0V
Neutral
Terminal 4
N11
0V
Jumper to N22
Falcon Electric, Inc.
Terminal 5 Terminal 6
L12 L11
120V 88V
L Not
(L1) Used
Terminal 5 Terminal 6
L12 L11
120V 88V
Not
Jumper to L22
Used
