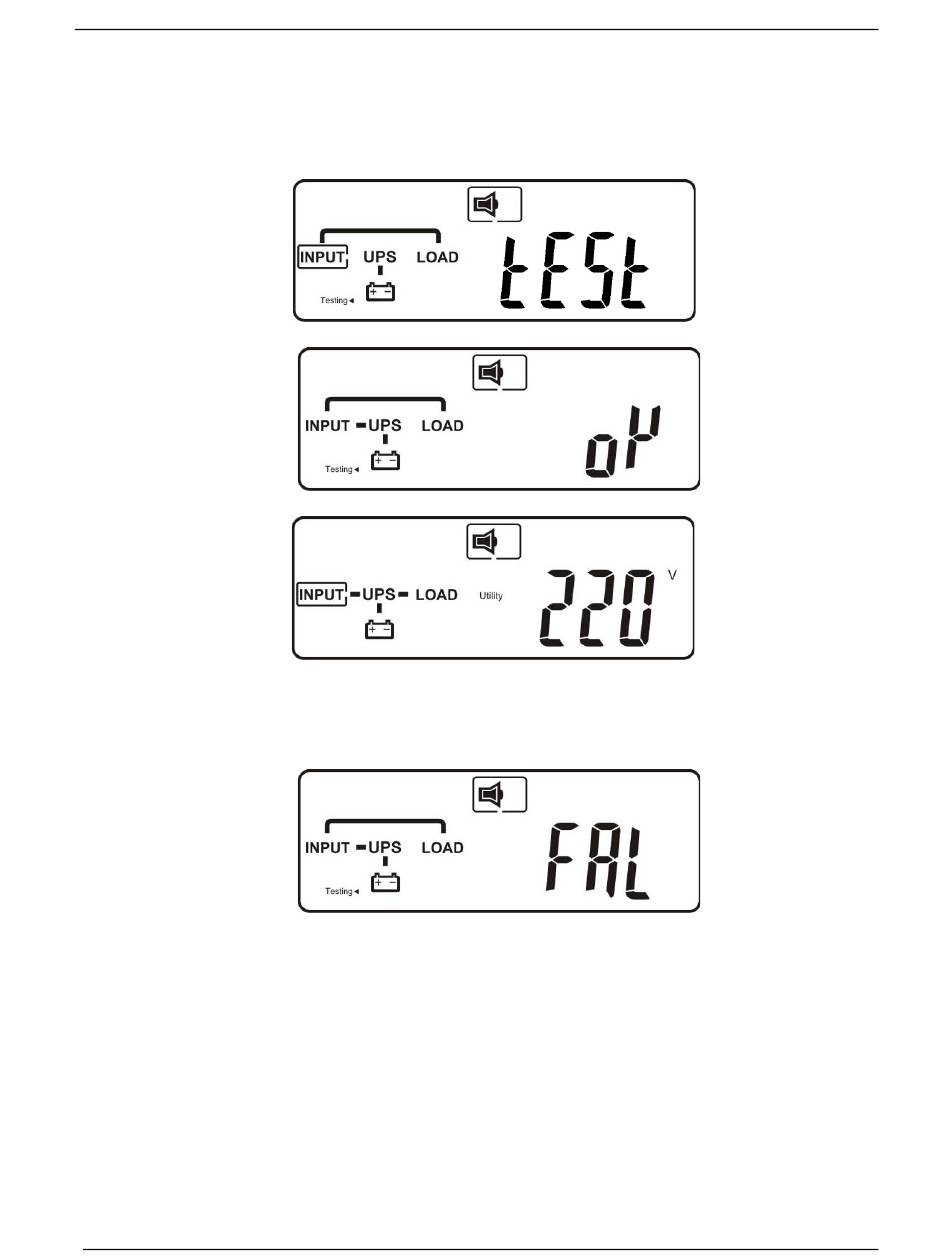

5. The UPS is in self-test mode. The LCD display will change from figure C to figure D, and
the UPS will remain in battery mode for approximately four seconds. Then the display
will change from figure E1 to figure F if the self-test was successful.
D
E1
F
6. If the self-test fails, the LCD display will change from figure D to figure E2, then an error
code or error status will appear on the screen.
E2
7. Start-up operation of the UPS is now complete. Allow a minimum of 8 hours for the UPS
to charge the internal batteries before powering a load.
