Installation & User Manual

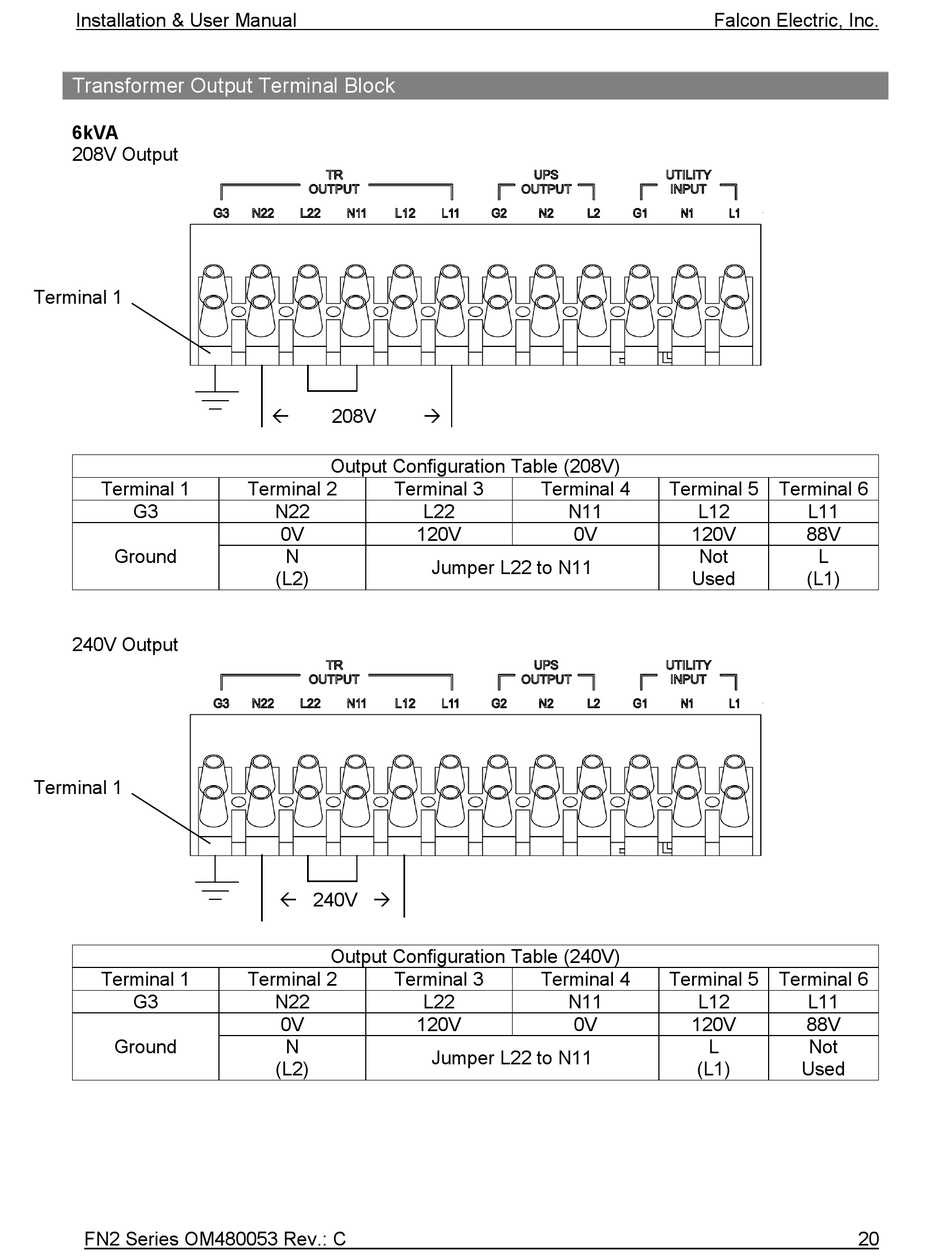

Transformer Output Terminal Block

6kVA
208V Output
Terminal 1
Terminal 1
G3
Ground
240V Output
Terminal 1
Terminal 1
G3
Ground
FN2 Series OM480053 Rev.: C
208V
 
Output Configuration Table (208V)
Terminal 2 Terminal 3
N22 L22
0V 120V
N
(L2)
 240V 
Output Configuration Table (240V)
Terminal 2 Terminal 3
N22 L22
0V 120V
N
(L2)
Terminal 4
N11
0V
Jumper L22 to N11
Terminal 4
N11
0V
Jumper L22 to N11
Falcon Electric, Inc.
Terminal 5 Terminal 6
L12 L11
120V 88V
Not L
Used (L1)
Terminal 5 Terminal 6
L12 L11
120V 88V
L Not
(L1) Used
20
