Installation & User Manual

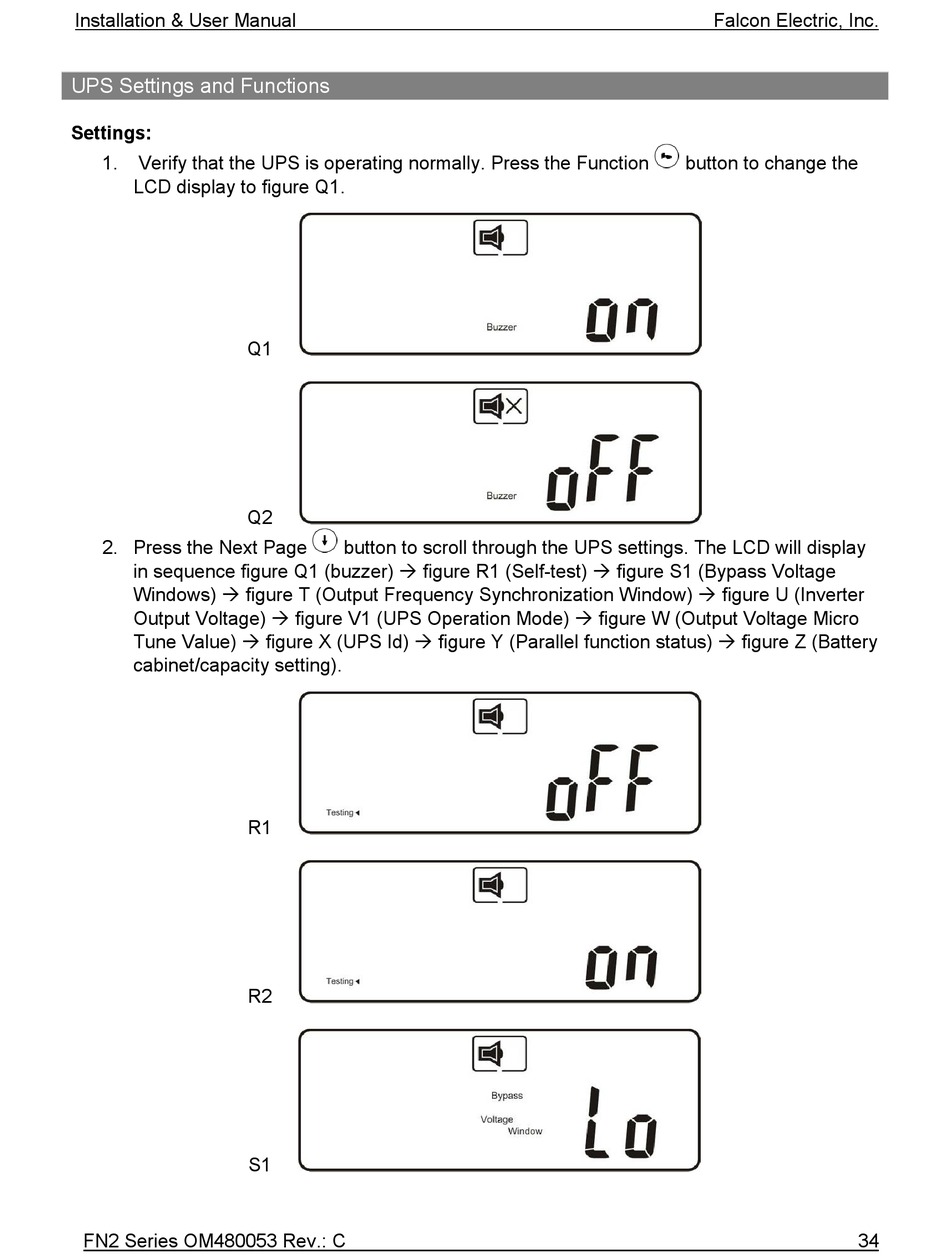

UPS Settings and Functions
Settings:
1.
Verify that the UPS is operating normally. Press the Function
LCD display to figure Q1.
Q1
Q2
2. Press the Next Page
in sequence figure Q1 (buzzer) figure R1 (Self-test) figure S1 (Bypass Voltage
Windows) figure T (Output Frequency Synchronization Window) figure U (Inverter
Output Voltage) figure V1 (UPS Operation Mode) figure W (Output Voltage Micro
Tune Value) figure X (UPS Id) figure Y (Parallel function status) figure Z (Battery
cabinet/capacity setting).
R1
R2
S1
FN2 Series OM480053 Rev.: C
button to scroll through the UPS settings. The LCD will display
Falcon Electric, Inc.
button to change the
34
