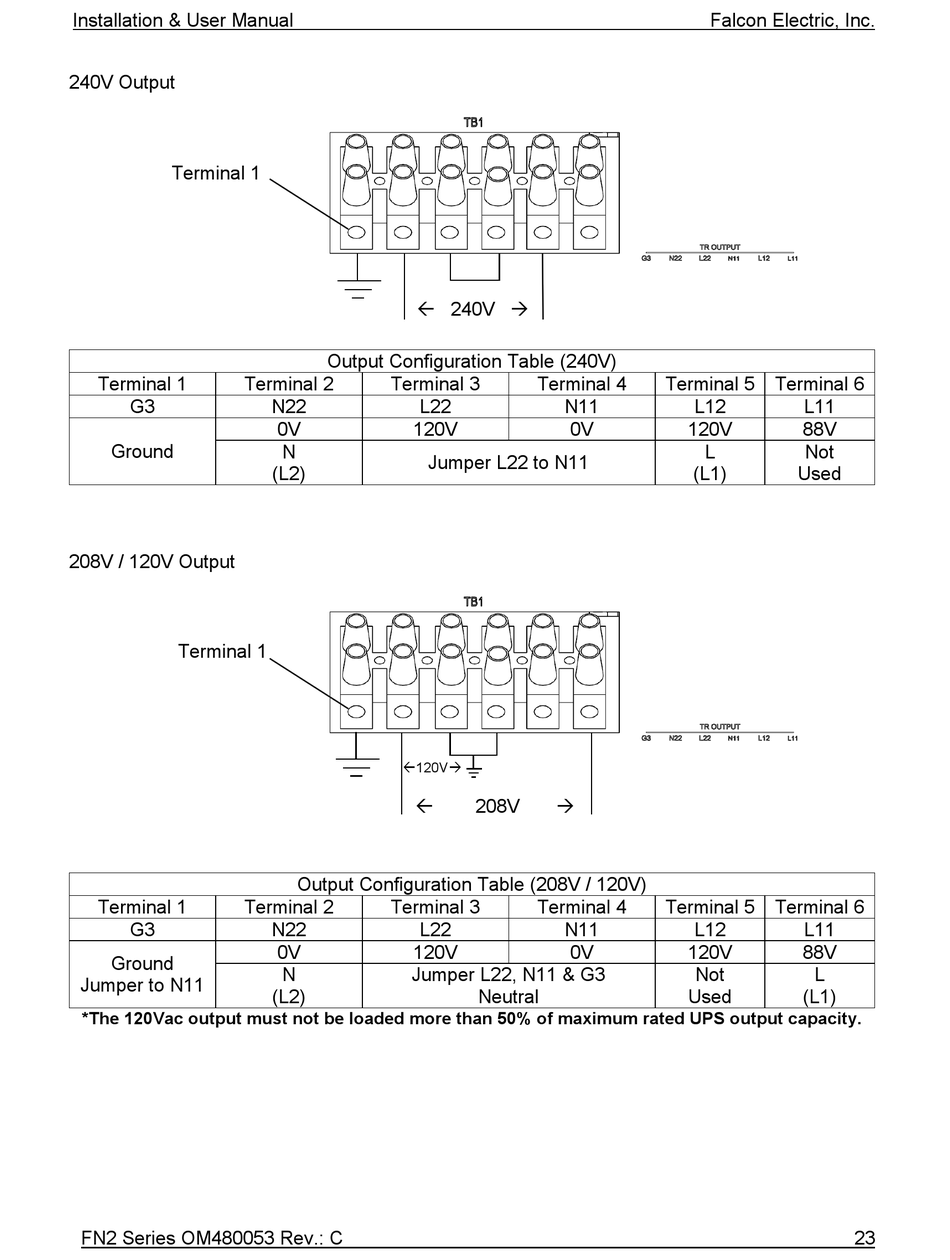

Falcon FN2 Series Installation & User Manual page 23

Installation & User Manual
240V Output
Terminal 1
Terminal 1 Terminal 2
G3
Ground
208V / 120V Output
Terminal 1
Terminal 1 Terminal 2
G3
Ground
Jumper to N11
*The 120Vac output must not be loaded more than 50% of maximum rated UPS output capacity.
FN2 Series OM480053 Rev.: C
 240V 
Output Configuration Table (240V)
Terminal 3
N22 L22
0V 120V
N
Jumper L22 to N11
(L2)
120V

Output Configuration Table (208V / 120V)
Terminal 3
N22 L22
0V 120V
N Jumper L22, N11 & G3
(L2)
Terminal 4
N11
0V
208V

Terminal 4
N11
0V
Neutral
Falcon Electric, Inc.
Terminal 5 Terminal 6
L12 L11
120V 88V
L Not
(L1) Used
Terminal 5 Terminal 6
L12 L11
120V 88V
Not L
Used (L1)
23
