Installation & User Manual

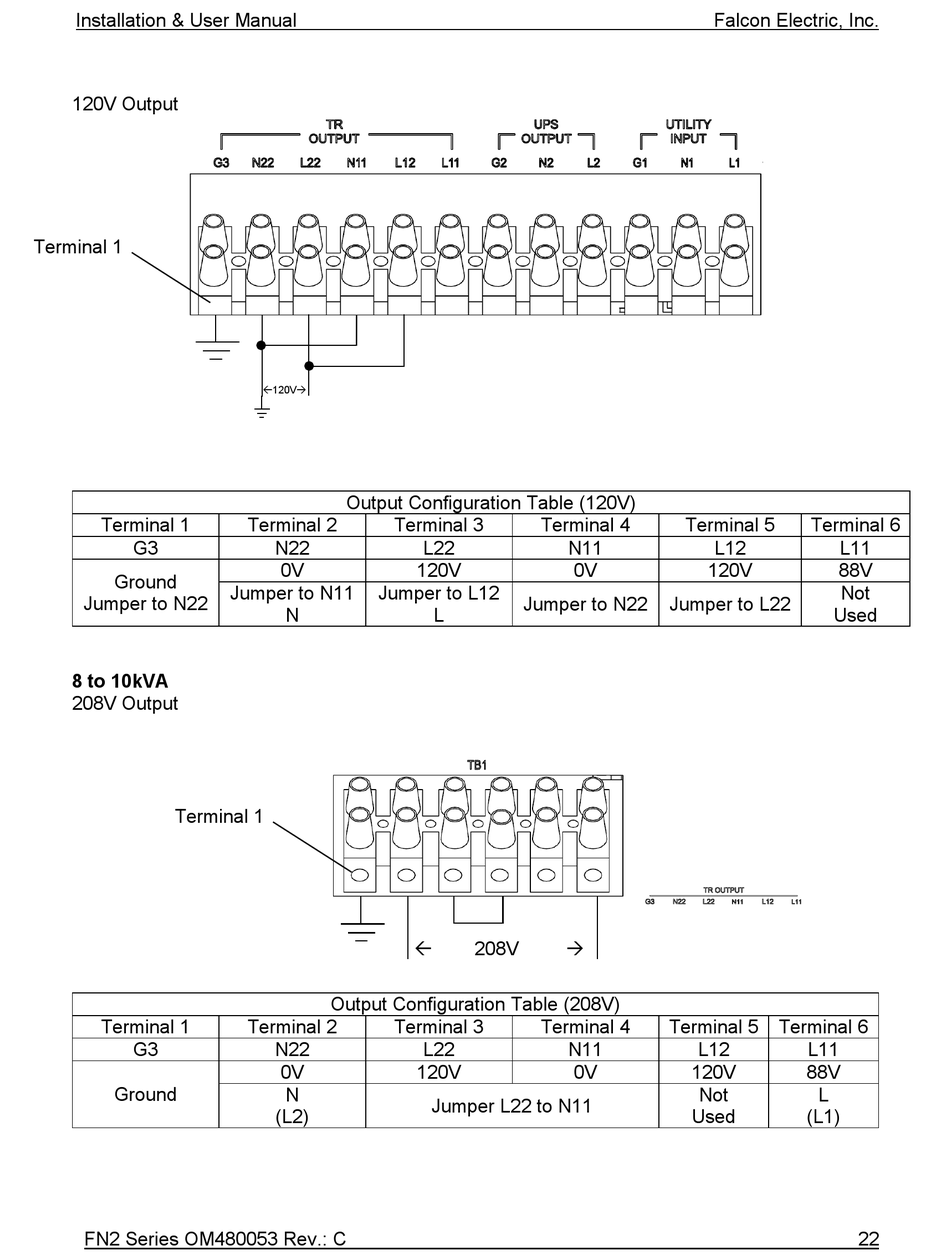

120V Output
Terminal 1
Terminal 1
G3
Ground
Jumper to N22
8 to 10kVA
208V Output
Terminal 1
Terminal 1
G3
Ground
FN2 Series OM480053 Rev.: C
120V
Output Configuration Table (120V)
Terminal 2 Terminal 3
N22
0V
Jumper to N11 Jumper to L12
N
Output Configuration Table (208V)
Terminal 2 Terminal 3
N22
0V
N
(L2)
Terminal 4
L22 N11
120V 0V
Jumper to N22
L
208V
 
Terminal 4
L22 N11
120V 0V
Jumper L22 to N11
Falcon Electric, Inc.
Terminal 5 Terminal 6
L12 L11
120V 88V
Not
Jumper to L22
Used
Terminal 5 Terminal 6
L12 L11
120V 88V
Not L
Used (L1)
22
