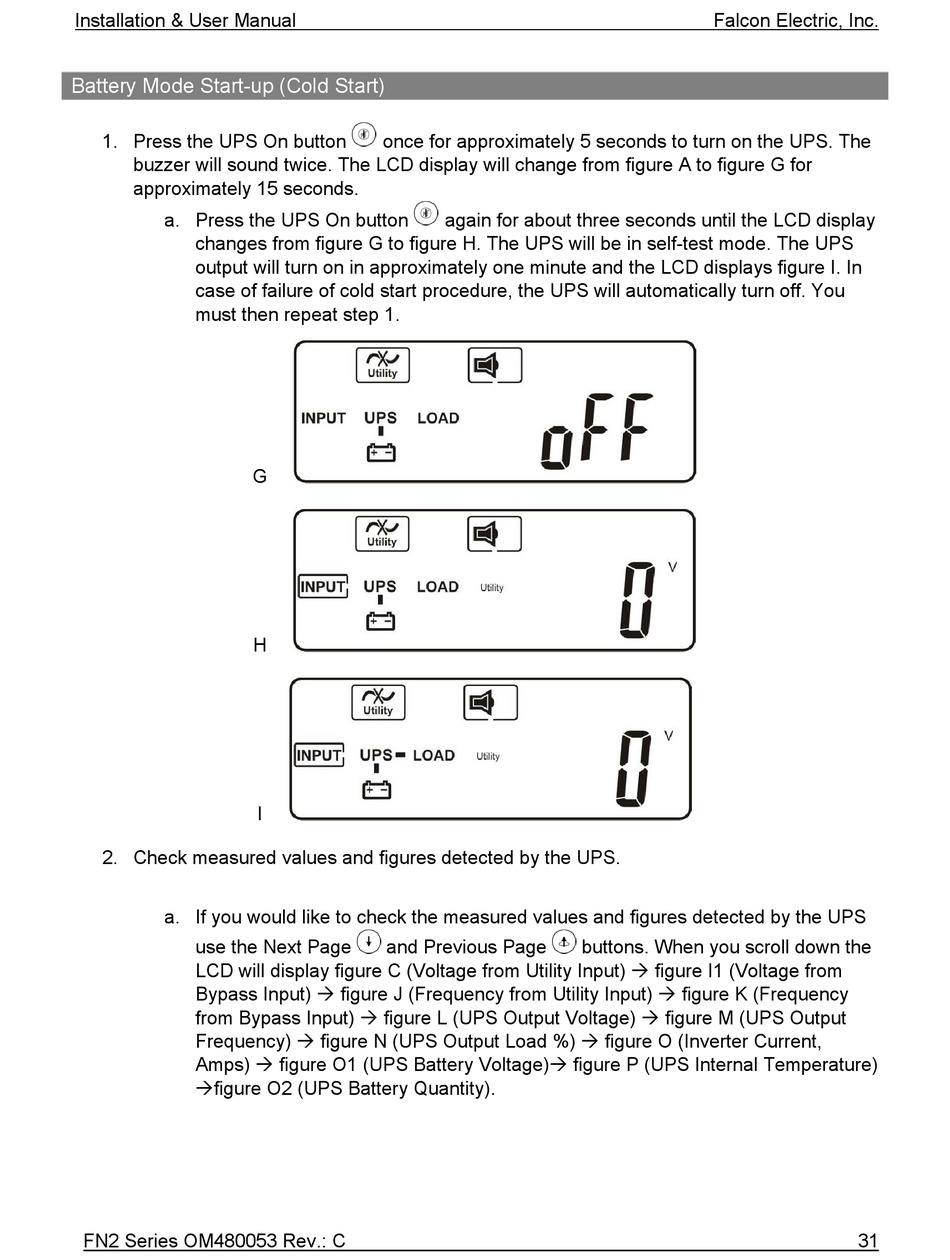

Battery Mode Start-up (Cold Start)

1. Press the UPS On button
buzzer will sound twice. The LCD display will change from figure A to figure G for
approximately 15 seconds.
a. Press the UPS On button
changes from figure G to figure H. The UPS will be in self-test mode. The UPS
output will turn on in approximately one minute and the LCD displays figure I. In
case of failure of cold start procedure, the UPS will automatically turn off. You
must then repeat step 1.
2. Check measured values and figures detected by the UPS.
a. If you would like to check the measured values and figures detected by the UPS
use the Next Page
LCD will display figure C (Voltage from Utility Input)  figure I1 (Voltage from
Bypass Input)  figure J (Frequency from Utility Input)  figure K (Frequency
from Bypass Input)  figure L (UPS Output Voltage)  figure M (UPS Output
Frequency)  figure N (UPS Output Load %)  figure O (Inverter Current,
Amps)  figure O1 (UPS Battery Voltage) figure P (UPS Internal Temperature)
figure O2 (UPS Battery Quantity).
