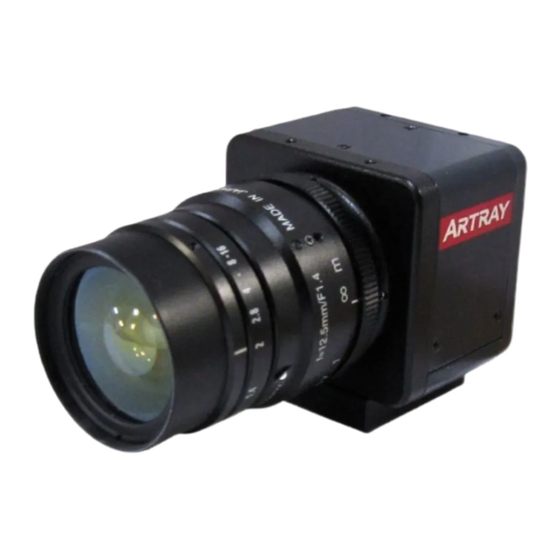

- Page 1 Oct 17, 2014 Ver1.00 USB3.0 CMOS CAMERA ARTCAM-MI-USB3-T2 Series INSTRUCTION BOOKLET 5.0 M Pixels ARTCAM-500MI-USB3-T2 Series 10.0 M Pixels ARTCAM-1000MI-USB3-T2 Series 14.0 M Pixels ARTCAM-1400MI-USB3 -T2 Series ARTRAY CO., LTD.
-
Page 2: Table Of Contents
Contents 1. Attention ··············································· 3 2. Introduction ··········································· 6 3. Main Features ······································· 6 4. The Product ·········································· 8 5. Connect the Camera ······························ 8 6. Specifications ········································ 9 7. External Dimensions ······························ 12 8. Spectral Sensitivity Characteristics ··········· 13 9. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
- Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below : Hardware Warranty : http : //www.artray.us/download/artray_warranty.pdf - 5 -...
-
Page 6: Introduction
2. Introduction ARTCAM-MI-USB3-T2 Series is CMOS cameras designed for industrial use. Adopting USB3.0 enable direct data transfer to PC without a capture board. 3. Main Features ・High Resolution, High Frame Rate Realize High speed of USB3.0 interface, wide range of resolutions from 5 mega pixels to 14 mega pixels. - Page 7 ・Sub-sampling function This function results in a more pleasing output image with reduced subsampling artifacts and improves the frame rate. 1/2 Sub-sampling mode 1/4 Sub-sampling mode ・Mirror function Mirror could be processed either on the sensors or on the viewer software (ART-Viewer). 500MI-USB3-T2 1000MI-USB3-T2 1400MI-USB3-T2...
-
Page 8: The Product
4. The Product 1) Camera 2) USB3.0 Cable A to Micro B connector 3m (with locking screws) 3) Introduction Booklet 4) Viewer software/Device Driver CD <Options> 1) C Mount lens 2) 2 Measurement & Filing Software [ART-MEASURE] 3) Recording Software [ART-REC] 4) Software Development Kit [ARTCCM-SDK] 5. -
Page 9: Specifications
6. Specifications 6-1 Color Model ARTCAM-500MI-USB3-T2 ARTCAM-1000MI-USB3-T2 ARTCAM-1400MI-USB3-T2 Sensor Type CMOS Color Image Sensor Active Pixels 2592(H)×1944(V) 3856(H)×2764(V) 4068(H)×3288(V) Active Imager 5.70(H)×4.28(V)mm 6.41(H)×4.59(V)mm 6.14(H)×4.60(V)mm 1/2.5” 1/2.3” 1/2.3” Size Scan Mode Progressive Scan 2.2(H)×2.2(V)μm 1.67(H)×1.67(V)μm 1.4(H)×1.4(V)μm Pixel Size Shutter Type Rolling Shutter Color Filter Array RGB Bayer Pattern Frame Rate... - Page 10 6-2 Monochrome Model ARTCAM-500MI-BW-USB3-T2 ARTCAM-1000MI-BW-USB3-T2 Sensor Type CMOS Monochrome Image Sensor Active Pixels 2592(H)×1944(V) 3856(H)×2764(V) Active Imager 5.70(H)×4.28(V)mm 1/2.5” 6.41(H)×4.59(V)mm 1/2.3” Size Scan Mode Progressive Scan 1.67(H)×1.67(V)μm Pixel Size 2.2(H)×2.2(V)μm Shutter Type Rolling Shutter Frame Rate 13.9fps 6fps Shutter Speed 1/10000～2.0s 1/10000～2.0s Interface...
- Page 11 6-3 NIR model ARTCAM-500MI-NIR-USB3-T2 ARTCAM-1000MI-NIR-USB3-T2 Sensor Type CMOS Monochrome Image Sensor Active Pixels 2592(H)×1944(V) 3856(H)×2764(V) Active Imager 5.70(H)×4.28(V)mm 1/2.5” 6.41(H)×4.59(V)mm 1/2.3” Size Scan Mode Progressive Scan 2.2(H)×2.2(V)μm 1.67(H)×1.67(V)μm Pixel Size Shutter Type Rolling Shutter Frame Rate 13.9fps 6fps Shutter Speed 1/10000～2.0s 1/10000～2.0s Interface...
-
Page 12: External Dimensions
7. External Dimensions 7-1 C-MOUNT, CASED CAMERA ARTCAM-500MI-USB3-T2/ 500MI-BW-USB3-T2 / 500MI-NIR-USB3-T2 ARTCAM-1000MI-USB3-T2/ 1000MI-BW-USB3-T2/ 1000MI-NIR-USB3-T2 ARTCAM-1400MI-USB3-T2 - 12 -... -
Page 13: Spectral Sensitivity Characteristics
8. Spectral sensitivity characteristics 8.1 ARTCAM-500MI-USB3-T2 series(Color Model) 8.2 ARTCAM-500MI-BW-USB3-T2 series(Monochrome Model) - 13 -... - Page 14 8.3 ARTCAM-1000MI-USB3-T2 series(Color Model) 8.4 ARTCAM-1000MI-BW-USB3-T2 series(Monochrome Model) - 14 -...
- Page 15 8.5 ARTCAM-1400MI-USB3-T2 series(Color Model) - 15 -...
-
Page 16: Recommended Pc
*For the recommended extension cable, please contact our sales department. (TEL : +81-3389-5488) ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel : +81-3-3389-5488 Fax : +81-3-3389-5486 Email : sales@artray.us URL : www.artray. us - 16 -...
