Savant ProAV Series Quick Reference Manual

Savant® ProAV 16 Channel Audio Output IP Receiver with Control (PAV-AOM8C)
Quick Reference Guide

Box Contents

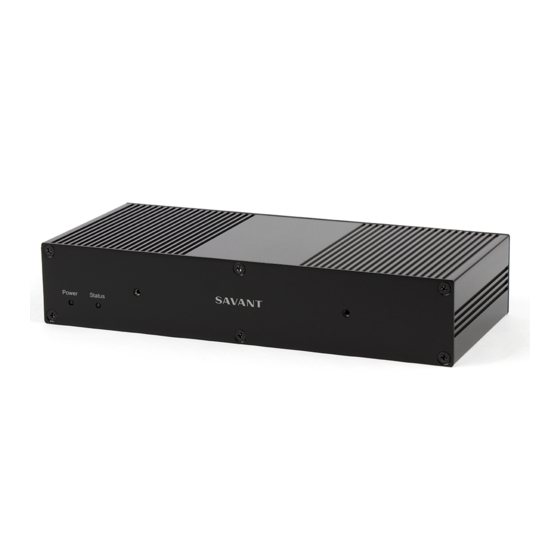

(1) 16 Channel Audio Output IP Receiver (PAV-AOM8S-00)
(1) Installation Kit (075-0195-xx)
(2) 3-pin Control Connector (028-9351-xx)
(1) 5V DC 3A Power Supply (025-0153-xx)
(1) Quick Reference Guide (this document)

Specifications

Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)

Dimensions and Weight

Height 1.6in (41.5 mm)
Width 8.5in (215.0 mm)
Depth 3.7in (93.3 mm)
Weight Net: 1.4lb (0.64 kg) Shipping: 2.3lb (1.05 kg)

Power

Input Power 5V DC 3A
Max Power 15 Watts

Networking

Supported IEEE 802.1 AVB/TSN switches
Standard IEEE 802.3 Ethernet

Regulatory

FCC Part 15
Safety and
Emissions
RoHS Compliant

Network Configuration

To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.

Network Requirements

The PAV-AOM8C requires a Audio Video Bridging (AVB) network.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
PAV-AOM8C | 009-1563-01 | 171031
Copyright 2017 Savant Systems, LLC
CE C-Tick
1

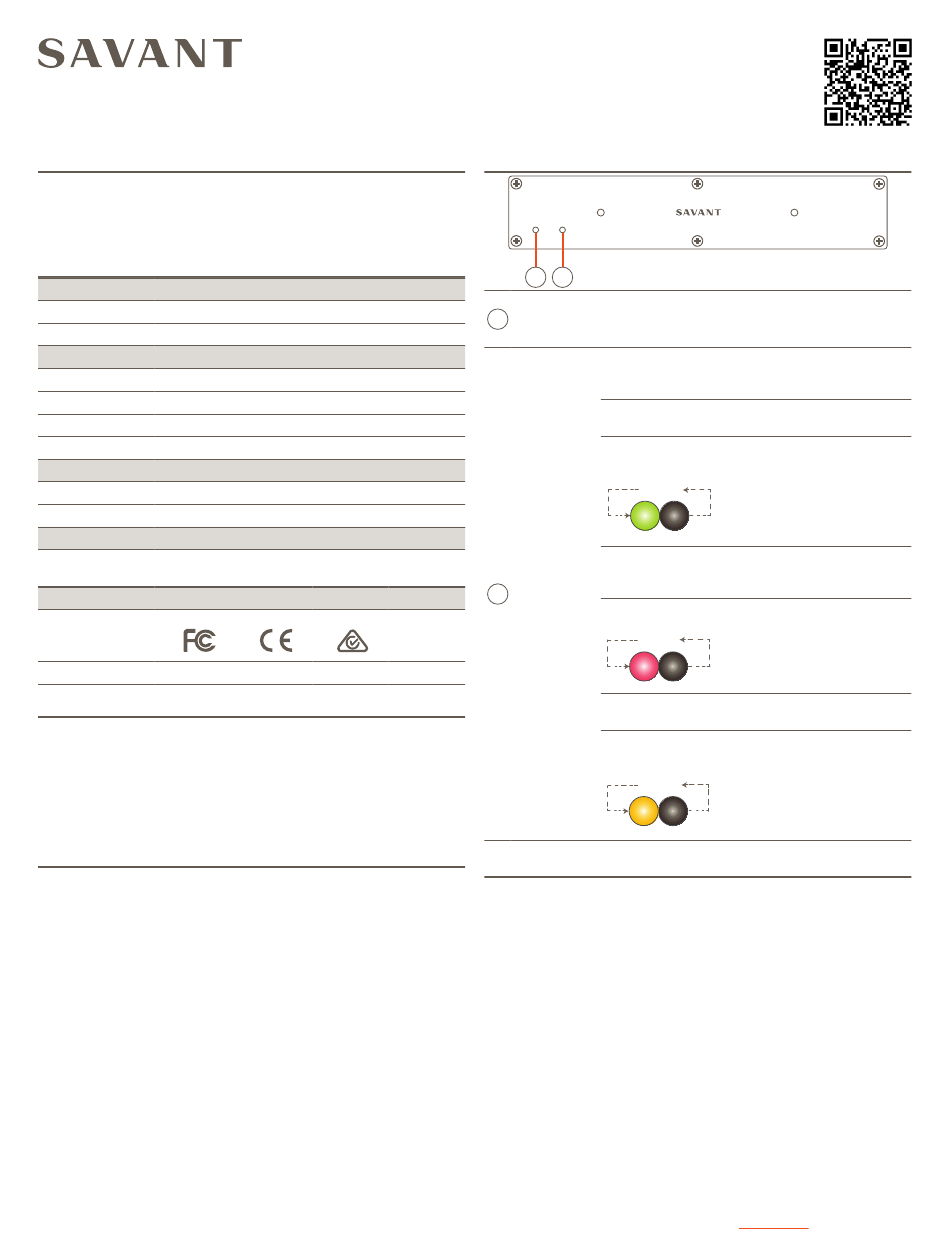

Front Panel

Power Status

A B
Green: System has power and is operating
A
Power LED normally.
Off: System is not receiving power
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Green: Host has established communications
with the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Repeat
1s
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
B
Status LED
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Repeat
1s
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link-local IP Address and is connecting to the
host.
Repeat
1s

Installation

The PAV-AOM8C should be installed on a solid, flat, level surface. The
device will fit on a 1U rack shelf. The location should be dry, well
ventilated, and out of direct sunlight.
IMPORTANT! The PAV-AOM8C must to be connected to a AVB Switch.
Also a Savant AVB audio input device is required.
of 2
