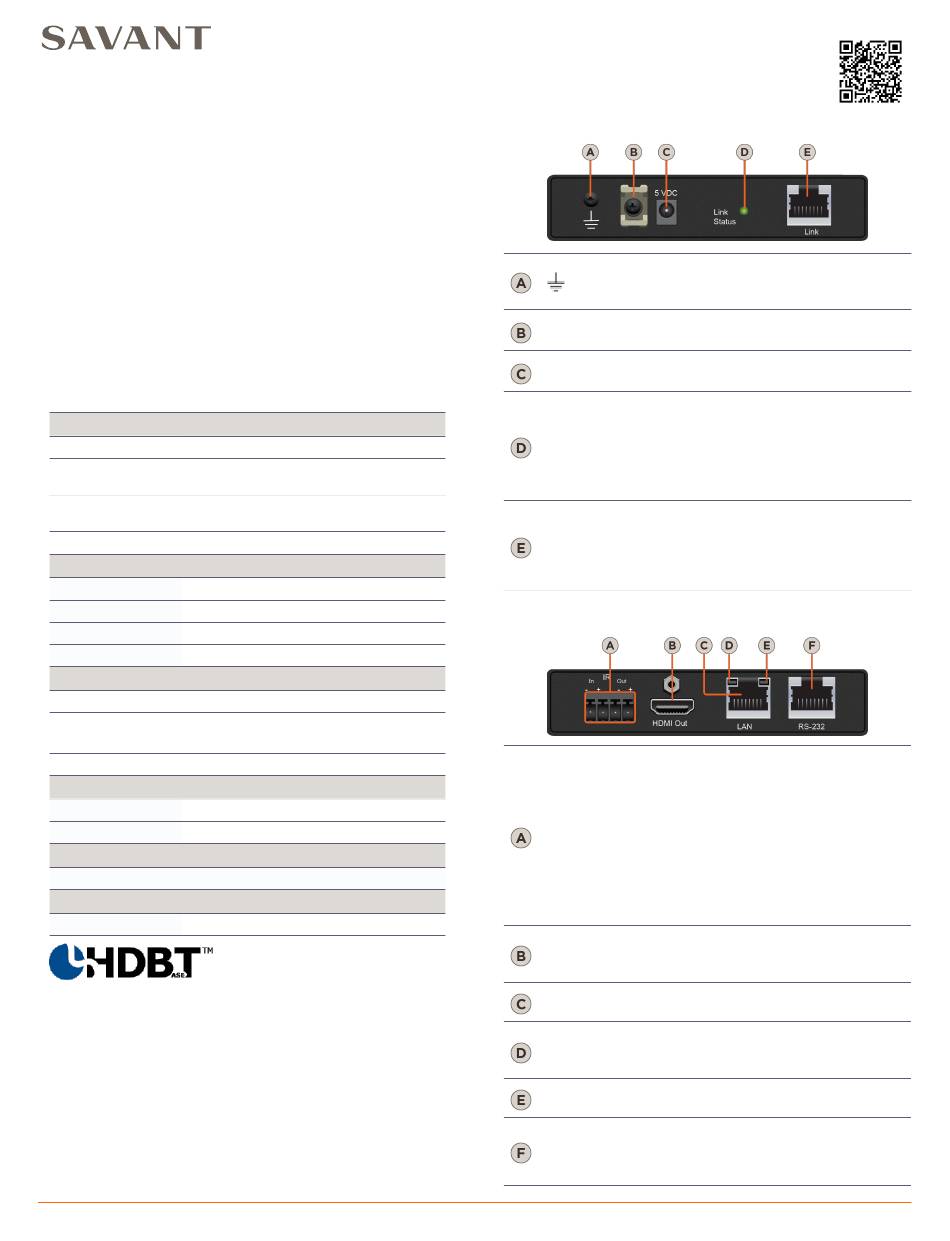

Savant HRX-SLN501 Quick Reference Manual

SmartLink HDBaseT™ Receiver
Quick Reference Guide
The Savant® HRX-SLN501 SmartLink receiver is HDBaseT™ 5Play™
compatible and receives audio and video, IR and RS-232 control,
Ethernet and Power from up to 328 ft (100 m) via a single Cat 5e/
6/7 cable. The start point can be a Savant HDBaseT transmitter,
SmartLink HDMI Matrix, or any device capable of transmitting
HDBaseT compliant signals.
Box Contents
(1) SmartLink HDBaseT™ Receiver (HRX-SLN501-00)
(1) Installation Kit (075-0156-xx):
(2) M3 x 4 mm Screws (039-0302-xx)
(1) Mounting Bracket (017-0872-xx)
(1) 4 in Cable Tie (014-0071-xx)
(1) 4-pin Screw Down Plug-in Connector (028-9395-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-
Humidity
condensing)
25 cubic feet per minute (CFM)
Cooling
recommended.
Maximum BTU 7 BTU/hr
Dimensions and Weight Dimensions and Weight
Height 0.94 in (2.39 cm)
Width 4.56 in (11.58 cm)
Depth 3.18 in (8.07 cm)
Weight Shipping : 1.35 lb (0.61 kg)
Power Power
PoH Power over HDBaseT (PoH)
5V DC 2.5A
Power Supply
(Optional)
120-230V AC 50/60 Hz
Maximum Power 10 Watts
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
Enclosure Enclosure
Metal enclosure with Savant's Design Signature, black Metal enclosure with Savant's Design Signature, black
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 5.2.2
HRX-SLN501-00 | 009-1025-04 | 150330 HRX-SLN501-00 | 009-1025-04 | 150330
Copyright © 2015 Savant Systems, LLC

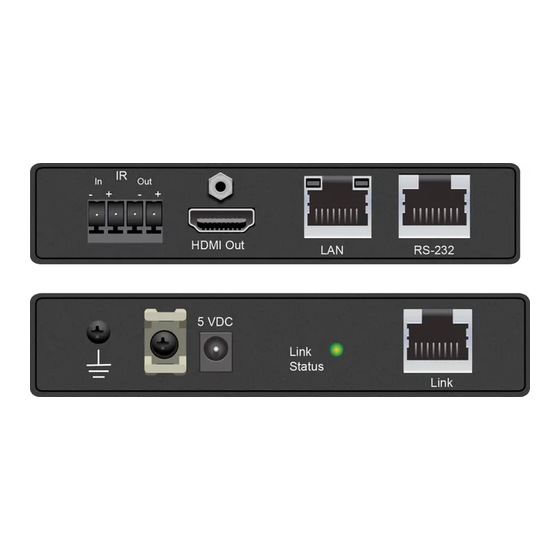

Front Panel
Ground Connector (Optional) - Used to connect
to a suitable ground reference when using
Power over HDBaseT (PoH).
Use with included cable tie to secure power
Cable Lance
supply connection.
5V DC 2.5A - Connect to optional power supply.
5 VDC
Not required when using PoH.
Green: Link with HDBaseT 5Play compatible
transmitter has been established.
Link Status Red: Power is present, but link to HDBaseT
LED 5Play compatible transmitter has not been
established.
Off: HRX-SLN501 is not receiving power.
8-pin RJ-45 female shielded
HDBaseT 5Play compatible - Connect to Link
Link
connection on SmartLink HDBaseT Transmitter,
SmartLink HDMI Matrix, or 3rd party HDBaseT
5Play compatible transmitter.
Rear Panel
IR In/Out
HDMI In
LAN
Off: Ethernet link is not established.
Link LED Green Solid: Ethernet link is established.
Green Blinking: Ethernet activity is occurring.
Off: 10 Mbps data rate
Data Rate LED
Green: 100 Mbps data rate
Used to transmit and receive serial binary data
to and from serial controllable devices located at
RS232
the end point. 8-pin RJ-45 female
See
1 of 2
4-Pin Screw Down Plug-in Connector
IR In: Receives IR Signals from a Savant or 3rd
party controller to send IR back to the start
point.
IR Out: Sends IR signals received from the start
point to control devices located near the
endpoint. Can be connected to an IR Flasher or
directly to a devices IR In.
See IR Wiring for important precautions
regarding IR functionality before making any
connections.
19-pin type A HDMI female
Supports HDMI and DVI (DVI/D Compatible)
DVI requires DVI to HDMI adapter (not included)
RJ-45 10/100 Base-T, auto-negotiating port with
Link/Activity LEDs.
RS-232 Wiring for pinouts.
45 Perseverance Way, Hyannis, MA 02601
savant.com
For Product Info
| 508.683.2500
