Savant PAV-VOM1C Quick Reference Manual

Savant® IP Video Single Output Receiver 4K UHD with Control (PAV-VOM1C)
Quick Reference Guide

Box Contents

(1) Single Video IP Receiver (PAV-VOM1C-xx)
(1) Installation kit
(1) Power Adapter
(2) Mounting Brackets
(4) M2.5 x 4mm screws (for mounting brackets)
(1) IR Emitter (4ft long)
(1) 4-pin Control Connector
(1) Quick Reference Guide (this document)

Specifications

Environmental
Temperature 30° to 105° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height 6.97 in (177.0 mm)
Width 5.91 in (150.0 mm)
Depth 1.00 in (25.4 mm)
Weight 1.8 lb (0.82 kg)
Power
Input Power 12V 2A DC
Nominal Power 16 W
Maximum Power 24 W
Video
HDR Supported
Supported 640x480
Formats 720x480
4
720x576
800x600
1024x768
1280x720
1 = at 24 Hz 3 = at 30 Hz
2 = at 25 Hz 4 = at 50 Hz
Audio
Supported Pass-though of all HDMI audio formats are
Formats supported.
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.8
PAV-VOM1C | 009-1612-02 | 180531
Copyright 2018 Savant Systems, LLC
5 5
1280x720 1920x1200
5 5
1280x1024 3840x2160
1
1920x1080 3840x2160
5 3
1920x1080 3840x2160
5 4
1920x1080 3840x2160
4 5
1920x1080 3840x2160
5 = at 60 Hz
CE C-Tick

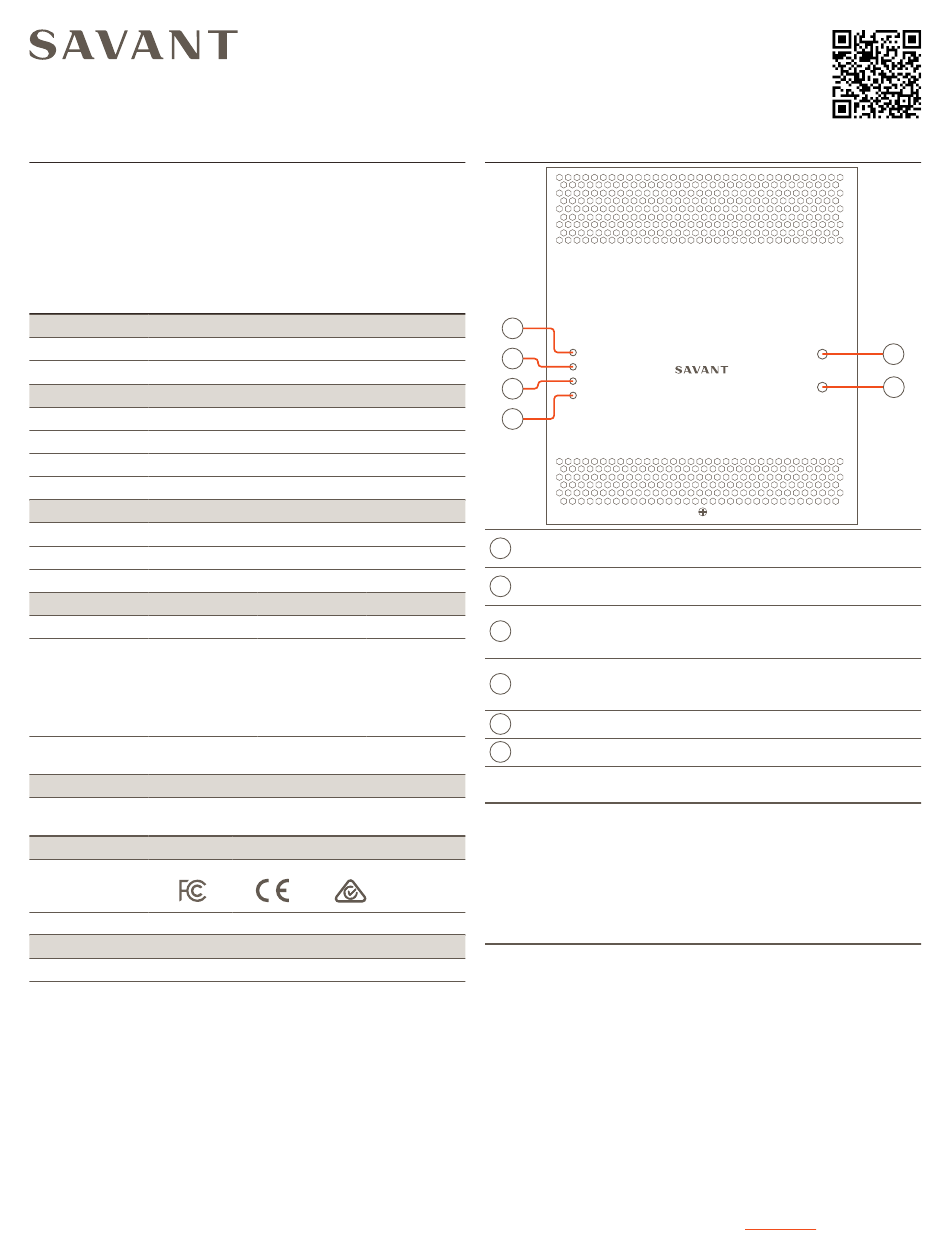

Top Panel

A
Power
B
Video
LinkTX
C
LinkRX
D
A
Power LED
B
Video LED
C
LinkTX LED
5
1
2
D
LinkRX LED
3
4
E
5
P1
F
RSVD

Network Configuration

To ensure that the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.

Network Requirements

Savant IP Video Devices require a Savant qualified 10G managed
switch. This switch must be configured for IP Video devices. For more
information on this see the Savant IP Video Network Configuration
Guide on the Savant Customer Community.
1 of 2
P1
RSVD
Off - Device is off. No power applied.
Blue - Main board is powered
Off - No video signal detected.
Blue - Video signal detected.
Off - No valid connection
Blue - Valid link
Blinking - Sending Ethernet Data
Off - No valid connection
Blue - Valid link
Blinking - Receiving Ethernet
Reserved for future use.
Reserved for future use.
