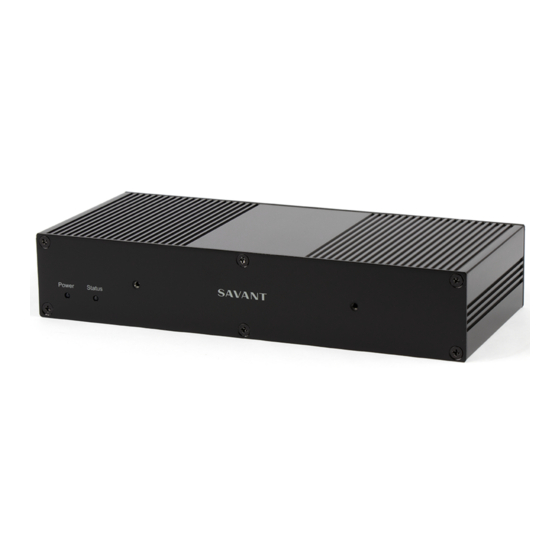

Savant® ProAV 16 Channel Audio Output IP Receiver with Control (PAV-AOM8C)
Quick Reference Guide

Box Contents

(1) 16 Channel Audio Output IP Receiver (PAV-AOM8C-10)
(1) Installation Kit (075-0195-xx)
(2) 3-pin Control Connector (028-9351-xx)
(1) 5V DC 3A Power Supply (025-0153-xx)
(1) Product Insert (009-19xx-xx)

Specifications

Environmental
Temperature 32° to 104° C (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)

Dimensions and Weight

Height 1.6 in (4.15 cm)
Width 8.5 in (21.50 cm)
Depth 3.7 in (9.33 cm)
Net: 1.4 lb (0.64 kg)
Weight
Shipping: 2.3 lb (1.05 kg)

Power

Input 5V DC 3A
Maximum 15 Watts
Power over
IEEE 802.3af
Ethernet (PoE)

Networking

Supported IEEE 802.1 AVB/TSN switches
Standard IEEE 802.3 Ethernet
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant Software da Vinci 8.10.1

Network Configuration

To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.

Network Requirements

The PAV-AOM8C requires a Audio Video Bridging (AVB) network.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
PAV-AOM8C | 009-1563-03 | 200110
Copyright 2020 Savant Systems, LLC
C-Tick
CE
1

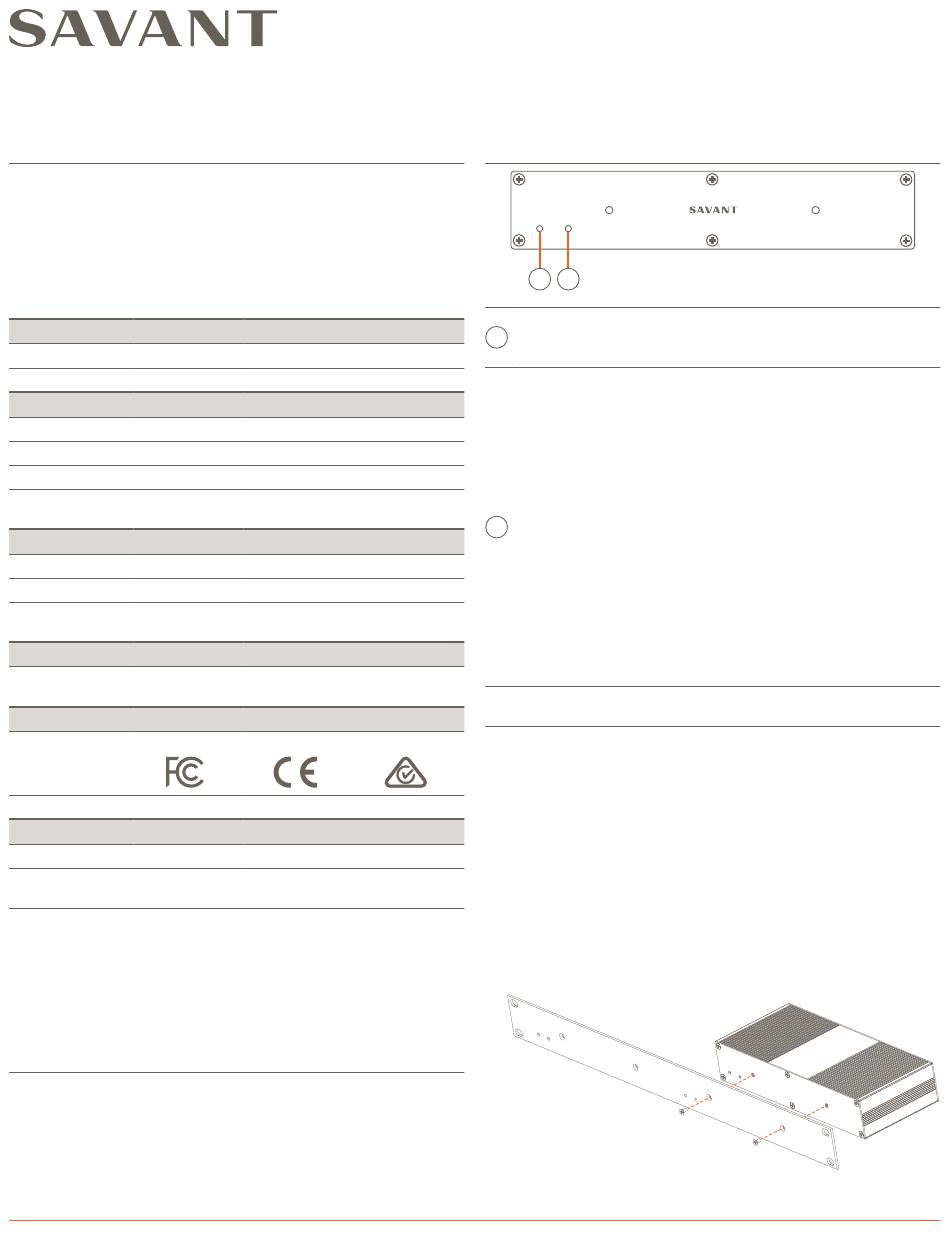

Front Panel

Power Status
A B
Green: System has power and is operating
A normally.
Power LED
Off: System is not receiving power.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Green: Host has established communications with
the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Red: Host has determined the firmware needs to
B
Status LED
be updated, but a problem occurred during the
process that will initiate a reset.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link-local IP Address and is connecting to the
host.

Installation

The PAV-AOM8C should be installed on a solid, flat, level surface. The
device will fit on a 1U rack shelf. The location should be dry, well
ventilated, and out of direct sunlight.
IMPORTANT! The PAV-AOM8C must to be connected to a AVB Switch.
Also a Savant AVB audio input device is required.

Rack

The optional RMB-PAVAM2F-xx or RMB-PAVAM2-xx allows two
devices to be mounted side by side. This rack is compatible with all
standard 19-inch National Electrical Manufacturers Association (NEMA)
rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way they just face different directions.
1. Align the bracket with the device's mounting points.
2. Attach using the screws provided with the bracket.
