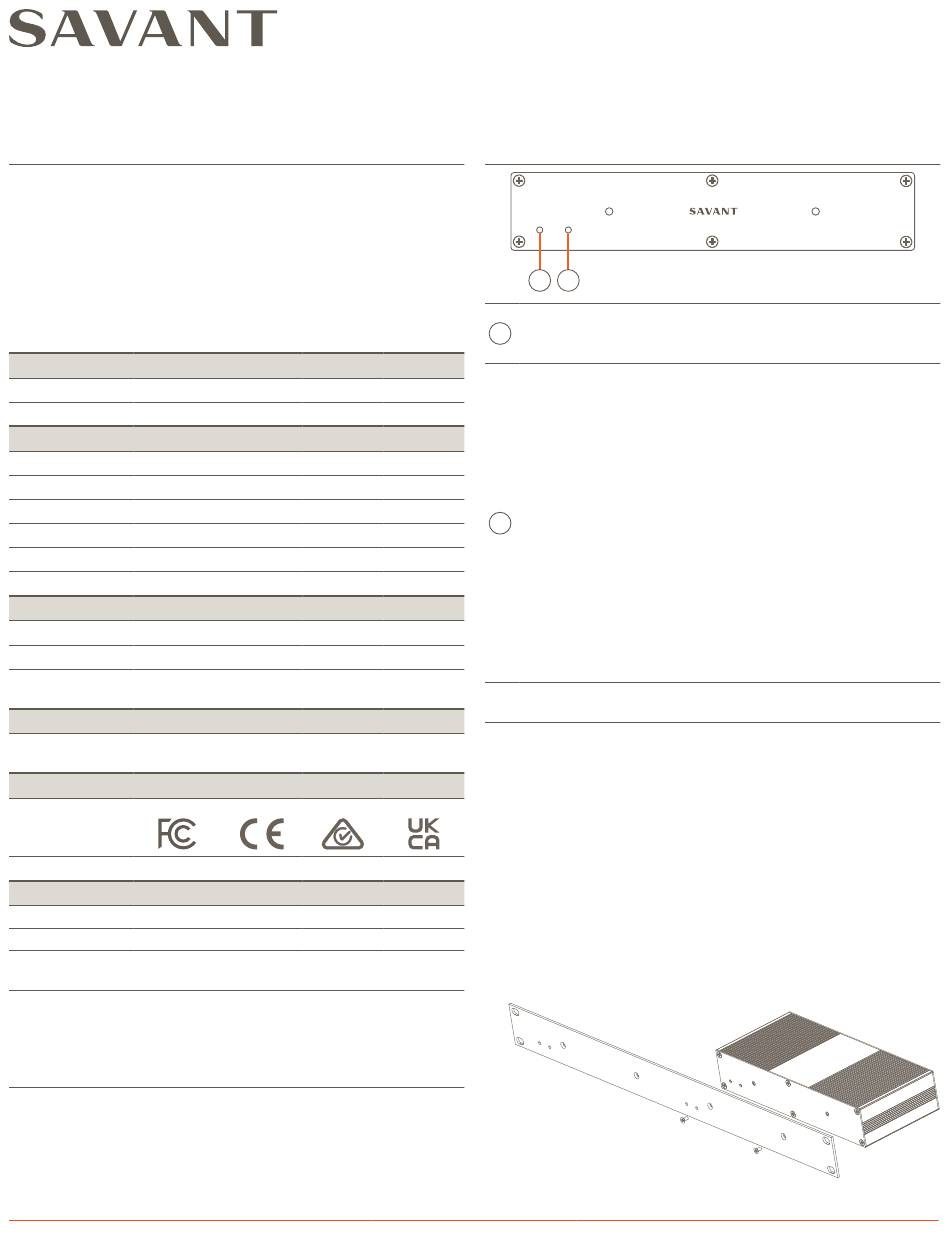

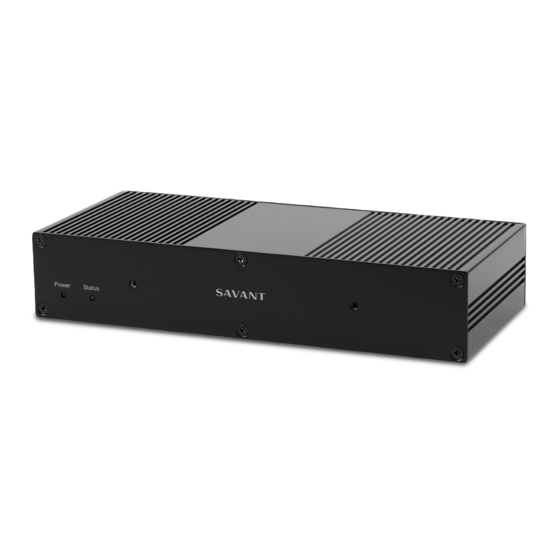

Savant® ProAV 16 Channel Balanced Audio Output IP Receiver
with Control (PAV-AOMBAL8C) Quick Reference Guide

Box Contents

16
Channel Balanced Audio Output IP Receiver
(PAV-AOMBAL8C-xx)
(1)
Installation Kit (075-0204-xx)
(8) Stereo Connectors (028-9347-xx)
(2) 3-pin Control Connector (028-9351-xx)
(1)
5V 3A Multi-Blade Power Supply (025-0223-xx)
(1)
Product Information and Regulatory Insert (009-1950-xx)

Specifications

Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 80% Relative Humidity (non-condensing)
Dimensions and Weight
Device
Height
1.6 in (4.15 cm)
Width
8.5 in (21.50 cm)
Depth
3.7 in (9.33 cm)
Weight
1.4 lb (0.64 kg)
Rack Space
1U
Power
Power Supply
5V DC 3A Multi-Blade
Maximum Power
15 watts
Power over
IEEE 802.3af (PAV-AOMBAL8C-10 Only)
Ethernet (PoE)
Networking
Supported
IEEE 802.1 AVB/TSN switches
Standard
IEEE 802.3 Ethernet
Regulatory
FCC Part 15
Safety and
Emissions
RoHS
Compliant
Supported Releases
PAV-AOMBAL8C-00
da Vinci 8.10.2 and higher
PAV-AOMBAL8C-10
da Vinci 9.4.4 and higher

Network Requirements

For networking guidelines and recommendations, refer to the Savant
Device Networking Guidelines available on the
Knowledge
Base.

Expansion

Savant AVB devices can be connected in a single system, providing a
virtual audio switch that can be configured to suit almost any need.
The maximum number of devices varies based on the active da Vinci
runtime.
PAV-AOMBAL8C Quick Reference Guide | 009-1605-03
Copyright © 2022 Savant Systems, Inc. | 220527
Shipping
2.2 in (5.59 cm)
12 in (30.48 cm)
7.3 in (18.54 cm)
2.3 lb (1.05 kg)
CE
C-Tick
UKCA
Savant Community

Front Panel

Power
Status
A
B
Green: System has power and is operating
A
normally.
Power LED
Off: System is not receiving power.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Green: Host has established communications
with the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with
the host.
Red: Host has determined the firmware needs to
B
Status LED
be updated, but a problem occurred during the
process that will initiate a reset.
Red Blinking: Embedded firmware is running,
but has not received a DHCP IP Address.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link-local IP Address and is connecting to the
host.

Installation

The PAV-AOMBAL8C should be installed on a solid, flat, level surface.
The device will fit on a 1U rack shelf. The location should be dry, well
ventilated, and out of direct sunlight.
IMPORTANT! The PAV-AOMBAL8C must to be connected to a AVB
Switch. Also a Savant AVB audio input device is required.

Rack

The optional RMB-PAVAM2F-xx or RMB-PAVAM2-xx allows two
devices to be mounted side by side. This rack is compatible with all
standard 19-inch National Electrical Manufacturers Association (NEMA)
rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way they just face different directions.
1. Align the bracket with the device's mounting points.
2. Attach using the screws provided with the bracket.
1
of
2
