Savant PAV-VOMVP1F2 Series Quick Reference Manual

Savant IP Video Single Output Receiver 4K with POE+
(PAV-VOMVP1F2/ PAV-VOMVP1CP2)
Quick Reference Guide
Box Contents
(1) IP Video Receiver (PAV-VOMVP1CP2-xx/PAV-VOMVP1F2-xx)
(1) SFP+ module (PAV-VOMVP1F2-xx only)
(1) Installation Kit (075-0210-xx)
(1) Power Adapter with International Clips (025-0195-xx)
(1) International Clips (CN, US, UK, EU & AUS)
(2) Mounting Brackets (071-1093-xx)
(4) M2.5 x 4mm screws (for mounting brackets) (039-0590-xx)
(1) IR Emitter (4ft long) (064-0442-xx)
(1) 3-pin RS232 Control Connector (028-0805-xx)
(1) Product Regulatory Statement (009-1950-xx)
Specification
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Device
Height 0.98 in (2.50 cm)
Width 8.46 in (21.50 cm)
Depth 5.51 in (13.99 cm)
Weight 1.65lb (0.75 kg)
Power
Input Power 12V 2A DC
PoE+ (IEEE 802.3at)
Nominal Power 16 W (PAV-VOMVP1F2-xx)
19 W (PAV-VOMVP1CP2-xx)
Maximum Power 36 W
Compliance
Safety and FCC Part 15
Emissions
RoHS Compliant
Supported Release
Software Release da Vinci 9.4.3 and higher
Supported Audio and Video Formats
Audio
Supported Pass-though of all HDMI audio formats are
Formats supported.
Video
HDR Supported
Dolby® Vision Supported
Supported
640x480
Formats
720x480
720x576
4
800x600
1024x768
1 = @ 24 Hz 3 = @ 30 Hz
2 = @ 25 Hz 4 = @ 50 Hz
PAV-VOMVP1F2-xx/PAV-VOMVP1CP2-xx QRG | 009-2059-00
Copyright © 2022 Savant Systems, Inc | 220907
Shipping
4.0 in (10.16 cm)
9.0 in (22.86 cm)
16.0 in (40.64 cm)
4.8 lb (2.17 kg)
CE C-Tick
1280x720 1920x1080
5 4 4
1280x720 1920x1080
5 5 5
1280x1024 1920x1080
5 5
1920x1080 3840x2160
5 1
1920x1080 3840x2160
5 3
5 = @ 60 Hz
Required Components
– Savant IP Video Transmitter
–
Savant System Host
– Savant qualified 10G Managed Network Switch
–
Savant User Interface
– Savant Development Environment (SDE) and Configuration Tools

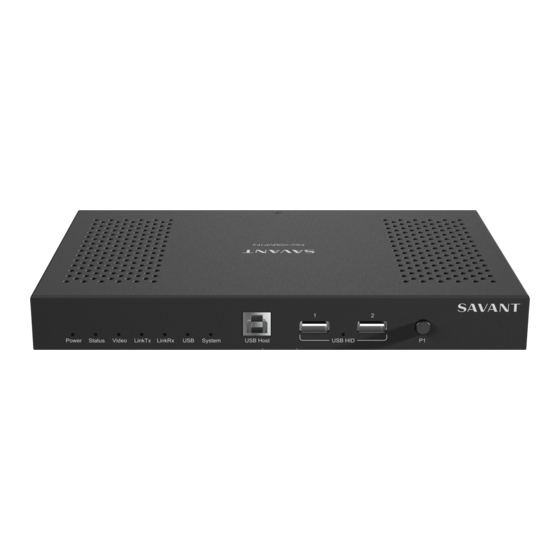

Front Panel
A B
Power Status
Item
Power LED
A
Status LED
B
Video LED
C
Link TX LED
D
Link RX LED Off - No valid connection
E
USB
F
UKCA
System LED
G
USB Host
H
USB HID
I
P1
J
Networking Guidelines
To ensure that the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: IP video device requirements and how to manage IP addresses
3840x2160
3 are available on the Savant Device Netwoking Guidelines on the Savant
Customer Community.
3840x2160
4
3840x2160
5
Additional Information
4096x2160
1 3
Refer to the following documents located on the Savant Customer
4096x2160
2 5
Community for additional information.
–
Savant IP Video Deployment Guide (009-1977-xx)
– Savant IP Video Network Configuration Guide (009-1552-xx)
– Savant IP Audio Deployment Guide (009-1571-xx)
– Savant Device Networking Guidelines
1 of 2
C D E F G
Video LinkTx LinkRx USB System
USB HOST
H
Description
Off - Device is off. No power applied.
Red - Main board is powered
Blue - Reset button is pressed when the device is
powered on
Blinking - Reset button has been released or the
device was powered on without holding the reset
button
Off - No video signal detected.
Blue - Video signal detected.
Off - No valid connection
Blue - Valid link
Blinking - Sending Ethernet Data
Blue - Valid link
Blinking - Receiving Ethernet Data
Reserved for future use.
Not Used and will remain in the OFF state.
Reserved for future use.
Reserved for future use.
Reserved for future use.
45 Perseverance Way, Hyannis, MA 02601
USB HID P1
I J
Savant.com | 508.683.2500
