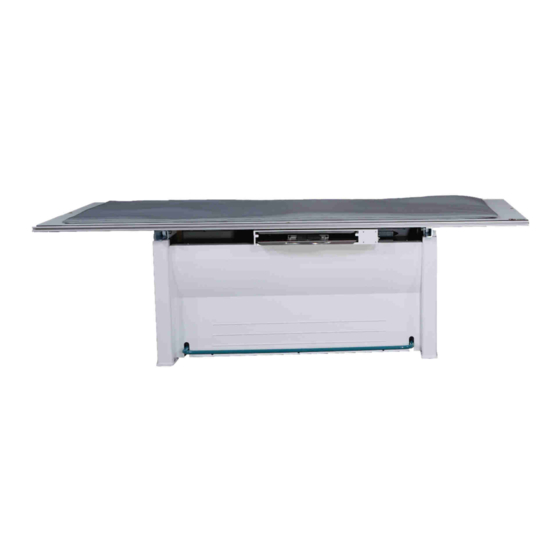

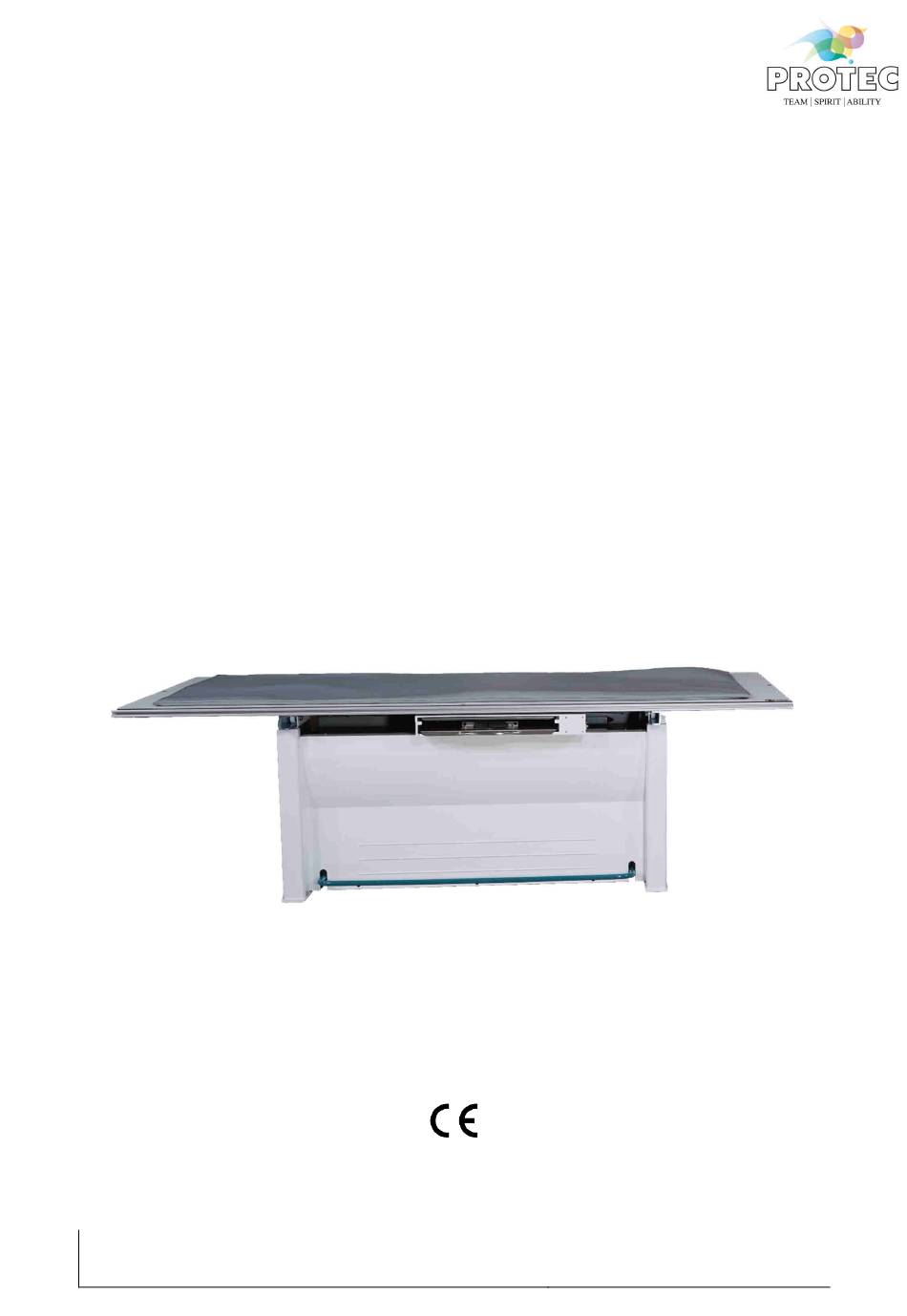

- Page 1 PROGNOST F X-ray system table Model/ID: 7041-5-87xx Instructions for use Ident. Nr. 5041-0-8002 Version: 4.0 PROTEC GmbH & Co. KG Issued: 2020-11-24 In den Dorfwiesen 14, 71720 Oberstenfeld, Germany Subject to alterations Telephone: +49 (0) 7062/92 55-0 E-Mail: protec@protec-med.com...
- Page 2 All sheets of this document contain proprietary and confidential information of PROTEC GmbH & Co. KG and is intended for exclusive use by current PROTEC GmbH & Co. KG customers. Copying, disclosure to other or other use is prohibited without the express written authorization of PROTEC´s law department.
-
Page 3: Table Of Contents
5.3.7 Applied Parts and parts which get handled like an application part ..........19 5.3.8 Disposal ....................................20 n/a ............................21 Technical Data ........................22 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 3 von 27... - Page 4 Description of symbols, labels and abbreviations ............24 Symbols ....................................... 24 Identification label..................................25 Labels ........................................26 Position symbols and labels ..............................27 Abbreviations ....................................27 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 4 von 27...
-
Page 5: Document Effectivity
Page 21 dimension chap. 3.2 2019-08-07 Renamed Chap. 8.2 Identification label updated 2020-08-11 Front page, Cap. 5.3.3 Maintenance updated 2020-11-24 Front page Model ID revised PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 5 von 27... -
Page 6: General Notes
PROTEC GmbH & Co. KG Customers. Assemblers and other Customers not employed by nor directly affiliated with PROTEC GmbH & Co. KG technical services are directed to contact the local PROTEC GmbH & Co. KG office before attempting installation or service procedures. -
Page 7: Product Description
3-field measuring chamber • Anti-scatter grid Accessories that can influence the EMC conditions • Network cable (note the max. cable length in the component documentation) PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 7 von 27... -
Page 8: Installation
As a component of a stationary basic diagnostic X-ray system PROGNOST F is intended to position and support a patient during a variety of routine planar procedures requiring a diagnostic X- ray system in human medicine. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 8 von 27... -
Page 9: Indication And Contraindication
Suitable user groups could include the following: Radiologist, radiology assistants, radiology technicians, doctors and other medically trained personnel. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 9 von 27... -
Page 10: Conformity
In den Dorfwiesen 14 | 71720 Oberstenfeld Telephone: +49 (0) 7062 – 92 55 0 Fax: +49 (0) 7062 – 92 55 60 E-Mail: protec@protec-med.com Internet: www.protec-med.com PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 10 von 27... -
Page 11: Safety Instructions
Adjustments and calibrations that are not described within the user manual must be made with the aid of the technical description of the device by the PROTEC GmbH & Co. KG customer service department or a PROTEC GmbH & Co. KG authorized service technician. -
Page 12: General Safety Notice
Operating of the radiographic system In case of functional disturbance, e.g. due to electromagnetic interference, the PROGNOST F shall no longer be used and the customer service department of PROTEC or a service company authorized by PROTEC should be informed. -
Page 13: Pinching And Collision Hazards
The PROGNOST F is not designated for use within areas with explosive hazards. 2.1.6 Interaction with external devices Unwanted interaction with external devices are not known. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 13 von 27... -
Page 14: Control Elements And Device Displays
7 Compression band (accessory, see Figure 3-2) Figure 3-1 CAUTION! Before the patient gets on and off, move the table top (Fig.3-1/2) to the front position. Figure 3-2 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 14 von 27... -
Page 15: Bucky From The Protec Series
(Fig. 3-3; 4) to the appropriate cassette size. The movement range of the Bucky is 545 mm. Figure 3-3 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 15 von 27... -
Page 16: Handling / Operation
Position the table top as centred as possible (rear/front). o The patient should ascend and descend in the middle of the table top (green arrow). PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 16 von 27... -
Page 17: Function Of The Prognost F
The PROGNOST F starts automatically when the system is switched on and is not started separately. The PROGNOST F switches off automatically when the system is switched off and is not switched off separately. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 17 von 27... -
Page 18: Safety And Maintenance
Should explosive gas and / or vapors be created through the use of the chosen disinfection agents, the unit can only be switched on when the gas/vapors have 100% dispersed. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 18 von 27... -
Page 19: Check-Up And Maintenance
Technical Description in Chapter 3. In the event that scheduled maintenance is not performed, PROTEC GmbH & Co. KG will not be responsible for damages incurred by the user or third parties if such damages are the result of improper or omitted maintenance. -
Page 20: Disposal
Please contact your contractual partner or the service company, or a company specialized for disposing the components. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 20 von 27... -
Page 21: N/A
PROGNOST F 5041-0-8002 Instructions for use PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 21 von 27... -
Page 22: Technical Data
PROGNOST F 5041-0-8002 Instructions for use Technical Data Dimensions PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 22 von 27... -
Page 23: Movement And Dimension
The attenuation value has to be determined at the technical specifications. If the limits can’t be kept please inform PROTEC immediately. If additional accessories are use it has a negative influence to the quality of the X-ray image. -
Page 24: Description Of Symbols, Labels And Abbreviations
Do not exceed the maximum indicated weight Do not exceed the maximum indicated weight Table top movement for recording position Table top longitudinal movement Table top transverse movement PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 24 von 27... -
Page 25: Identification Label
With this symbol we point out that Usage instructions of the corresponding product is on out Homepage www.protec-med.com/download Notes on disposal; WEEE , Waste of Electrical and Electronic Equipment Protective ground (Earth) Identification label PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 25 von 27... -
Page 26: Labels
(Composite-fibre table top). Maximum allowable Patient weight (distributed load) for the table top (Carbon table top). Labels on the front plate x-ray system table Company label PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 26 von 27... -
Page 27: Position Symbols And Labels
Hectopascal German Industry Standard European Standard CE-Mark Hertz Duty cycle Ampere Serial number V AC Volt (alternating current) V DC Volt (direct current) inch Inches PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 27 von 27...
