<TIIS Specifications>
Technical Data
Protection Method
Explosion-proof Class
Ambient Temperature
Electrical Data
Applicable Standard
Installation
Hazardous Location
(Zone 1)
Gas Detector(SD-1GH)
＋
－
Signal
Flameproof enclosure
Ex d IIC T5 X
-20°C to +53°C
Supply voltage: DC24V 130 mA
Analog signal output: DC24V 25 mA
Contact output (contact capacity): AC250V 0.5A (load resistance)
JNIOSH-TR-NO. 43(2008)

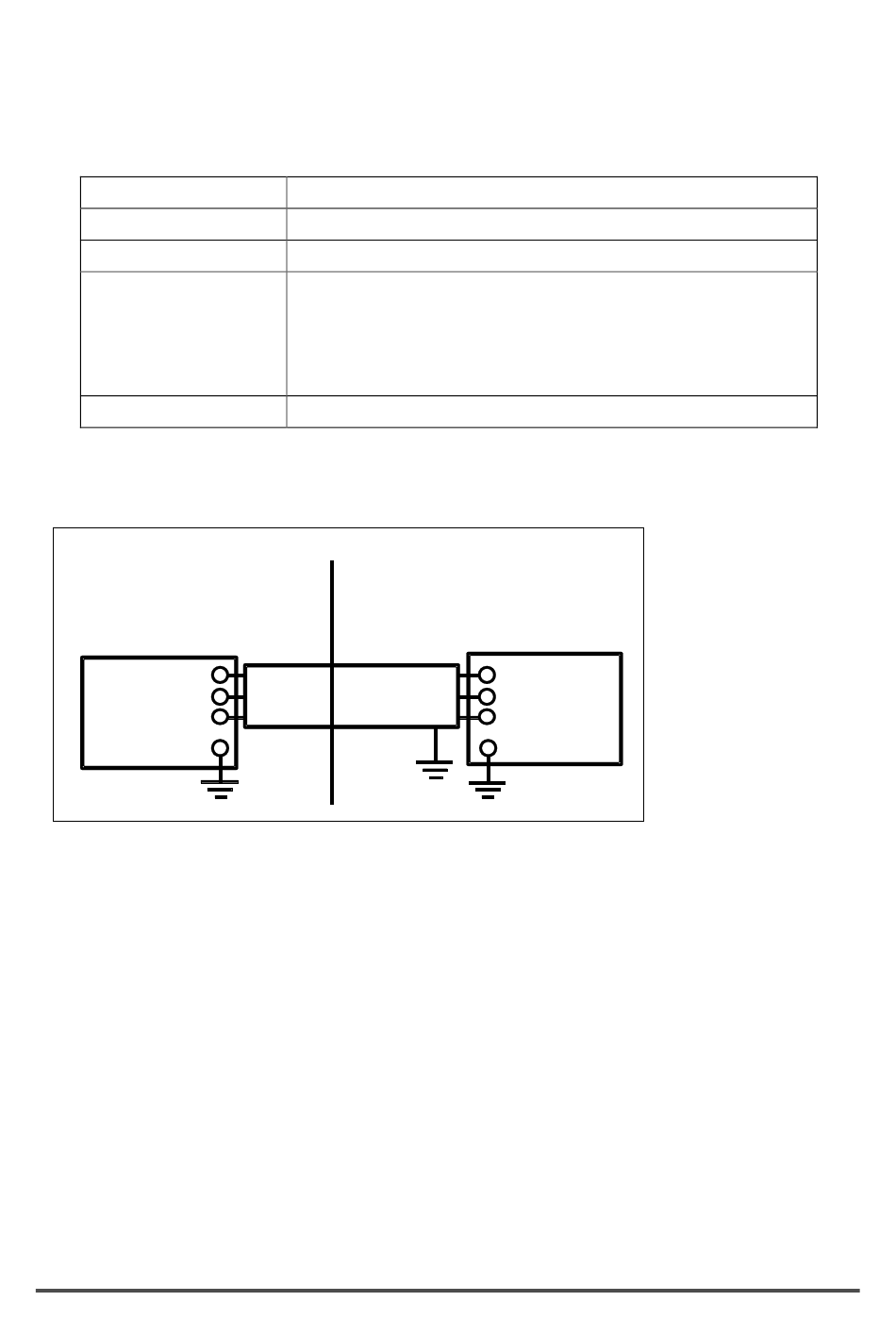

Installation Diagram
Nonhazardous Location
←
→
CVVS Cable
- 9 -
DC30V 0.5A (load resistance)
Indicator
＋
－
Signal
SD-1GH
