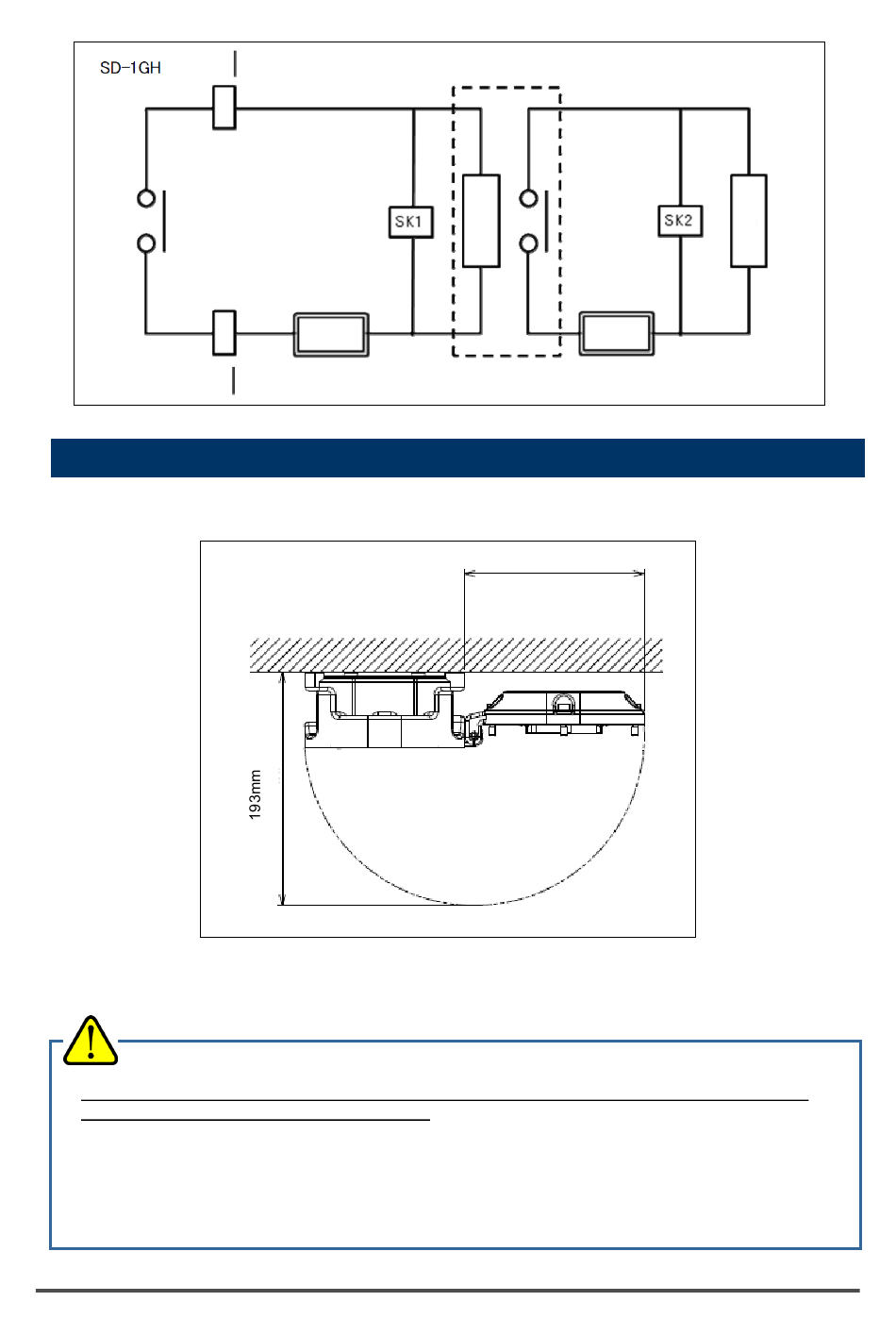

Coil Load
Power
Power
supply
supply
Alarm contact
External relay
(low voltage relay) *SK1, SK2: Surge absorbing parts

4-4. How to Install

<Installation Dimensions and Maintenance Space>
150mm
.
1. Attach the detector to the mounting surface using four M5 screws.
CAUTION
Do not install the detector in a place where maintenance of the detector cannot be performed or
where handling the detector involves dangers.
Regular maintenance of the detector must be performed.
Do not install the detector in a place where the machinery must be stopped when maintenance is
performed, where parts of the machinery must be removed to perform maintenance, or where the
detector cannot be removed because tubes or racks prevent access to it. Do not install the detector
in a place where maintenance involves dangers, for example, near a high-voltage cable.
SD-1GH
