World's Smallest and Lightest
4 Gas Monitor

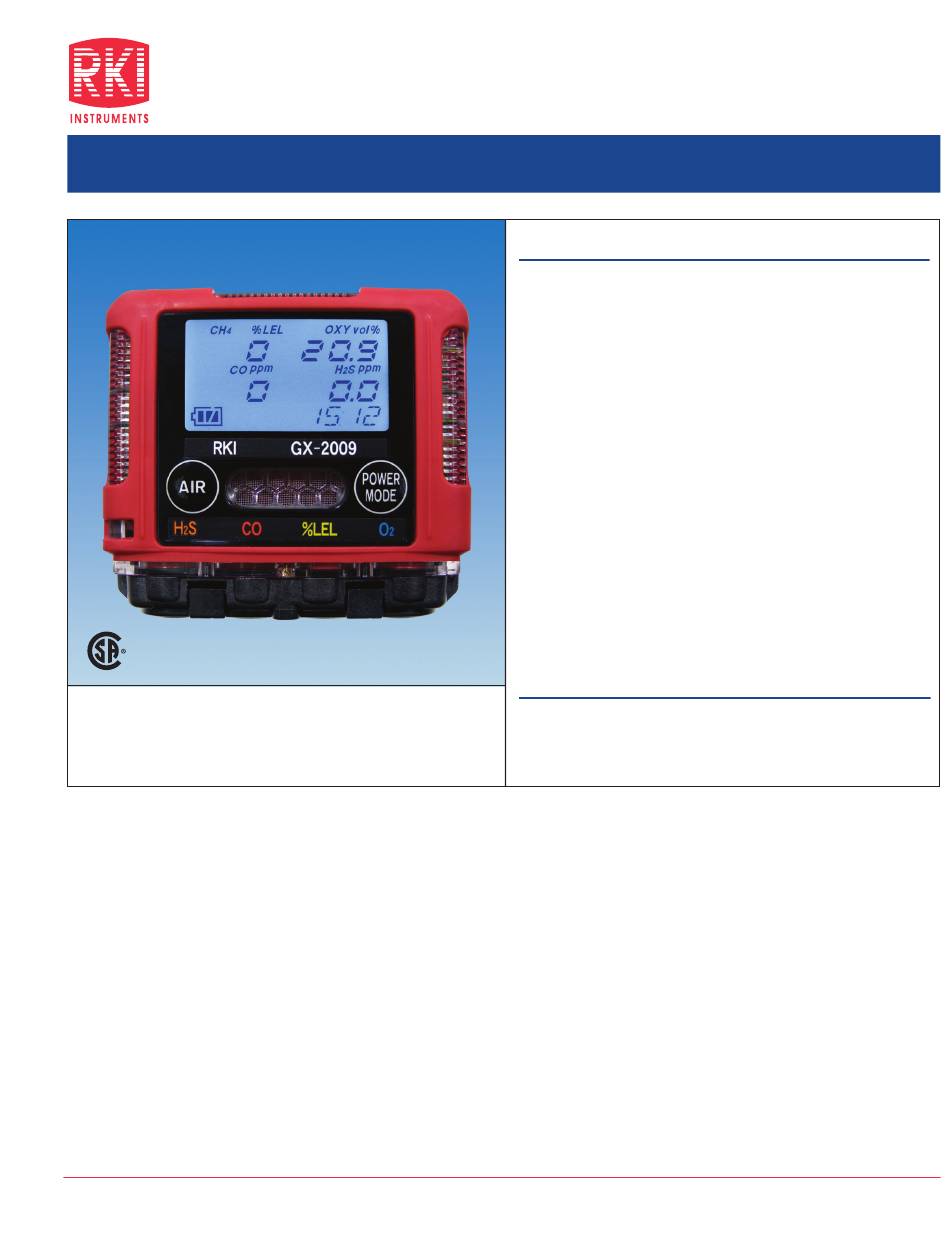

RKI is proud to offer the smallest and lightest 4-gas monitor in the world, the GX-2009. Weighing only 4.6 ounces, it fits
in the palm of your hand (2.75" H x 2.95" L x .98" D). The GX-2009 simultaneously monitors and displays combustibles,
oxygen, carbon monoxide, and hydrogen sulfide. The GX-2009 represents the latest evolution of gas detection technology.
Advancements include dual audible alarm ports and alarm LED's on 3 sides of the instrument, so that alarm conditions
are obvious from multiple perspectives especially in high noise environments. Other features include a water resistant and
dustproof design with IP 67 rating, an impact resistant rubber over-mold body that is RFI resistant, and a large capacity
data logging system included as standard.
Other standard features are vibration alarm, auto-calibration, calibration and bump test lock out or reminder control, STEL /
TWA readings, peak hold, auto backlighting at alarm on a large LCD display, and it even tells the time! All of these controls
and features are operated through 2 simple glove friendly buttons. The NiMH battery set will operate for 20 hours and will
fully charge in 3 hours.
A huge capacity data logging function is a standard feature on all GX-2009 instruments. The data logging software will store
up to 100 calibration records and is Windows XP, 7, 8, and 10. The GX-2009 is also functional with the SDM-2009 single
calibration station and the Data Cal 2000 instrument maintenance system.
The GX-2009 is designed around RKI's compact and proven sensors, utilizing catalytic combustion, electrochemical and
galvanic sensor technologies. Each miniaturized sensor is manufactured with the same high quality control that has made
RKI sensors and instruments the most reliable and long lasting monitoring devices in the industry.
RKI Instruments, Inc. • 33248 Central Ave. Union City, CA 94587 • Phone (800) 754-5165 • (510) 441-5656 • Fax (510) 441-5650
PERSONAL FOUR GAS MONITOR
Actual Size
World Leader In Gas Detection & Sensor Technology
www.rkiinstruments.com
GX-2009 Model
Features
• Simultaneous detection of 4 gases
LEL, O2, H2S & CO
°
• Smallest / Lightest 4 gas monitor on the market
2.7" H x 3" W x 1" D, 4.6 oz.
°
• Dual audible alarm ports (95 db @ 30 cm)
• 3 visual alarm LED's
• Vibration alarm
• IP-67 Water resistant/dustproof design
• Calibration and bump test lock out or reminder controls
• Large capacity data logging standard
8 alarm trends
°
Log time range of 10 to 300 hours
°
100 calibration records stored
°
• 20 hours of operation (NiMH batteries)
• Large LCD display screen
• Automatic backlighting at alarm
• Impact resistant rubber over-mold body
• STEL and TWA readouts
• Intrinsically safe, CSA, C/US classified IECEx / ATEX
approved (optional MSHA version available)
• 2 year warranty
Applications
• Personal monitoring
• Confined spaces
• Refineries/petrochemical
• Utilities
P027-1809/3000
• Oil and Gas
• Water/wastewater
• Fire services
• Construction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX-2009 and is the answer not in the manual?

Questions and answers

Related Manuals for RKI Instruments GX-2009

Summary of Contents for RKI Instruments GX-2009

  • Page 1 • Construction RKI is proud to offer the smallest and lightest 4-gas monitor in the world, the GX-2009. Weighing only 4.6 ounces, it fits in the palm of your hand (2.75” H x 2.95” L x .98” D). The GX-2009 simultaneously monitors and displays combustibles, oxygen, carbon monoxide, and hydrogen sulfide.
  • Page 2 Product CD (includes datalogging software) ........................71-8002RK Belt Clip ................................... 13-0117RK Padded carrying case for GX-2009 and accessories....................20-0112RK-01 Charging station, 115/220 VAC powered for 2, 3, 4, or 5 instruments..............49-2170RK-XX Charging station with 12 VDC power supply and vehicle adapter plug ................49-2171RK 12 VDC adapter with vehicle plug (does not include charger base) ................

  • Page 3: Performing A Fresh Air Adjustment

    Quick Reference Guide For Model GX-2009 Turn on and adjust the GX-2009 gas monitor in a known fresh air area. 1. Turning the GX-2009 On a. Press and briefly hold down the POWER MODE button. The backlight will turn on and activate all LCD segments. Release the button when you hear a beep. i. If Cal C-LIMIT is displayed, unit is past due for calibration. Press and release the POWER button to confirm and continue use. ii. If FAIL C-LIMIT is displayed, unit is past due for calibration and cannot be used without calibrating. b. The instrument will go through a brief warm up showing date, number of days to next calibration, time of day, battery power, alarm latch setting, full scale values for all channels, warning alarm setting and high alarm setting for all channels, STEL alarm set point for H2S and CO and TWA alarm set point for H2S and CO channels. c. If the battery level is low or the battery icon is flashing and the unit’s buzzer sounds, recharge the GX-2009 before use.

  • Page 4: Sensor Failure

    7. Resetting Alarms a. If the GX-2009 alarms are set up to latch, press and release the POWER MODE button to reset alarms once alarm condition has cleared. b. If the GX-2009 alarms are set up for self-resetting, the alarms will automatically reset once the alarm condition has cleared. 8. Turning off the GX-2009 a. Press and hold the POWER MODE button. b. TURN OFF will be displayed and the instrument will beep three times before shutting down. 9. Consult the operator’s manual for further information. RKI Instruments, Inc. 33248 Central Ave, Union City, CA 94587 Phone (510) 441-5656 • (800) 754-5165 • www.rkiinstruments.com 081003/1000 PN 71-0160RK Rev P1...
  • Page 5 Case, rear, GX-2009 OS-BM2 Sensor, Oxygen (O2) for GX-2001/ GX-2003/GX-2009/GasWatch 2/OX-01 10-1098RK Screw with split lock and flat washers for alligator or belt clip, GX-2009, 1 each NC-6264A Sensor, LEL, for GX-2001/GX-2003/ GX-2009/GP-01 10-1104RK Screw for case or sensor retainer, M2 x...
  • Page 7 GX-2009 Service Training Module •1 Scope • Calibration • Maintenance – Inlet filter/Battery replacement – Scrubber/Sensor Replacement – Internal component replacement • Modes – Display/User Setup/Factory • Common troubleshooting techniques...

  • Page 8: Calibration Mode

    GX-2009 Calibration •3 Calibration Mode • Date: Set the date and time • AIR CAL: Perform a fresh air adjustment • AUTO CAL: Perform a span adjustment (all channels simultaneously) • ONE CAL: Perform a span adjustment (one channel at a time) •...

  • Page 9: Accessing Calibration Mode

    Accessing Calibration Mode • Begin with the GX-2009 off. • Press and hold the AIR button, then press and hold the POWER MODE button. When you hear a beep, release the buttons. •5 Auto Calibration • Auto Calibration adjusts all active sensors simultaneously.
  • Page 10 – Allow gas to flow for two minutes or until the readings stabilize. – Press and release the POWER button. – The GX-2009 will attempt to calibrate all four sensors. If calibration is successful, PASS will be displayed. If not FAIL will be displayed.

  • Page 11: Maintenance

    • Auto Cal PASS – Turn the gas regulator off. – Remove the calibration adapter plate. – The GX-2009 will indicate AUTO CAL. – Press the AIR button until START is displayed then press the POWER button to return to normal operation.
  • Page 12 Filter Maintenance • Scrubbers are used to protect the LEL and CO sensor from H2S exposure. • Replacement of the scrubbers depends on how often the instrument is exposed to H2S. • To replace the scrubbers, use a small Philips screwdriver to remove the two sensor cap screws Filter Maintenance...
  • Page 13 Filter Maintenance • Remove sensor cap to gain access to sensors. Filter Maintenance • Using a small flat blade screwdriver, remove sensor cover retainer exposing waterproof sensor cover and scrubber filters.

  • Page 14: Filter Maintenance

    Filter Maintenance • Sensor filter kit: P/N 33- 7117RK-01, – Includes: 1 charcoal scrubber (33-7102RK, 5/pk) and 1 H2S scrubber (33-7114RK, 5/pk), 1 waterproof sensor cover (33- 0172RK). Replace when white scrubber becomes discolored. Sensor Replacement • O2 Sensor P/N OS-BM2 •...
  • Page 15 • Note alignment tabs on H2S and CO sensor and holder. Sensor Replacement • After replacing a sensor, snap sensor cover back in place and secure retaining screws. • Always calibrate the GX-2009 after replacing a sensor.
  • Page 16 • Unscrew the three Phillips screws to remove the alligator clip. • Replacement Alligator Clip: P/N 13-0119. Disassembly • Turn the GX-2009 off. • Using a small Phillips screwdriver remove the four screws securing the case halves together. • Grasp the case and...
  • Page 17 Disassembly • Internal Components – Sensor PCB – NiMH batteries – Main PCB – Buzzer Front Case & Components • Body case, front: P/N 21-1880RK • Gasket for buzzer hole: P/N 07-6018RK • Vibration motor: P/N 30-1054RK • Flexible PCB: P/N 24-5000RK •...
  • Page 18 Rear Case • Body case, rear P/N 21-1881RK, buzzer included. • Gasket (10 pack) P/N 07-6017RK Batteries • NiMH Batteries – 49-1609RK (2 ea) – Average life: 2 years – Simple to replace...
  • Page 19 Sensor PCB Assy. • Sensor Case with PCB P/N 21-1883RK. • Sensor PCB connected to Main PCB by Flexible Printed Circuit Board P/N 24-5000RK- Take care to unplug flexible PCB before removing Sensor Case or damage to flexible PCB will result. Flexible PCB •...

  • Page 20: Main Pcb Assembly

    Main PCB Assembly • P/N 57-2052RK • Has 1.55 volt silver oxide battery to maintain memory – Replacement battery P/N 49-1050RK LCD Assembly • LCD (P/N 51-1119RK) is keyed for easy installation • Ribbon cable has built in connector that is easily unplugged from the main PCB...

  • Page 21: User Setup Mode

    Display Mode From Normal Operation, press POWER MODE button to cycle through • PEAK: Peak sensor readings – This is since the unit has been on; these reset once unit turned off then back on • STEL: short term exposure limit since turning unit on (CO/H2S only) –...
  • Page 22 User Setup Mode • If password is set to on, then 0000 PASSWORD will be displayed – Enter password – Backdoor password is 9002 • If password is off, then DATE will be displayed •31 User Setup Mode • DATE •...

  • Page 23: Factory Mode

    Factory Mode • With unit turned OFF, press and hold the AIR button, then press and hold the POWER MODE button. Continue to hold buttons. • Release after you hear 3 beeps • The display will indicate 0000 – Enter PASSWORD 1994 Factory Mode •...

  • Page 24: Common Troubleshooting Techniques

    Common troubleshooting techniques • Fail cal • Cal interval not reset – Gas expired - Old sensor – Replace memory retention battery – Old filter - Auto cal value • Batteries won’t charge – Correct regulator • Clock won’t reset / Fail –...
  • Page 25 What will happen to the GX-2009 if the user performs a "Default?" ______________________________________________________________________ ______________________________________________________________________ You need to calibrate a GX-2009 and you only have test gas with the following components, 50% LEL Methane, 50 ppm CO, 25 ppm H2S, 20.9% O2 balance N2. Can you perform a Auto Cal?
  • Page 26 ______________________________________________________________________ ______________________________________________________________________ You receive a GX-2009 and the customer wants it calibrate to Hexane on the LEL channel. What do you need to do before calibrating? ______________________________________________________________________ Why does is the CO sensor scrubber black and what is its purpose? ______________________________________________________________________ RKI Instruments, Inc.
  • Page 27 ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ RKI Instruments, Inc. * 33248 Central Ave. * Union City CA 94587 * Rev. A...
  • Page 28 ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ RKI Instruments, Inc. * 33248 Central Ave. * Union City CA 94587 * Rev. A...

Table of Contents
