TC-1302-IP
Rev A, Apr 2017
www.commscope.com
Contents
1
Routing 250µm with overtubing
on BOTTOM TRAY
1.1
Remove plastic cover on splice island.
1.2
Open bend control cover and FACT back lid.
Splice/Patch: 250µm with overtubing and patch cords
Patch/Patch: Pigtail to pigtail
1
Routing 250µm with overtubing on BOTTOM TRAY
2
Routing 250µm with overtubing on TOP TRAY
3
Routing patch cords on BOTTOM TRAY (right side)
4
Routing patch cords on TOP TRAY (right side)
5
Routing patch-patch on BOTTOM TRAY (left side)
6
Routing patch-patch on TOP TRAY (left side)
1.3
1.4
1
FACT Cable Routing
I N S T A L L A T I O N I N S T R U C T I O N

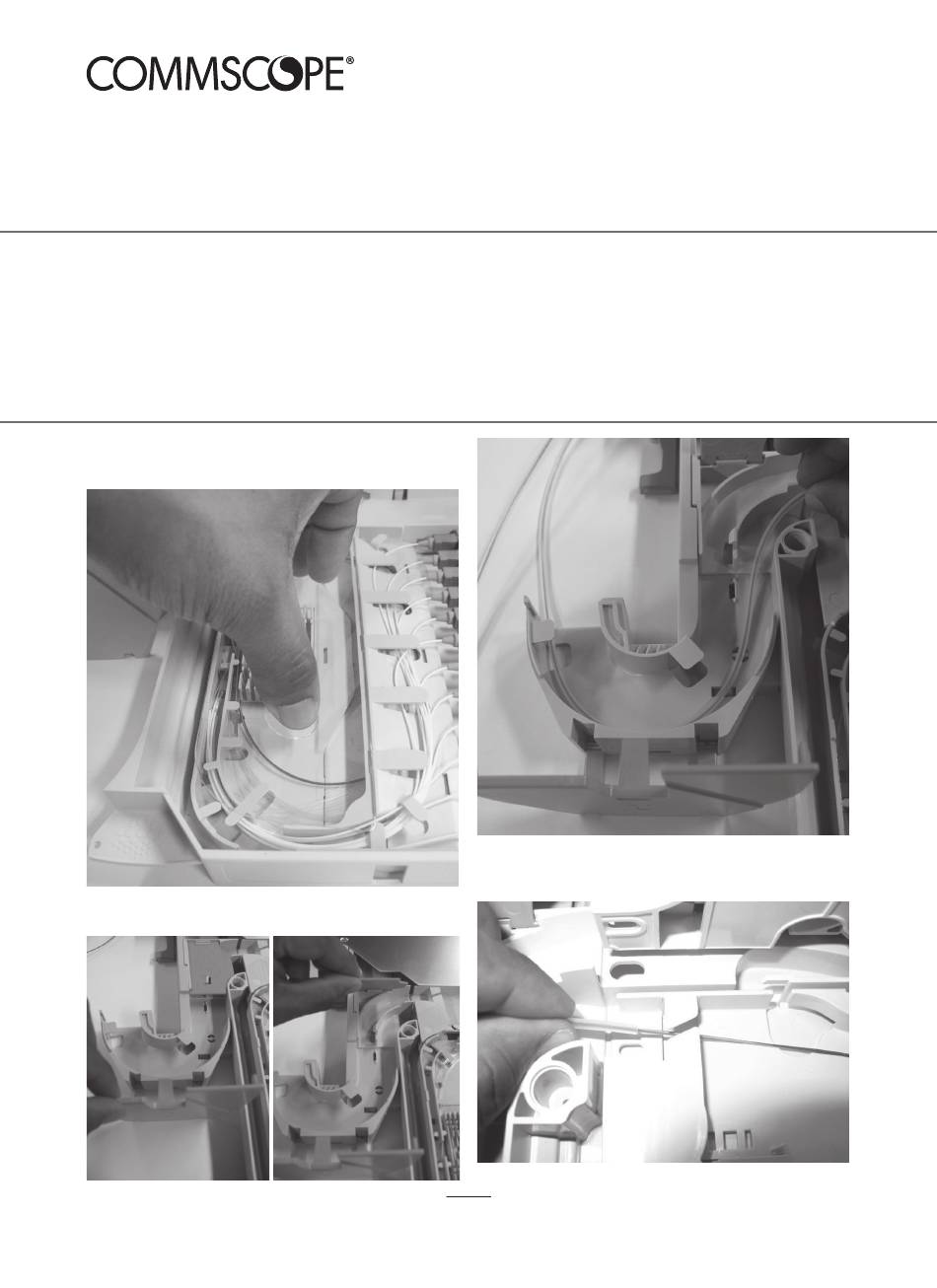

Guide overtubing into bend control. (Refer to cable
attachment guide)
Guide tubing through channel of the defined tray.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FACT and is the answer not in the manual?

Questions and answers

Related Manuals for CommScope FACT

Summary of Contents for CommScope FACT

  • Page 1 Routing patch-patch on TOP TRAY (left side) Routing 250µm with overtubing on BOTTOM TRAY Guide overtubing into bend control. (Refer to cable attachment guide) Remove plastic cover on splice island. Guide tubing through channel of the defined tray. Open bend control cover and FACT back lid.
  • Page 2 Route fibers into the splicing tray as shown and check all fibers are routed under the containment lips. Carefully close FACT back lid and bend control cover.
  • Page 3 (SC connector type). For LC connector types, guide 6 patch cords on each bend control (not shown in picture). Open bend control cover and FACT back lid. Correctly guide patch cords through channel on patch island. Install connector on bottom (position 12) and go to the top...
  • Page 4 Repeat everything from point 3.2 till 3.6 Correctly guide overtubing into bend controls. Guide patch cords through channels of bottom tray. Carefully close FACT back lid and bend control cover. Correctly guide patch cords through channel bend control. Guide patch cord through trumpet.
  • Page 5 Routing patch cords on BOTTOM TRAY (Left Side) Open bend control cover and FACT back lid. Guide 3 patch cords in case of SC and 6 patch cords in case of LC on each bend control as shown in the pictures.
  • Page 6 Repeat everything from point 5.1 till 5.6 Guide patch cords through channels of bottom tray. Correctly guide over tubing into bend controls. Carefully close FACT back lid and bend control cover. Correctly guide patch cords through channel bend control. Guide patch cord through trumpet.
  • Page 8 © 2017 CommScope, Inc. All rights reserved. web at www.commscope.com All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. For technical assistance, customer service, or to report any This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to missing/damaged parts, visit us at: CommScope products or services.
