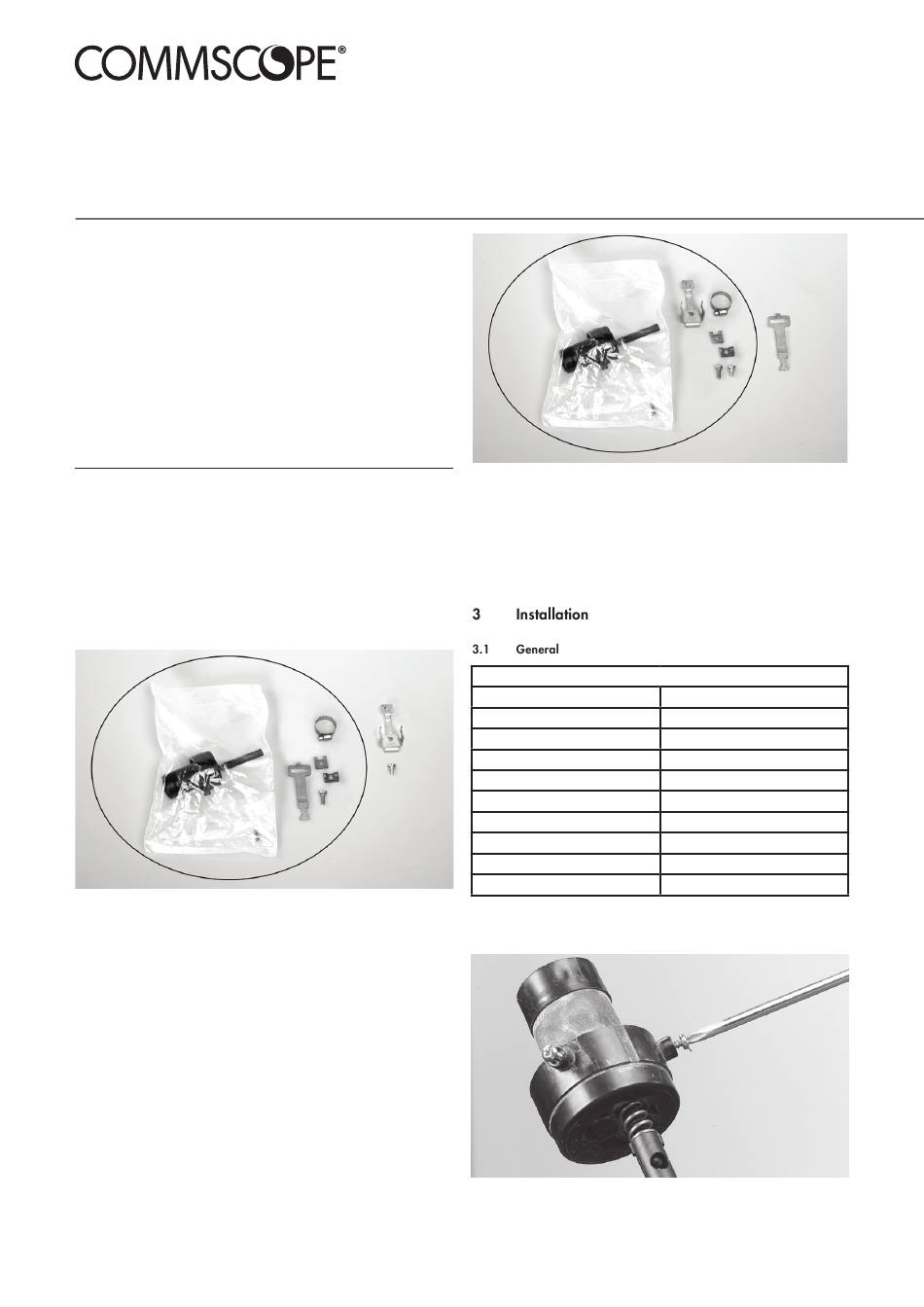

CommScope FIST-RSKG-1 Installation Instruction

TC-907-IP
Rev C, November 2018
www.commscope.com
Contents

1 General

2 Kit contents

3 Installation

3.1 General
3.2 FIST-GCO2-BX
3.3 FIST-GCO2-FX
1 General
This kit is used to install 1 drop cable of 11 to 14 mm diameter in a
new unused round port of the FIST-GCO2-BX and FX.
Comment: depending on outside conditions, some oil bleed-out may
occur. This will not affect in any way the sealing performance.
2 Kit contents
Kit content FIST-GCO2-BX6
CX5496-000
Rev D
FIST-RSKG-1
I N S T A L L A T I O N
Gel seal for the round cable ports of FIST-GCO2-BX and FX
splice closure
Kit content FIST-GCO2-FX/BX8
Note: The lubrication oil in the kit makes it easier to
- install gel-seal in the closure ports
- guide cables through ports in the gel-seal.
Number of ports
FOSC-OSKG
FIST-OSKG20
Overview of the available types of gel seals.
3.1.1 Before installing the gel seal in the port, install the 2 securing
screws.
I N S T R U C T I O N
Thermoplastic gel seals
Cable range (mm)
1
2
3
4
8
16
FIST-OSKG
11-14
8-11
6,5-8
4-7
3-5
0-3
6-15
5-18
16-20
