Technical Publication

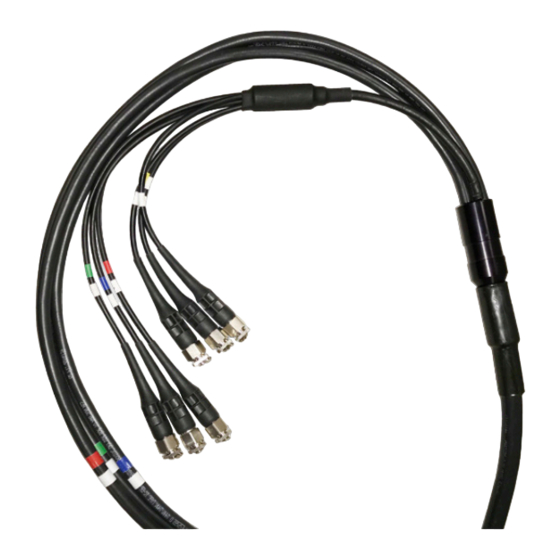

Installation Guidelines - HELIAX
Solution: Hybrid Direct Fiber
Related Support and Learning Opportunities Offered by the CommScope Infrastructure Academy
The insights and expertise contained in this manual represent just one small part of CommScope's
global learning initiative. Few industries are evolving as quickly as wireless communications. Every
technological innovation impacts what happens in the field. Our customers look to the CommScope
Infrastructure Academy to make sure their technicians and installers are well trained, well-prepared,
and well-educated to take advantage of opportunities as they evolve. To access a course, go to
www.commscopetraining.com/coursecatalog.php, course #6107
Section 1: Direct Breakout Components / Accessories ...................................................................02
Section 2: General Specifications / Color Coding...........................................................................03
Section 5: Supporting Fiber Tails .............................................................................................................07
Section 6: FullAXS Installation .............................................................................................................09
Section 7: Breakout Procedure / Connection Considerations ............................................................11
Section 8: All-in-One Cleaner / Inspecting ...............................................................................................12
Section 9: Excess Cable Management ..................................................................................................13
Section 10: Jacketing Removal Procedure / Check List ........................................................................14
www.commscope.com
®
Trunk Cable Hoisting ..............................................................................................04
®
Tails ........................................................................................................................06
®
Bulletin # 7689527 Rev. L
1
Advertisement
Table of Contents
Related Manuals for CommScope FDH1204-24SE2
Summary of Contents for CommScope FDH1204-24SE2
-
Page 1: Table Of Contents
Solution: Hybrid Direct Fiber Related Support and Learning Opportunities Offered by the CommScope Infrastructure Academy The insights and expertise contained in this manual represent just one small part of CommScope's global learning initiative. Few industries are evolving as quickly as wireless communications. Every technological innovation impacts what happens in the field. - Page 2 PLUS STANDAR HANGER ® FDH1210-24SE2 19256B-C SSH-L 42396A-1 (add grommet HG-24-114) FDH1206-24SE2 19256B-C SSH-XL 42396A-1 (add grommet HG-33-114) FDH1204-24SE2 29961-C SSH-XL 42396A-2 (add grommet HG-44-158) FDH1204-48SE2 29961-C SSH-XL 42396A-2 (add grommet HG-44-158) Power breakout tail SSH-1014 43211A (add grommet HG-10MM-12)
-
Page 3: Section 2: General Specifications / Color Coding
Technical Publication Section 2: General Specifications 6x12 Configuration FDH1204-48SE2-XXX FDH1210-24SE2-XXX FDH1206-24SE2-XXX FDH1204-24SE2-XXX UL Type TC-OF-ER Cable Type UL Type TC-OF-ER UL Type TC-OF-ER UL Type TC-OF-ER Center Conductor Gauge 6 AWG 4 AWG 4 AWG 10 AWG Conductors, quantity Total Fiber Quantity... -
Page 4: Section 3: Heliax ® Trunk Cable Hoisting
Installation temperature range is -20°C to +60°C (-4°F to +140°F). • Minimum cable bend radii and tensile load can be found on-line in our eCatalog section at commscope.com. CommScope Lace-Up Hoisting Grip 19256B-C required for 1210 and 1206 series. Hoisting Grip 29961-C required for •... - Page 5 Steel cable sock or rope hoist line Minimum leader 5.3 M (17 ft) Clevis Required Hoisting Apply provided Tie grip Wrap to the base of the hoisting grip before applying tension to the line. www.commscope.com Bulletin # 7689527 Rev. L...
-
Page 6: Section 4: Heliax
1110 N | 250 lbf Cable Assembly Length Lengths Available connector Weather shroud not shown compatible connector Torque Specifications End 2 Direct Interface Type Tightening Torque, N●m, (in-lb) Breakout ODC compatible connector 1 (8.8) www.commscope.com Bulletin # 7689527 Rev. L... -
Page 7: Section 5: Supporting Fiber Tails
Connectors are fully weather sealed and do not require additional weatherizing. Unused power conductors should be left with the protective cap in place. Option 2 www.commscope.com Bulletin # 7689527 Rev. L... - Page 8 Place tape over fiber tails and slide the protection sleeve from the BBU protective sleeve end to hold in end over any spare fibers to protect place. Support protection sleeve them. using tie wraps. www.commscope.com Bulletin # 7689527 Rev. L...
-
Page 9: Section 6: Fullaxs Installation
Engage the compression nut one full revolution to keep the grommet in place but do not tighten fully to allow for adjustment during RRU connection. Slide weather shroud down jacketing to allow full access to the DLC connector during the RRU connection. www.commscope.com Bulletin # 7689527 Rev. L... - Page 10 The compression nut must be tightened until it is completely against the cable gland body. The grommet will protrude slightly from the compression nut. Reverse steps 7 and 8 to remove sleeve for maintenance. www.commscope.com Bulletin # 7689527 Rev. L...
-
Page 11: Section 7: Breakout Procedure / Connection Considerations
Caution: Do not try to clean adapter with a standard pipe cleaner. The sleeve inner diameter of adapters could be too small. Do not try to clean the adapter with cleaning stick if a connector is mounted in one side. Discard cleaning sticks after each use. Adapter Brush www.commscope.com Bulletin # 7689527 Rev. L... -
Page 12: Section 8: All-In-One Cleaner / Inspecting
Is It Clean Inspect Clean? Clean Connect Abrasive particles (i.e. rock dust) can cause permanent damage to the interface. If interface is scratched it cannot be repaired, it would need to be replaced. www.commscope.com Bulletin # 7689527 Rev. L... -
Page 13: Section 9: Excess Cable Management
Remove Excess Rip Cord Apply Electrical Tape to Protect Breakout NOTE: Remember to slide identifier labels down the power conductors before trimming the cable to it’s final length www.commscope.com Bulletin # 7689527 Rev. L... -
Page 14: Section 10: Jacketing Removal Procedure / Check List
Hinweis: CommScope lehnt jede Haftung oder Verantwortung für Schäden ab, die aufgrund unsachgemäßer Installation, Überprüfung, Wartung oder Demontage auftreten. Atenção: A CommScope abdica do direito de toda responsabilidade pelos resultados de práticas inadequadas e sem segurança de instalação, inspeção, manutenção ou remoção.
