TC-40112-IP-EN
Rev A, March 2018
www.commscope.com
FACT CABLE TERMINATION UNIT (FACT-ACCCTULLT)
Contents
1.
General product information ................................................ 1
2.
Warnings and caution ............................................................ 1
3.
Product image......................................................................... 1
4.
Kit content ............................................................................... 2
5.
Cable preparation ................................................................... 2
5.1.
General cable preparation ....................................................................... 2
5.2.
5.3.
Cable preparation with central strength member .............................. 3
5.4.
Loose tube Ø < 2,5 mm handling.......................................................... 4
5.5.
1x Flex tube Ø 12 mm ............................................................................... 4
1.

General product information

•
The loose tube cable termination unit is designed to accomodate 1x fiber cable with an outer cable diameter be-
tween Ø 8.5 mm - Ø 15 mm or 1x flex tube Ø 12 mm.
•
The cable needs to be flexible enough to allow a bend radius less than 75 mm for IFC cable strength members
with a diameter less than Ø 2.5 mm.
•
The kit contains all parts to install 1 piece of fiber cable / flex tube on 1 ,2 or 3 FACT elements.
2.

Warnings and caution

•
Fiber optic cables may be damaged if bent or curved to a radius that is less than the recommended minimum
bend radius. Always observe the recommended bend radius limit when installing fiber optic cables and patch
cords.
•
Exposure to laser radiation can seriously damage the retina of the eye. Do not look into the ends of any optical
fiber. Do not assume the laser power is turned off or that the fiber is disconnected at the other end.
•

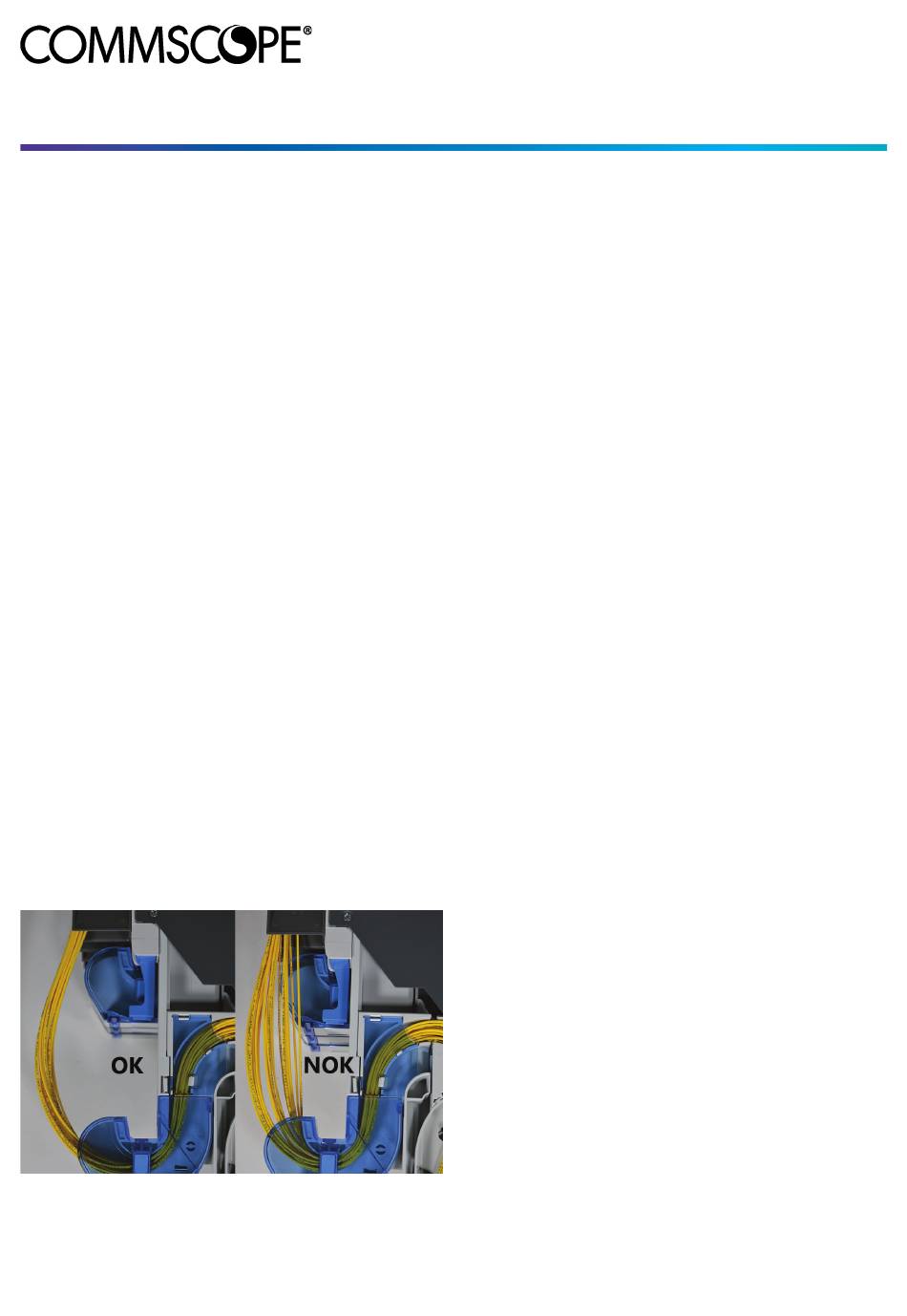

Pay attention to the routing of the patch cords. These should move/hang freely, where they leave the bend control.
If you see that there is tension occuring on the patch cords, please reroute these.
860642215
Rev. A

Installation Instructions

5.6.
6.
6.1.
Termination................................................................................................... 5
6.2.
Inside routing and termination................................................................ 6
7.
element) ................................................................................... 7
7.1.
Termination................................................................................................... 7
7.2.
Inside routing and termination................................................................ 7
8.
Trademarks...............................................................................9
9.
Contact Information................................................................9
© 2018 CommScope, Inc. All Rights Reserved
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CommScope FACT

Summary of Contents for CommScope FACT

  • Page 1: Table Of Contents

    The cable needs to be flexible enough to allow a bend radius less than 75 mm for IFC cable strength members with a diameter less than Ø 2.5 mm. • The kit contains all parts to install 1 piece of fiber cable / flex tube on 1 ,2 or 3 FACT elements. Warnings and caution •...

  • Page 2: Kit Content

    2x Tie wrap black • 1x Allen key Note: Check kit content and length of tubes before installation. For FACT-xExHP 460 mm is ok, cut these to 430 mm for FACT-xESPL! Strength Foam + Cable Ø < 15 mm and...

  • Page 3: Cable Preparation

    Use the rip cord to strip off the cable jacket. 5.3.1. Cut the strength member on length of+/- 55 mm. 5.1.4. Separate the aramid yarns from the loose tubes. Apply 2 pieces of foam. Page 3 of 9 © 2018 CommScope, Inc. All Rights Reserved...

  • Page 4: Loose Tube Ø < 2,5 Mm Handling

    For loose tubes Ø > 2,5 mm and dividing bare fibers, secure the cable and flex tube in the rack where the FACT is mounted. Feed the loose tubes into the flex. Mark the loose tubes at 2 cm. Strip the loose tube and clean the fibers.

  • Page 5: Routing And Termination On Fact-Xespl (Splice Element)

    Open the lids. Push / slide all transportation tubes 6.1.5. Feed the fibers into the transportation tubes. one by one into the tray. Note: These transportation tubes have to be cut to 430mm (for FACT-xESPL) first! Page 5 of 9 © 2018 CommScope, Inc. All Rights Reserved...

  • Page 6: Inside Routing And Termination

    Route the fiber throughout the groove plate to the 6.1.9. Push and click the tube holder into the tray. Route dedicated splice trays. the transtportation tubes into the FACT element. 6.1.10. If needed, repeat previous step for transportation tubes 5 to 8.

  • Page 7: Routing And Termination On Fact-Xexhp (Splice/Patch Element)

    Strip the loose tubes at the marked point and Remove the velcro, if needed. clean the fibers. 7.2.2. Open the lids (front and back). 7.1.3. Feed the fibers into the -correct length- transportation tubes. Page 7 of 9 © 2018 CommScope, Inc. All Rights Reserved...
  • Page 8 Place the additional tube, if needed. and reroute them in the splice island. 7.2.5. Guide the tubes through the channels and close the lids. 7.2.9. Put the transparent cover back on the splice island. Page 8 of 9 © 2018 CommScope, Inc. All Rights Reserved...

  • Page 9: Trademarks

    Inc. This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to CommScope products or services. CommScope is committed to the highest standards of business integrity and environmental sustainability, with a number of CommScope’s facilities across the globe certified...
