User manual / Bedienungsanleitung
Universal
2.
( 9" and 12") tonearm mounting
Please keep in mind that the following instructions are covering the mount of the
on any Clearaudio turntable.
Universal
2.1
tonearm w ith
Universal
VTA-Lifter
Pic. 2:
with
Mounting the VTA-Lifter on a non-Clearaudio turntable:
To install the VTA-Lifter on the turntable chassis, you will need to drill the required holes.
Please refer to the drilling template shown below (Picture 3) for the measurements to mark the
exact drilling holes.
Please be informed, that this draw ing is not suitable for use as a mounting tool.
Use a 3.2 mm HSS drill bit.

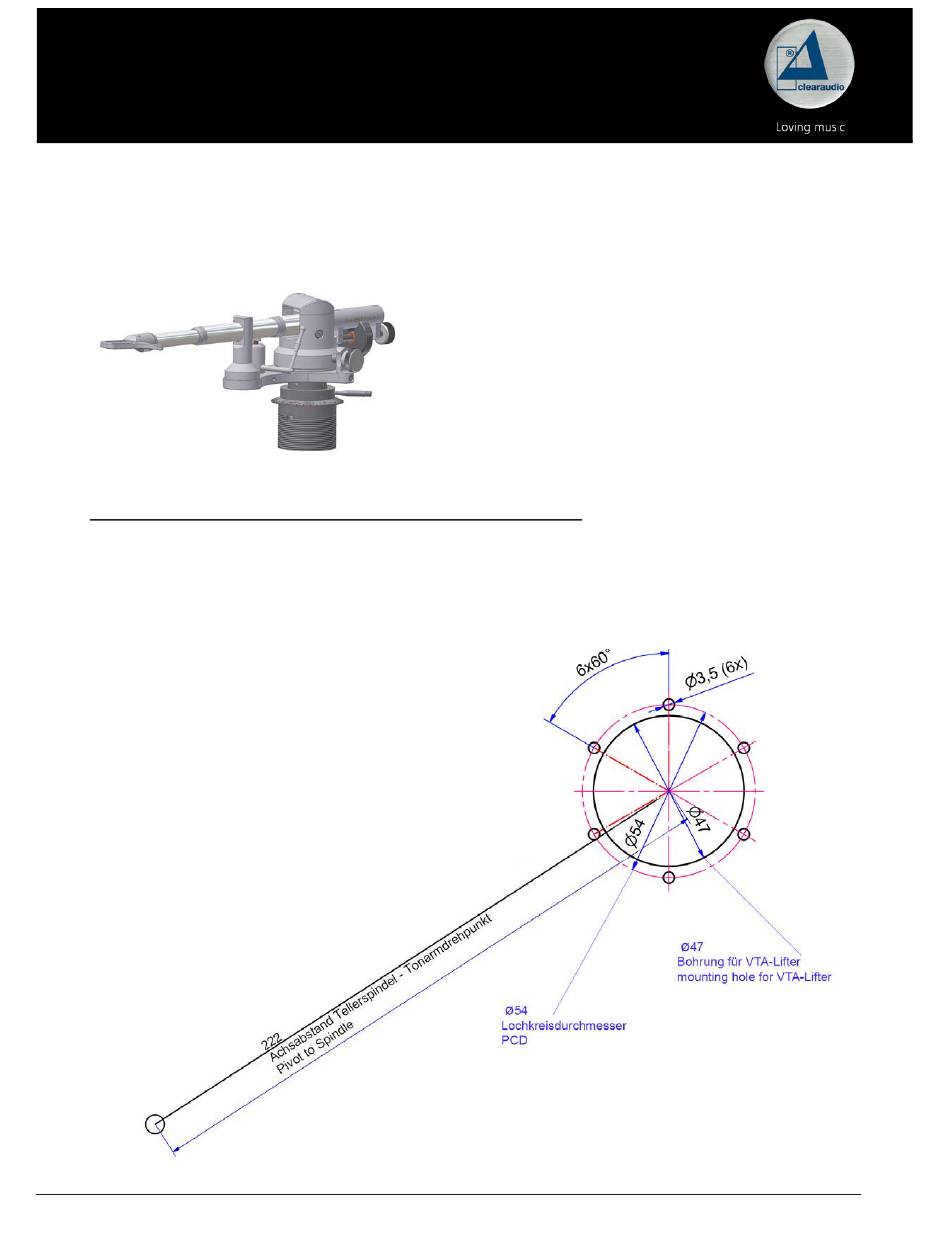

Pic. 3: Mounting the VTA-Lifter on a non-Clearaudio turntable
Made in Germany
VTA-Lifter:
Universal
tonearm
5
