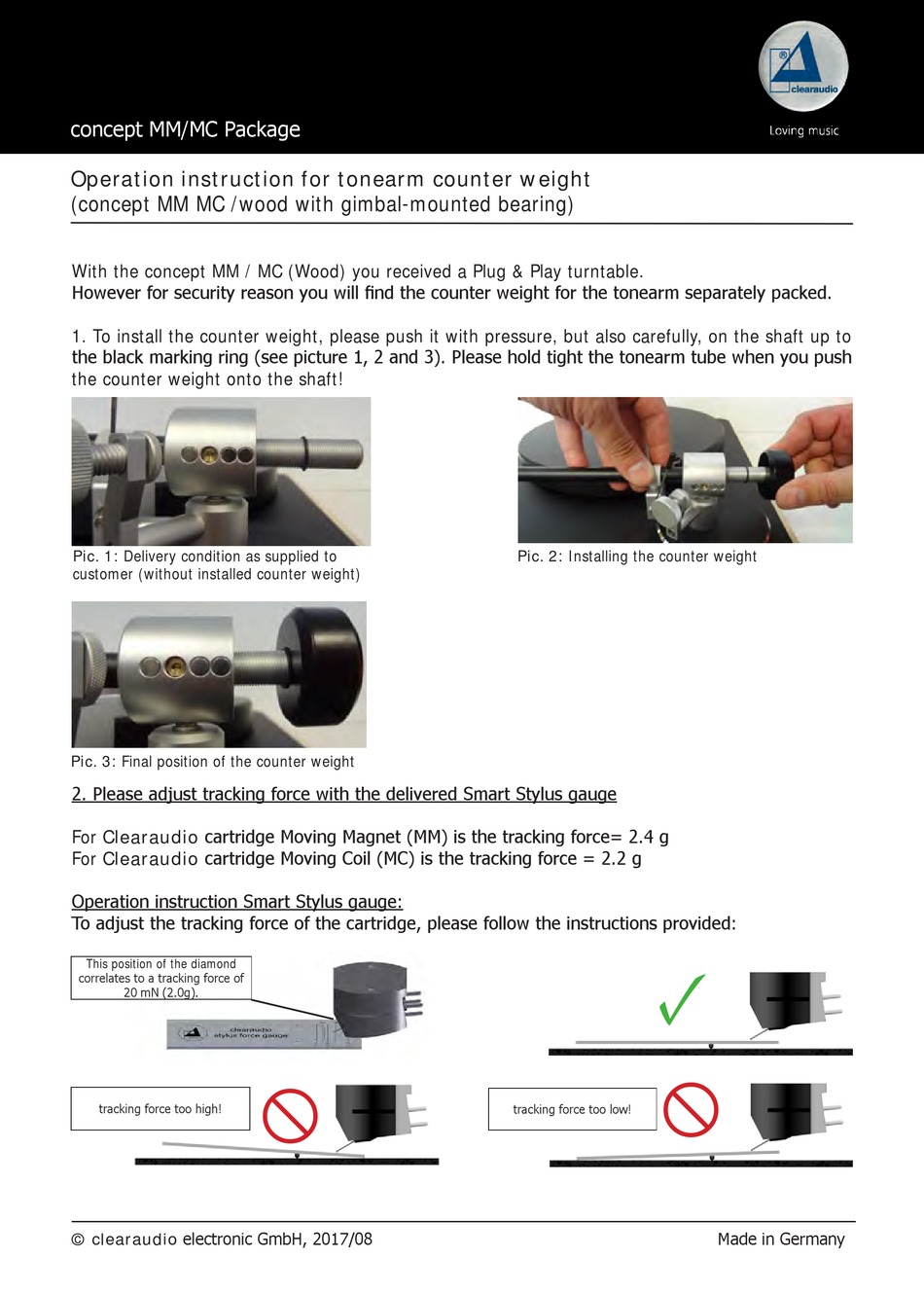

concept MM/MC Package

Operation instruction for tonearm counter weight

(concept MM MC /wood with gimbal-mounted bearing)

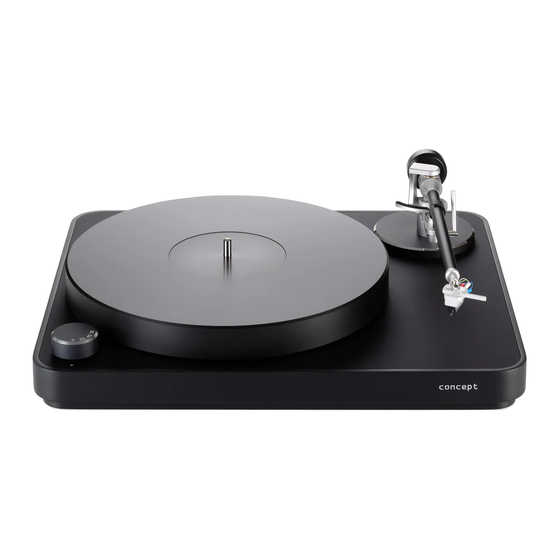

With the concept MM / MC (Wood) you received a Plug & Play turntable.
However for security reason you will find the counter weight for the tonearm separately packed.
1. To install the counter weight, please push it with pressure, but also carefully, on the shaft up to
the black marking ring (see picture 1, 2 and 3). Please hold tight the tonearm tube when you push
the counter weight onto the shaft!
Pic. 1: Delivery condition as supplied to
customer (without installed counter weight)
Pic. 3: Final position of the counter weight
2. Please adjust tracking force with the delivered Smart Stylus gauge
For Clearaudio cartridge Moving Magnet (MM) is the tracking force= 2.4 g
For Clearaudio cartridge Moving Coil (MC) is the tracking force = 2.2 g

Operation instruction Smart Stylus gauge:

To adjust the tracking force of the cartridge, please follow the instructions provided:
This position of the diamond
correlates to a tracking force of
20 mN (2.0g).
tracking force too high!
© clearaudio electronic GmbH, 2017/08

Pic. 2: Installing the counter weight
✓

tracking force too low!
Made in Germany
