Operating Instructions
QJ 600-E
5.3

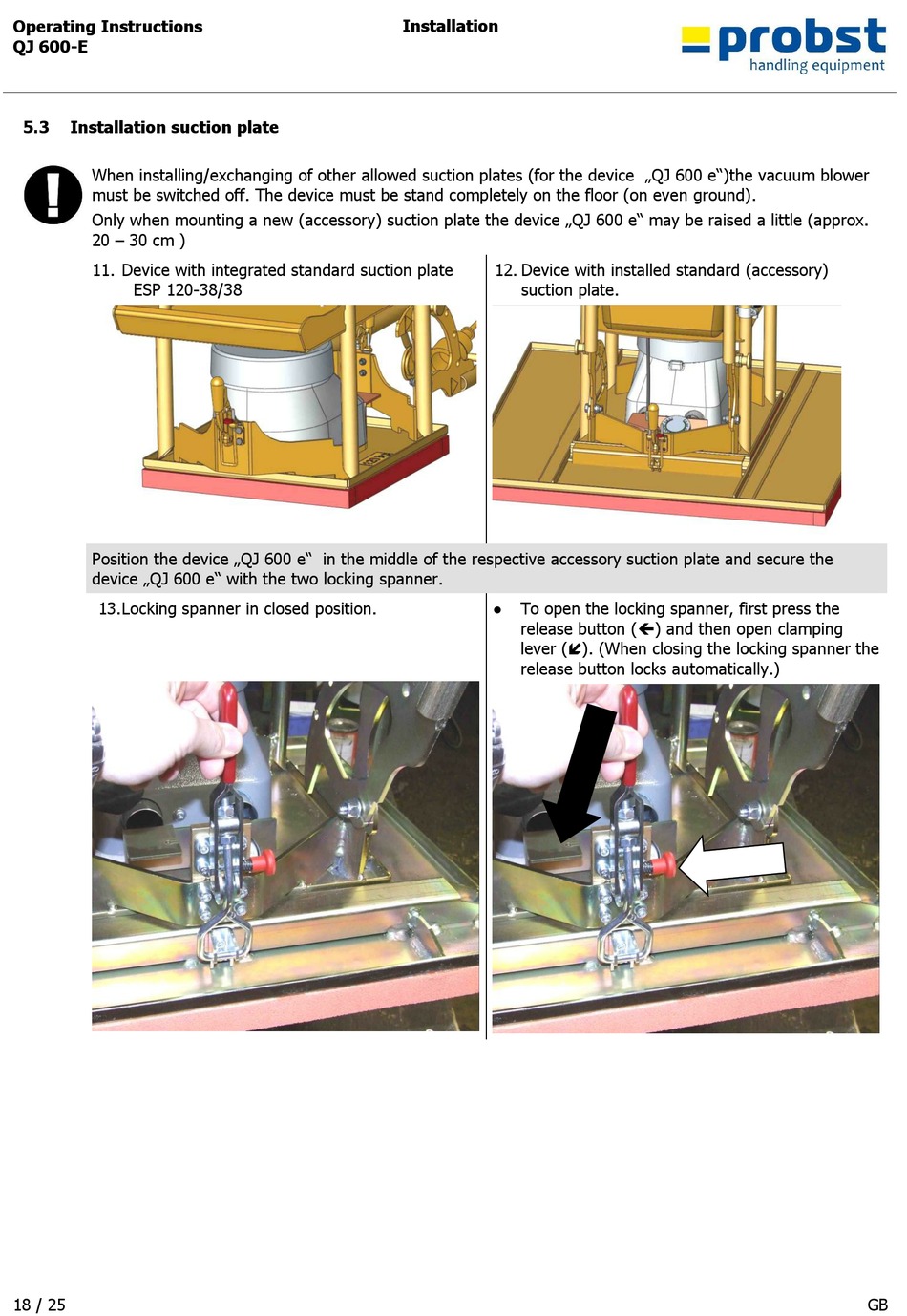

Installation suction plate
When installing/exchanging of other allowed suction plates (for the device „QJ 600 e")the vacuum blower
must be switched off. The device must be stand completely on the floor (on even ground).
Only when mounting a new (accessory) suction plate the device „QJ 600 e" may be raised a little (approx.
20 – 30 cm )
11. Device with integrated standard suction plate
ESP 120-38/38
Position the device „QJ 600 e" in the middle of the respective accessory suction plate and secure the
device „QJ 600 e" with the two locking spanner.
13. Locking spanner in closed position.
Pos : 22 /=============================== @ 0\mod8_2.doc x @ 5159 @ @ 1
18 / 25
Installation
12. Device with installed standard (accessory)
suction plate.
●
To open the locking spanner, first press the
release button () and then open clamping
lever (). (When closing the locking spanner the
release button locks automatically.)
GB
