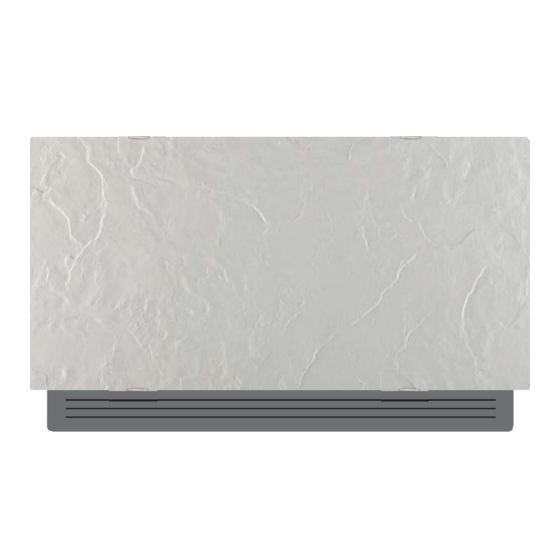

CLIMASTAR SILICIUM HYBRID INVERTER User Manual
  1. Manuals
  2. Brands
  3. CLIMASTAR Manuals
  4. Heater
  5. SILICIUM HYBRID INVERTER
  6. User manual

CLIMASTAR SILICIUM HYBRID INVERTER User Manual

Hide thumbs Also See for SILICIUM HYBRID INVERTER:
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S GUIDE
SILICIUM HYBRID INVERTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILICIUM HYBRID INVERTER and is the answer not in the manual?

Questions and answers

Related Manuals for CLIMASTAR SILICIUM HYBRID INVERTER

Summary of Contents for CLIMASTAR SILICIUM HYBRID INVERTER

  • Page 1 USER’S GUIDE SILICIUM HYBRID INVERTER...

  • Page 3: Table Of Contents

    We would first of all like to thank you for having chosen one of our products and congratulate you on your choice of air conditioning unit. We are sure you will be happy with it because it represents the state of the art in the technology of home air conditioning.

  • Page 4: General

    1. GENERAL 1.1. General Warnings Please, read carefully this guide before installing the device. These instructions are an integral part of the booklet of the device on which the kit will be installed. Refer to the booklet for general warnings and fundamental safety rules.

  • Page 5: User Instructions

    2. USER INSTRUCTIONS 2.1. Electronic control panel with modulation speed This control makes the room temperature adjustment completely autonomous (with adjustable offset via keyboard) through 4 speeds by means of a probe located in the lower side of the device ensuring antifreeze safety even set to stand-by.

  • Page 6: General Switch

    2.4. General switch on - To manage the device through the control panel, the device cord and plug must be connected to a mains socket. - Please be sure that the general switch of the mains supply line is in ON position. - Switch on the device with the main switch.

  • Page 7: Stand

    2.7. Stand by When the control is in this operating mode, the frost protection mode is set up. If the room temperature drops below 5°C the solenoid valve output activates. 2.8. Temperature selection Operation Display Use these keys to set the desired room temperature value on + / ‐...

  • Page 8: Night Function

    2.11. Night function Operation Display Keep the Night operation key pressed. Activation of the function is indicated by the relative symbol appearing on the display. By selection this operation mode, the ventilation speed is limited to a very contained value. Set temperature will be modified too: - It will decrease 1 °C after one-hour performance and another additional degree after 2 hours in heating function;...

  • Page 9: Heating Element

    2.15. Heating element Operation Display Keep the ON standby key pressed for about 2 seconds. The lack of any light indicators from the display indicates "standby" Display is OFF status (no function). Keep the Night operation key pressed. Activation of the function is indicated by the relative symbol appearing on the display.

  • Page 10: Error Signals On Display

    2.18. Error signals on display. Failure on room temperature sensor Failure on fan motor, due to external particle or rotation sensor Failure on water temperature sensor (H2), check sensor has 10kΩ Failure in heating element (overheat). Automatic rearm < 35ºC Failure in heating element, (H4) blocked or not connected.

  • Page 11: Cleaning The Air Suction Filter

    3.2. Cleaning the air suction filter After a period of continuous operation and in consideration of the concentration of impurities in the air, or when re-starting the performance after a period of inactivity, proceed as described below: -Extract the front grill by lifting it slightly and turn it until it comes right out of its sea -Extract the filter, pulling it horizontally outwards.
  • Page 12 - Remount the filter on the cooler-radiator, paying particular attention to introduce the lower flap in its housing. Lower flap Lower flap Filter housing Filter It is forbidden to use the device without its mesh filter. The device is fitted with a safety switch that prevents the fan from starting if the mobile panel is incorrectly positioned or missing.

  • Page 13: Troubleshooting

    4. TROUBLESHOOTING In case of water leaks or anomalous functioning immediately cut off the power supply and close the water taps. Should one of the following anomalies occur, contact an authorized service center or an authorized qualified person, but do not intervene personally: -The ventilation does not activate even if there is hot or cold water in the hydraulic circuit.
  • Page 14 Effect Cause Remedy The appliance leaks Leaks in the hydraulic Check the leak and fully tighten water during the connections of the system. the connections. heating function. Leaks in the valve unit. Check the state of the gaskets. There are formations of dew on the front panel.

  • Page 15: Guarantee

    5. GUARANTEE CLIMASTAR guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guaran- tee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below.
  • Page 16 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias)- SPAIN Tel: +34 985 66 80 80 / Fax: +34 985 264 751 www.climastar.es HYBRID INVERTER User Rev. 260320...
