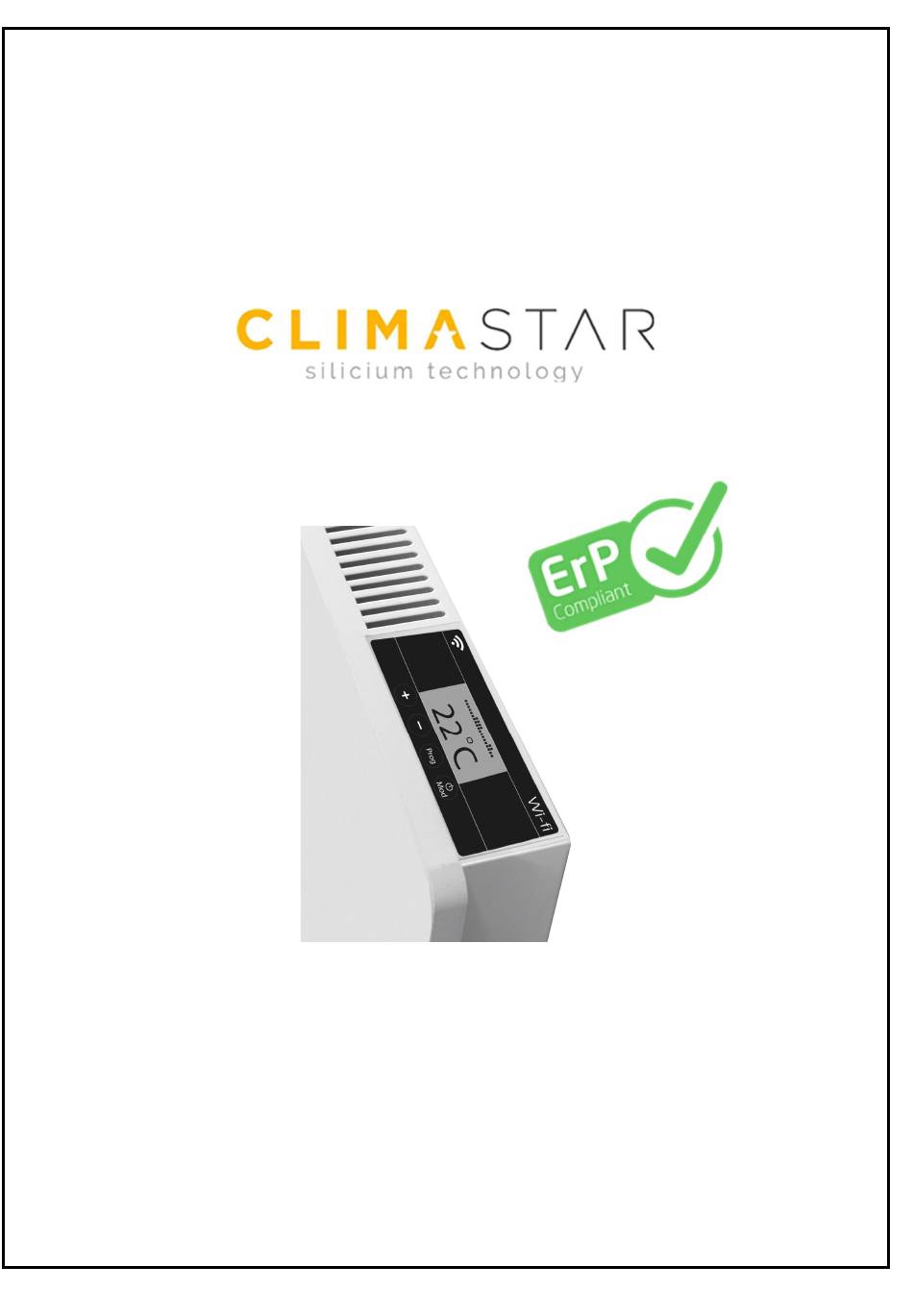

- Page 1 USER’S GUIDE SILICIUM WIFI...
-
Page 3: Table Of Contents
INDEX INTRODUCTION …………………… ......................5 INSTALLATION INSTRUCTIONS ....................... 6 STARTING AND SETTING UP………… ...................... 7 3.1-SETTING UP THE WIFI CENTRAL UNIT ......................... 7 3.2 - HOW TO LINK HEATERS TO THE WIFI CENTRAL UNIT ..................8 3.3- SCREEN DISPLAY ..................................9 3.4- SETTING UP THE HEATER .............................. -
Page 5: Introduction

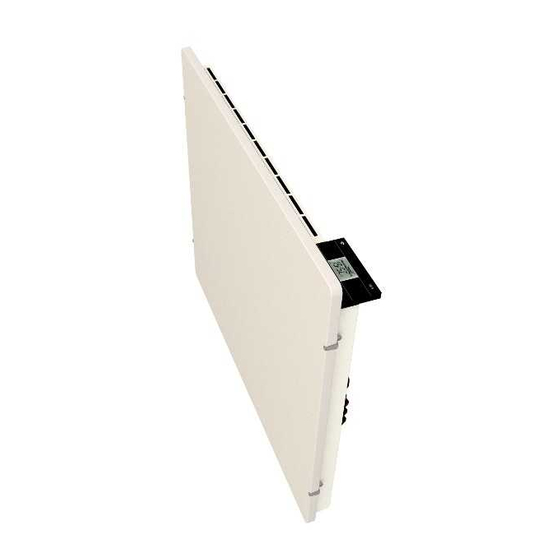

1. INTRODUCTION Congratulations on your purchase of your SILICIUM WIFI low consumption heater!! The product you have just purchased has undergone numerous tests and inspections to guarantee the highest quality. We hope it will give you entire satisfaction. Please, read carefully this user’s guide before installing your device. -
Page 6: Installation Instructions
2. INSTALLATION INSTRUCTIONS - The device includes a mounting kit with the required bolting: plugs and 6mm screws, and the wall support. - Plugs supplied with the mounting kit are not suitable for plaster walls. These walls require specific plugs. - Recommended clearances required... -
Page 7: Starting And Setting Up
Square and horizontal heaters Vertical heaters 1650 mm 850 mm 550 mm 250 mm Check measures and correct stabilization before drilling. Measures in mm. 3. STARTING AND SETTING UP 3.1-SETTING UP THE WIFI CENTRAL UNIT It is necessary a Smartbox to control the heater using web or Smartphone apps. The Smartbox communicates the heater through the internet using the home router. -
Page 8: How To Link Heaters To The Wifi Central Unit
1- Register on the web app: avantwifi.climastar.es to connect via your computer or download the CLIMASTAR WIFI app from Google PlayStore or Apple AppStore and follow instructions to register. 2- The smartbox communicates by radiofrequency to the heaters and it is connected to the home router using WIFI. -
Page 9: Screen Display
3.3- SCREEN DISPLAY To turn on the device, connect the power cable to a mains power outlet and click the switch on the right. The display illuminates. Temperature set per hour Link symbol, connection with Day of the week the WIFI unit. Set temperature Heating unit display Working mode display... - Page 10 Press / Mod to change the operation mode: Manual mode - Select the manual mode - Select the desired temperature by clicking +/-. Automatic mode - Select the automatic mode - Temperature settings: In the automatic mode, the set temperatures automatically change a per the user’s settings.
- Page 11 Comfort, , set by the user being at home, maximum comfort. Saving or economy, , used at night or in short periods of absence. Frost protection or minimum, used to set a minimum temperature when absent. How to set the temperature values: Prog Select the temperature to set: comfort, economy or frost.
- Page 12 E.g. IMPORTANT: Schedule starts on day 1 of the week at midnight. Day of the week Bar showing set temperature/time Time Temperature Start to programme Select the temperature at midnight, 00.00 Select the time...
- Page 13 Select the temperature and the following hour And so on until you have programmed each hour and each day of the week. Prog Do not forget to confirm and validate. Exit and set real date and time on the heater. If the device is already connected to internet and the wifi Gateway, the time is automatically set.
-
Page 14: Key Lock Function
Exit - Temporary manual mode operation Being on the automatic mode, the user can increase or decrease the temperature; said modification will be set up until next change in programme. Modify manually the temperature in Auto mode. 3.5- KEY LOCK FUNCTION “LOCK”... -
Page 15: Cleaning And Maintenance
- How to reset the smartbox - How to reset the USB smartbox 4. CLEANING AND MAINTENANCE - Keep the room clean to avoid possible spots on the walls due to convection. - At the beginning of the year's heating season, vacuum any dust that has accumulated in the inner heating element while the radiator has been off for long periods during warmer weather. -
Page 16: Technical Specifications
CLIMASTAR GLOBAL COMPANY, S.L Carretera AS-266 Oviedo-Porceyo, Km 7. 33192 Pruvia (Llanera) - Asturias - Spain... -
Page 17: Faqs
6. FAQs PROBLEM PROBABLE CAUSE SOLUTION The heater does not The heater is in energy saving mode Increase the temperature in the heater if you need more room temperature. warm up Incorrect setting of the set temperature Check the set temperature on the display to verify it is the desired temperature. The room Improper sizing, the heater is too small for The power rating of the heater is not adequate for the place in which it has been... -
Page 18: Guarantee
7. GUARANTEE CLIMASTAR guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below. - Page 20 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias)- SPAIN Tel: +34 985 66 80 80 / Fax: +34 985 264 751 www.climastar.es CARDBOARD PACKAGING CAN BE RECYCLED DO NOT PLACE THE ELECTRICAL ITEM IN THE GENERAL WASTE (IT SHOULD BE TAKEN TO A LOCAL RECYCLING CENTRE).
