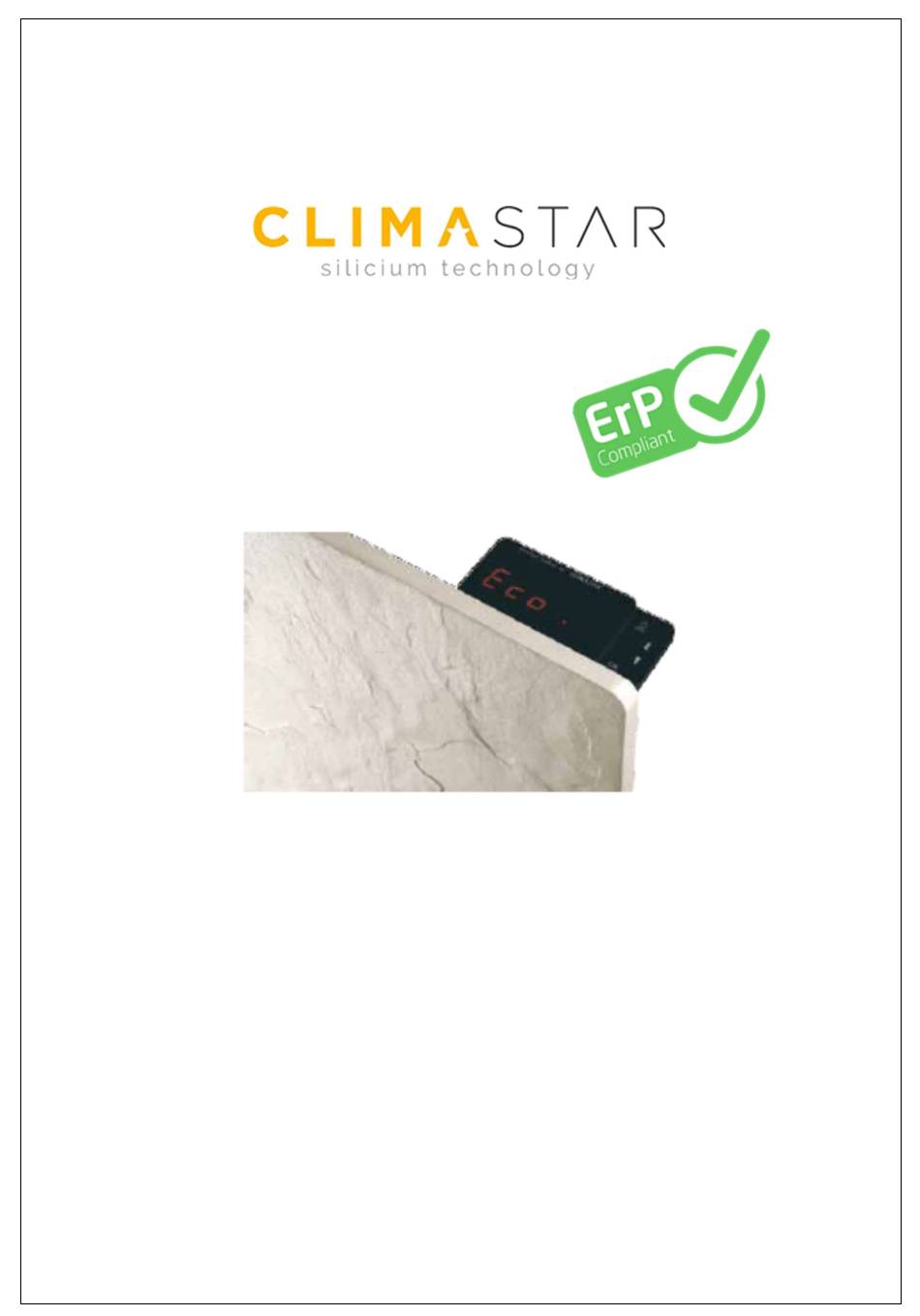

- Page 1 USER'S GUIDE SILICIUM TOUCH...
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION .......................... 3 2. INSTALLATION INSTRUCTIONS ....................4 3. USING THE INERTIA RADIATOR, TOUCH RANGES ............... 5 3.1 Starting the Touch Radiator ....................5 3.2 Setting the Date and Time ....................5 3.3 Manual Mode ......................... 6 3.4 Automatic Mode ........................7 3.5 Pilot Wiring Mode ........................ -
Page 3: Introduction
1. Introduction Congratulations on your purchase of your SILICIUM TOUCH low consumption heater!! The product you have just purchased has undergone numerous tests and inspections to guarantee the highest quality. We hope it will give you entire satisfaction. Please, read carefully this user’s guide before installing your device. -
Page 4: Installation Instructions
2. Installation Instructions Open the package and check that it is the correct model and it is in good condition. To obtain optimum performance it is necessary to maintain a minimum clearance of 15 cm between the radiator and any inflammable material as furniture, curtains etc. Recommended clearances required to maintain optimum performance are indicated on the following picture: TOUCH 500 –... -
Page 5: Using The Inertia Radiator, Touch Ranges
3. Using the Smart TOUCH Inertia Radiators 1. “POWER /esc” button: Turn on and off the device / allows moving back from any menu. 2. “OK/mode” button: to access main menu and select or confirm the desired option. 3. “UP/DOWN” arrows : allows you to set the values and navigate through the different options of the menus. -
Page 6: Manual Mode
3.3 MANUAL MODE In this mode, the device works using factory settings. All you have to do is press to select the desired temperature. The set temperature can be modified from 15º C to 28º C in intervals of 0.5º C. How to select the manual mode. -
Page 7: Automatic Mode
3.4 AUTOMATIC MODE (continued) How to select and carry out custom programming. a) Press the 'OK/mode' button. b) Select the auto mode by pressing the button until (Automatic Mode) is displayed and press the 'OK/mode' button to confirm. c) The display will now show the set temperature together with a red dot that indicates the unit is working in automatic mode. -
Page 8: Key Block Function
3.7 KEY BLOCK FUCTION This function enables to block the controls. To set this function, do as follows: a) Press the 'OK/mode' button for a few seconds until (Configure Time) is displayed. b) Repeatedly press the button until is displayed and then press the 'OK/mode' button. c) Press the button until is displayed and then press the 'OK/mode' button. -
Page 9: Technical Specifications
CLIMASTAR GLOBAL COMPANY, S.L Carretera AS-266 Oviedo-Porceyo, Km 7. 33192 Pruvia (Llanera) - Asturias - Spain... -
Page 10: Faqs
7. FAQs PROBLEM PROBABLE CAUSE SOLUTION Incorrect setting of the set Check the set temperature on the display to verify it is the temperature. desired temperature. Improper sizing, the heater The power rating of the heater is not adequate for the place is too small for the room. -
Page 11: Warranty Terms And Conditions
8. Warranty Terms and Conditions CLIMASTAR. guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below. - Page 12 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias) SPAIN Telf: +34 985 66 80 80 / Fax: +34 985 264 751 www.climastar.es TOUCH Rev. 270120...
