USER'S GUIDE
SILICIUM SMART PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILICIUM SMART PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CLIMASTAR SILICIUM SMART PRO

Summary of Contents for CLIMASTAR SILICIUM SMART PRO

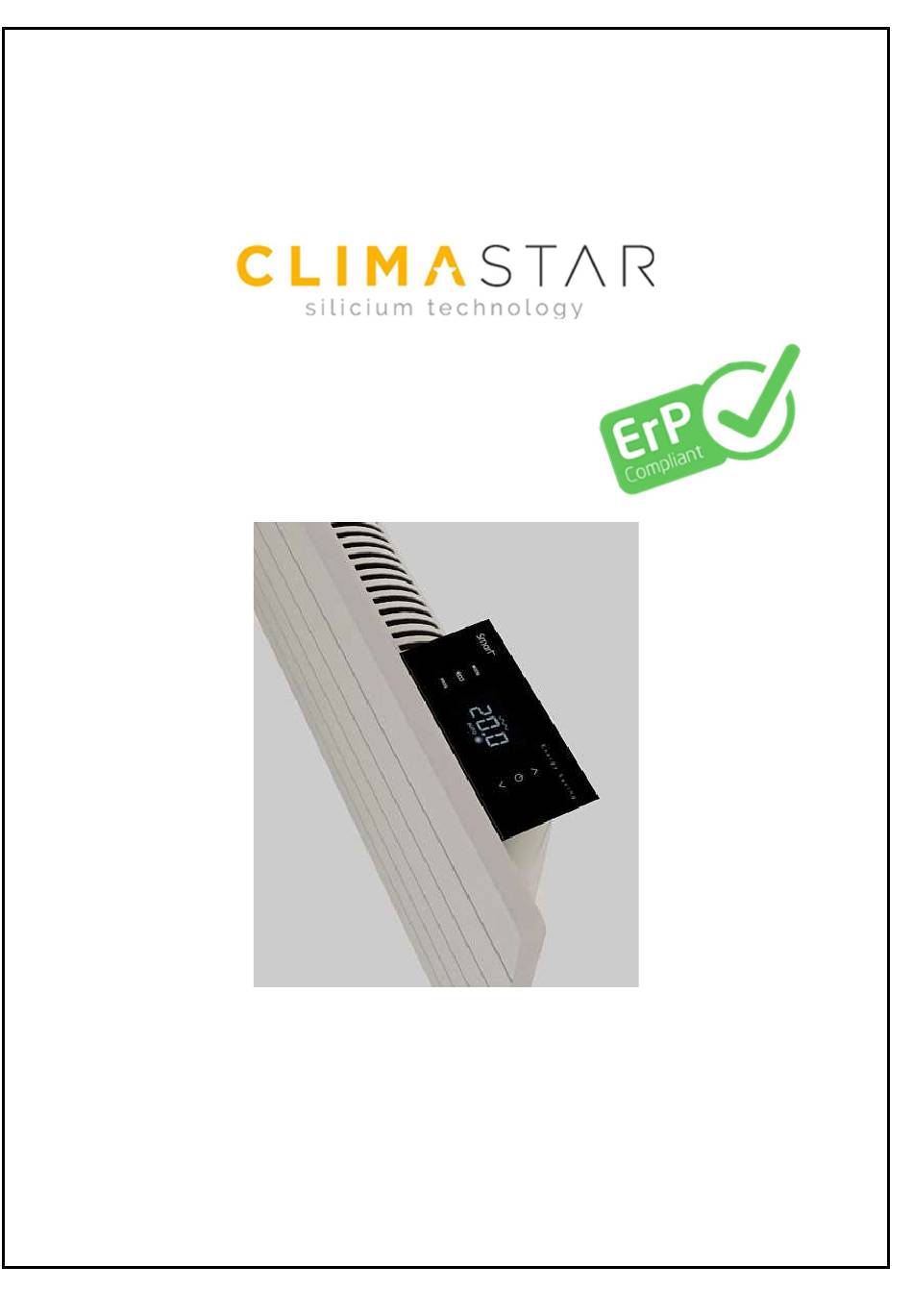

  • Page 1 USER’S GUIDE SILICIUM SMART PRO...

  • Page 3: Table Of Contents

    INDEX 1. INTRODUCTION ................. 5 2. WALL SUPPORT ................7 3. SETTING UP .................. 9 3.1.- STARTING THE DEVICE ..........................9 3.2.- DISPLAY CONTROL............................9 3.3.- THE SCREEN ..............................10 3.4.- WORKING MODES ............................10 3.5- SETTING THE TIME AND USING THE SMART PRO RADIATOR ..........12 4.

  • Page 5: Introduction

    1. INTRODUCTION Congratulations on your purchase of your SILICIUM SMART PRO low consumption heater!! The product you have just purchased has undergone numerous tests and inspections to guarantee the highest quality. We hope it will give you entire satisfaction. Please, read carefully this user’s guide before installing your device.
  • Page 6  Not intended for use by persons (including children over 8) with reduced, physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must not play with the device.

  • Page 7: Wall Support

    2. WALL SUPPORT  The device includes a mounting kit with the required hardware-rawlplugs and 6 mm screws- and the wall support.  The rawlplugs supplied with the mounting kit cannot be used on dry walls. For this type of wall, special rawlplugs must be used.
  • Page 8 Check measures and levelling before drilling. Measurements in mm.

  • Page 9: Setting Up

    3. SETTING UP 3.1.- STARTING THE DEVICE First, plug in the power cord to a mains power outlet, and click the switch on the right. Press to turn on the device. 3.2.- DISPLAY CONTROL  MODE Working modes Increase Quick access to ECO Turn on, turn off and validate temperature ...

  • Page 10: The Screen

    3.3.- THE SCREEN 3.4.- WORKING MODES There are 3 operating modes:  Auto. Temperature will automatically vary depending on a predefined setting based on 3 temperatures (comfort, eco, antifrost). Bars show how temperature is programmed per hour.  Manual. The user selects the setpoint temperature. ...
  • Page 11 3.4.1 MANUAL MODE - How to select the MANUAL mode shows on screen - Select the comfort temperature. Having selected the manual mode, press ECO button to decrease 3ºC the room temperature. shows on screen Press ECO button again to turn to comfort temperature.

  • Page 12: Setting The Time And Using The Smart Pro Radiator

    3.4.2 AUTO(MATIC) MODE - How to select the AUTO mode shows on screen - How to set the temperatures In this mode, set temperatures will automatically change according to the user’s configuration who will assign one of these 3 temperatures to each hour: - Comfort ( ) - selected by the user to get maximum comfort.
  • Page 13 - Press buttons to select the day of the week, click to confirm. Hour digits flash. Press buttons to select the hour, click to confirm. Minute digits flash. - Press buttons to select the minutes, click to confirm 3.5.2 USING THE RADIATOR If you do not want to programme the radiator at this stage, press twice the PROG button.
  • Page 14 To carry out a custom programming, press to select the day of the week to programme. To confirm, press Start at 0h, press to select the temperature: comfort, , eco anti frost. Confirm and programme the following hour. Repeat these steps until you go through all the 24 hours.
  • Page 15 3.5.3 COPY FUNCTION This function enables you to copy a previously programmed day to any other day. Press the PROG button until COPY shows on the screen. Press the button to select the programmed day, press to validate. Now, press the button to select the number of the day you are copying to.

  • Page 16: Maintenance

    3.5.5 OPEN WINDOW DETECTOR FUNCTION The device has a built-in sensor that detects any sudden temperature changes that may occur, i.e. when a window is opened, or any other circumstance that may prevent the radiator from raising the room temperature. This mode activates when the temperature decreases by 3ºC in 5 minutes.

  • Page 17: Technical Characteristics

    CLIMASTAR GLOBAL COMPANY, S.L Carretera AS-266 Oviedo-Porceyo, Km 7. 33192 Pruvia (Llanera) - Asturias - Spain...

  • Page 18: Faqs

    6. FAQs PROBLEM PROBABLE CAUSE SOLUTION The device Due to the thermal inertia, the device transfers heat The device is in energy-saving does not to the room; should you need more temperature, mode heat up increase the device temperature. Incorrect setting Check the set temperature on the display to verify it temperature...

  • Page 19: Guarantee

    7. GUARANTEE CLIMASTAR guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below.
  • Page 20 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias). SPAIN Telephone: +34 985 66 80 80 www.climastar.es SMART PRO Rev. 270120...
