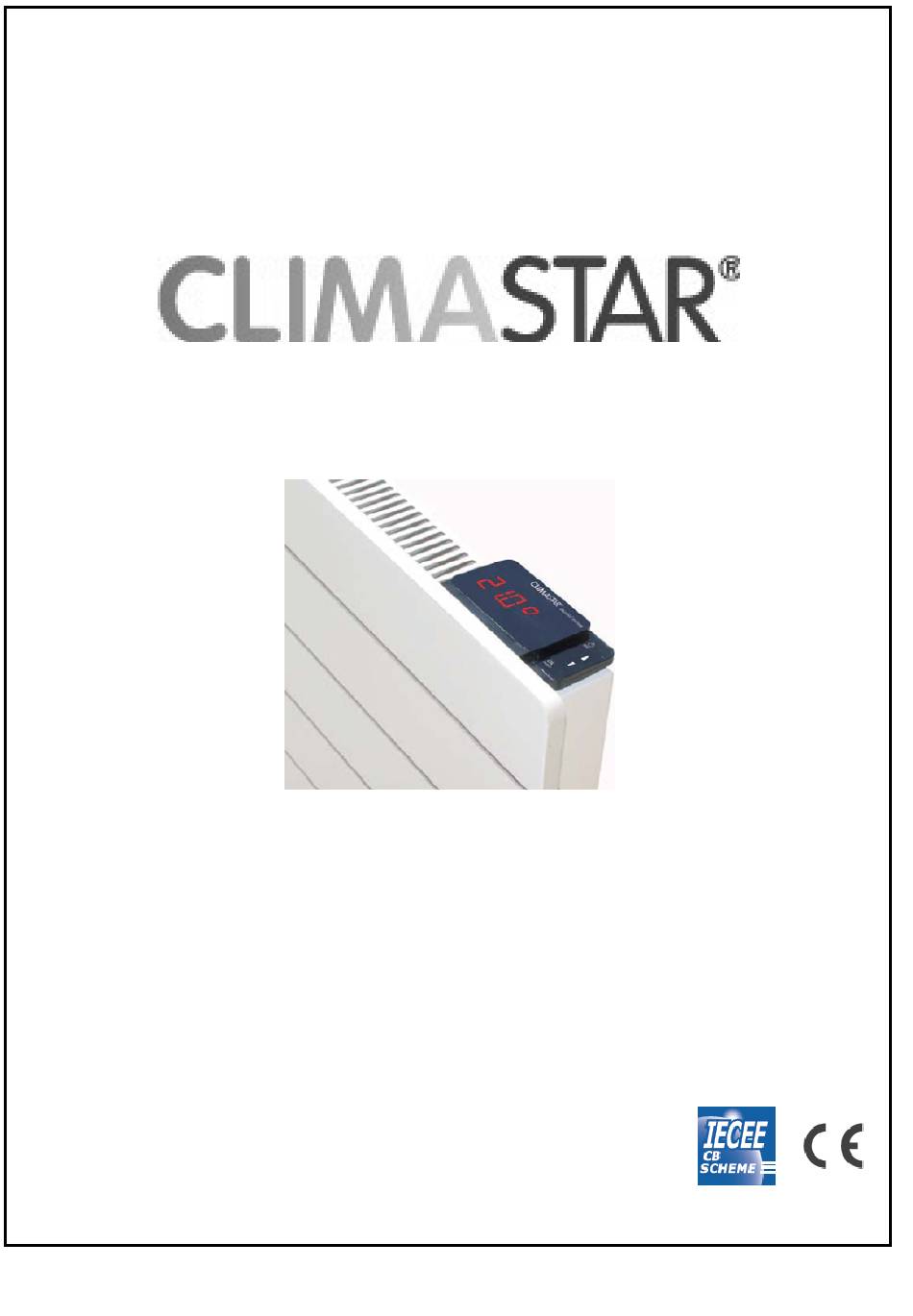

- Page 1 INSTALLATION MANUAL AND USER GUIDE SMART TOUCH RANGES ...
- Page 2 2 ...
-
Page 3: Table Of Contents
INDEX 1- WARNING ......................4 2- INSTALLATION INSTRUCTIONS ..............7 3- USING THE INERTIA RADIATOR, SMART TOUCH RANGES ....8 3.1 STARTING THE DEVICE ................8 3.2 SETTING DATE AND TIME ..............8 3.3 MANUAL MODE ..................8 3.4 AUTOMATIC MODE .................. 9 3.5 PILOT WIRING MODE ................ -
Page 4: 1- Warning
1- WARNING The warranty of the heater will not cover any damage caused by non observance of any of these instructions. This guide must be kept and given to any new owner. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction... - Page 5 be given where children and vulnerable people are present. Should the heater be moved and reinstalled, it is essential that the work is carried out by a competent electrician. The use of these heaters is forbidden in any area where there is a presence of gases, explosives or inflammable objects.
- Page 6 The appliance must be installed in such a way that switches and other control devices cannot be touched by a person using a bath or shower. The installation must be carried out in accordance with the current electrical regulations. ...
-
Page 7: 2- Installation Instructions
2- INSTALLATION INSTRUCTIONS - Open the package and check that it is the correct model and it is in good condition. - To obtain optimum performances it is necessary to maintain a minimum clearance of 15 cm between the radiator and any inflammable material as furniture, curtains etc. -
Page 8: 3- Using The Inertia Radiator, Smart Touch Ranges
3- USING THE INERTIA RADIATOR, SMART TOUCH RANGES 1. “POWER /ESC” button: Turn on and off the device / allows moving back from any menu. 2. MODE/OK” button: to access main menu and select or confirm the desired option. 3. “UP/DOWN” arrows: allow to set the values and navigate through the different options of the menus. -
Page 9: Automatic Mode
How to select the manual mode? Press OK Press and select MAN; press OK to confirm. Press and confirm the desired temperature. Press POWER BUTTON to switch off the unit, the display shows OFF. If the device is OFF, the FROST setting automatically activates to prevent temperature being below 7ºC. -
Page 10: Pilot Wiring Mode
How to select custom programming? - Press OK - Press key , select AUTO; press OK to validate. - The display will show the set temperature together with a red dot that indicates the unit is working in automatic mode. If AUTOMATIC mode is selected the heater cannot be turned off. -
Page 11: Key Block Fuction
3.7 KEY BLOCK FUCTION This function enables to block the controls. To set this function, do as follows: A.- Press OK for a few seconds. B.- Press , select PROTEC and press OK to validate. C.- Press , select ON, and press OK to validate. To unlock the device, wait until dashes disappear from the screen;... -
Page 12: 5- Cleaning And Maintenance
5- CLEANING AND MAINTENANCE - The radiators do not precise any special maintenance providing thermal comfort during large periods. Clean dust with a dry, soft cloth only when the unit is disconnected and cold. - Keep the floor clean to avoid stains on the wall. - At the beginning of the year’s heating season, the inner parts of the radiator should be vacuumed because dust can be accumulated in the heating element while the time of the year that the radiator is been off. -
Page 13: 6- Technical Specifications
6- TECHNICAL SPECIFICATIONS SMART TOUCH 500 – 800 ‐ 1000 Power: (W) 500, 800 and 1000 Size: (mm) 500 x 500 x 70 Weight: (Kg) 11 SMART TOUCH 1500 y 2000 Power: (W) 1500 and 2000 Size: (mm) 500 x 1000 x 70 Weight:(Kg) 22 SMART TOUCH VERTICAL Power: (W) 800 Size: (mm) 1000 x 500 x 70 Weight:(Kg) 22 Voltage: (V) 230 V Frequency: (Hz) 50 Hz Ceramic component: DUAL KHERR External Housing Powder coated steel structure Plug: On request THERMOSTAT Features: TOUCH VERSION Temperature range from 15 to 28ºC SAFETY THERMOSTAT ... -
Page 14: 7- Troubleshouting
7- TROUBLESHOUTING PROBLEM PROBABLE CAUSE SOLUTION Incorrect setting of the Check the set temperature on the display to verify it is set temperature the desired temperature. The power is not the adequate for the place in which it The room does not Improper sizing has been installed. reach the desired Make sure the system is installed at the recommended temperature Excessive height height in this user’s guide. Input and output grids Do not place anything on top of the radiator and do not are obstructed install it inside a hole made in the septum. Set temperature below Rise the radiator’s set temperature until it is 1 degree room temperature above the room temperature Check that the automatic control is not down. If it is down put it up. ... -
Page 15: 8- Guarantee Terms
8- GUARANTEE TERMS CLIMASTAR. guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below. - Page 16 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias) Telf: 985 66 80 80 / Fax: 985 264 751 www.climastar.es WARNING : In order to avoid overheating do not cover the heater. The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
