USER'S GUIDE
"
SILICIUM 3 IN 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILICIUM 3 IN 1 and is the answer not in the manual?

Questions and answers

Related Manuals for CLIMASTAR SILICIUM 3 IN 1

Summary of Contents for CLIMASTAR SILICIUM 3 IN 1

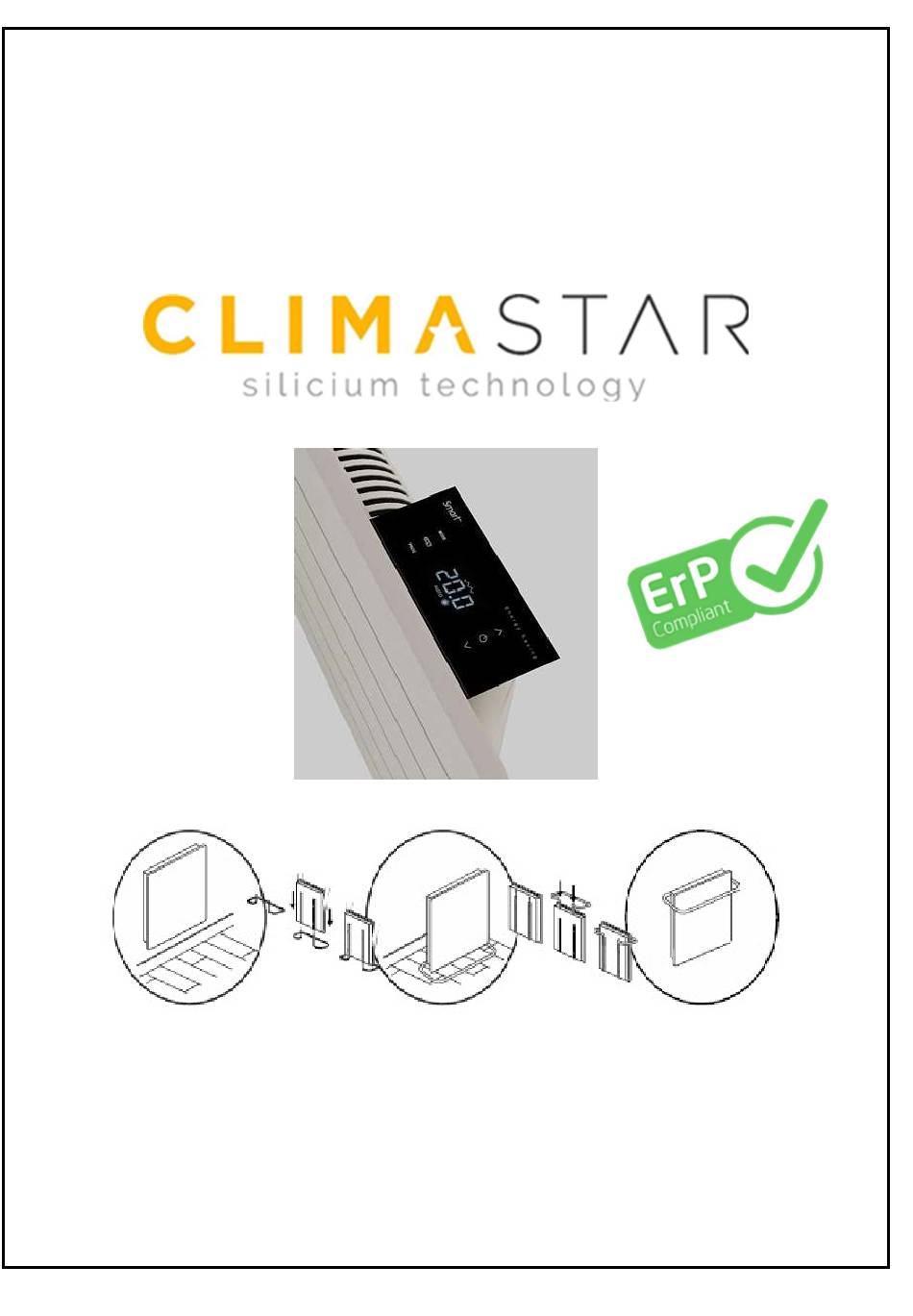

  • Page 1 USER’S GUIDE ” SILICIUM 3 IN 1...

  • Page 3: Table Of Contents

    INDEX 1- INTRODUCTION ______________________________________________________________________ 3 2- WALL FITTING ________________________________________________________________________ 4 3- SETTING UP __________________________________________________________________________ 6 3.1 STARTING THE DEVICE ______________________________________________________________________ 6 3.5 SETTING THE TIME AND USING THE RADIATOR __________________________________________________ 8 4- MAINTENANCE ______________________________________________________________________ 11 5- TECHNICAL CHARACTERISTICS __________________________________________________________ 12 6- FAQs ______________________________________________________________________________ 13 7- GUARANTEE ________________________________________________________________________ 14 1- INTRODUCTION...

  • Page 4: 2- Wall Fitting

    the device. Cleaning and maintenance must not be carried out by children without prior supervision. o WARNING: some parts of this device may overheat and cause burns. Pay special attention when children and vulnerable people are around - To avoid possible overheating, do not cover the device 2- WALL FITTING - The device includes a mounting kit with the required hardware - rawlplugs and 6 mm screws- and the wall support.
  • Page 5 Check dimensions and levelling before drilling. Dimensions in mm.

  • Page 6: 3- Setting Up

    3- SETTING UP 3.1 STARTING THE DEVICE First, plug in the power cord to a mains power outlet, and click the switch you can find on the right side of the heater. Then press on the display to turn on the radiator, ECO symbol turns on.
  • Page 7 3.4 WORKING MODES There are 3 operating modes:  Auto. Temperature will automatically vary depending on a predefined setting based on 3 temperatures (comfort, eco, antifrost). Bars show how temperature is programmed per hour.  Manual. The user selects the setpoint temperature. ...

  • Page 8: Setting The Time And Using The Radiator

    3.4.2 AUTO (MATIC) MODE - How to select the AUTO mode This symbol shows on screen How to set the temperatures In this mode, set temperatures will automatically change according to the user’s configuration who will assign one of these 3 temperatures to each hour: - Comfort ( ) - selected by the user to get maximum comfort.
  • Page 9 - Press buttons to select the hour, click to confirm. Minute digits flash. - Press buttons to select the minutes, click to confirm 3.5.2 USING THE RADIATOR If you do not want to programme the radiator at this stage, press twice the PROG button.
  • Page 10 Repeat these steps until you go through all the 24 hours. To programme other days of the week, press the buttons to select the day and proceed as previously mentioned. 3.5.3 COPY FUNCTION This function enables you to copy a previously programmed day to any other day.

  • Page 11: 4- Maintenance

    3.5.5 OPEN WINDOW DETECTOR FUNCTION The device has a built-in sensor that detects any sudden temperature changes that may occur, i.e. when a window is opened, or any other circumstance that may prevent the radiator from raising the room temperature. This mode activates when the temperature decreases by 3ºC in 5 minutes.

  • Page 12: 5- Technical Characteristics

    CLIMASTAR GLOBAL COMPANY, S.L Carretera AS-266 Oviedo-Porceyo, Km 7. 33192 Pruvia (Llanera) - Asturias - Spain...

  • Page 13: 6- Faqs

    6- FAQs PROBLEM PROBABLE CAUSE SOLUTION Due to the thermal inertia, the device transfers The device does not The device is in energy- heat to the room; should you need more heat up saving mode temperature, increase the device temperature Incorrect setting of the set Check the set temperature on the display to temperature...

  • Page 14: 7- Guarantee

    7- GUARANTEE CLIMASTAR guarantees that in the moment of its purchase the product is free of any defect in the materials and in the work force (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non-conformities arisen in the terms and conditions mentioned below.
  • Page 16 CLIMASTAR GLOBAL COMPANY S.L. Carretera AS-266 OVIEDO-PORCEYO/ Km.7 Pruvia 33192 - Llanera (Asturias)- SPAIN www.climastar.es 3IN1. Rev 111119...
