Control Room Unit for Model 9100 Carbon Monoxide Monitors

Control Panel

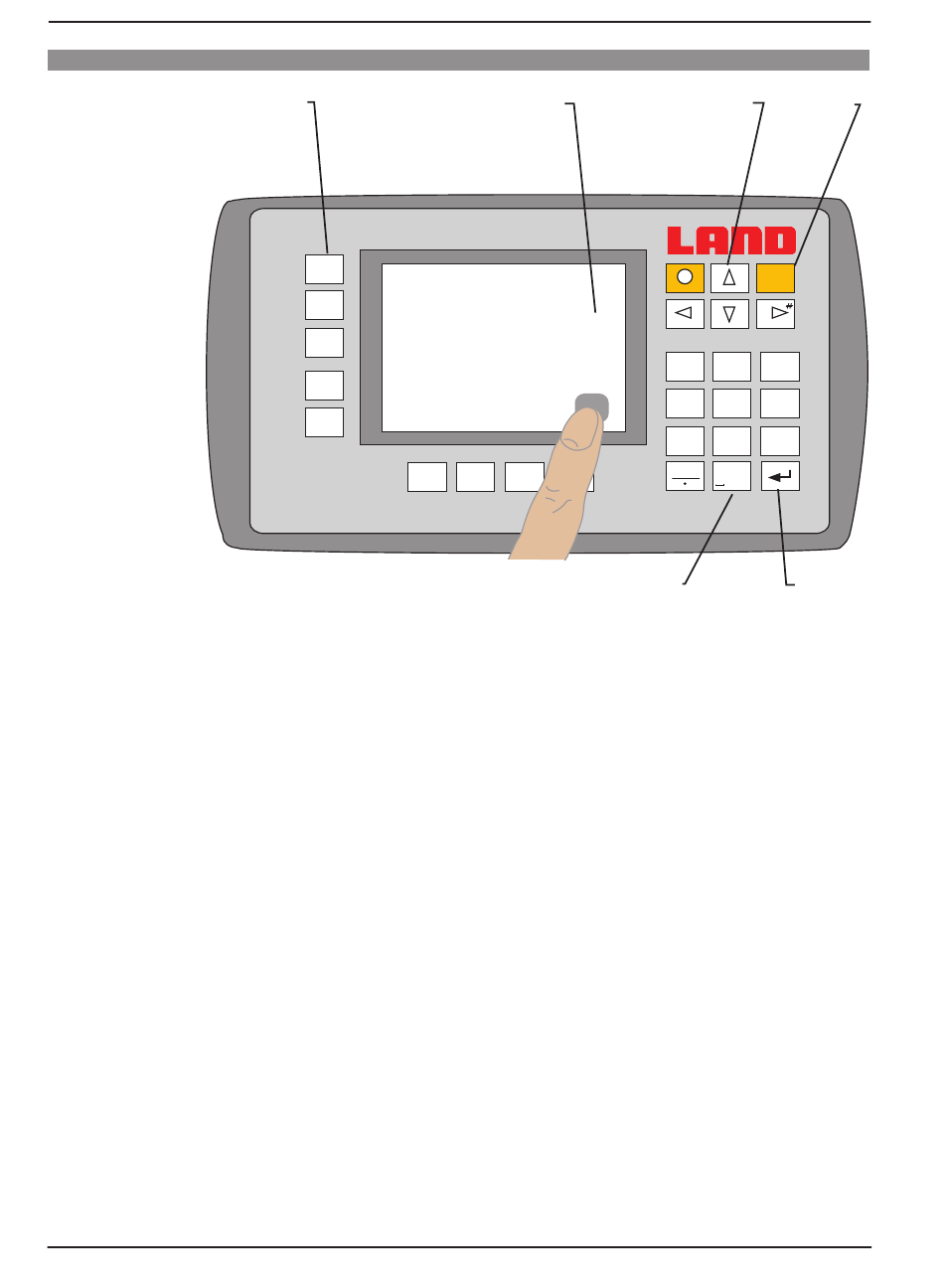

function keys
Function Keys
F8
entered again before any data can be changed.
F9
entering data.
Touch Sensitive Screen
Where a selection may be made by touching the screen, touch the back square.
Scroll Keys
The four arrow keys may be used to scroll through selections. On certain screens they
can be used to move between parameters. Where this is possible it is indicated on the
screen.
Key Pad
This is used to enter numeric values, for example entering the password.
Escape
This can be used to exit a menu screen, for example, to exit the password screen. A
message on the menu screen indicates when the escape key can be used. To exit a
screen without saving changes use the Exit button on the screen.
Enter
Use the enter key to confirm an entry from the key pad. For example, when entering
a password
touch sensitive screen
F1
F2
F3
F4
F5
F6
Password lock. Pressing F8 causes the password to reset. The password must be
Refreshes the current screen display. This is useful if you make a mistake when
F7 F8 F9
key pad
6
User Guide
scroll keys
escape
i
ESC
*
1
2 3
symbol abc def
4 5 6
ghi jkl mno
7 9
8
pqrs tuv wxyz
+/-
0
enter
