5.2 RELEASING THE MONITOR FROM THE MOUNT

The monitor release knob retracts the monitor release pin from the annular groove in the mount. It is recommended that the hose be
depressurized and removed before releasing the monitor.

5.3 ROTATING THE MONITOR ABOUT THE MOUNT

Attempting to rotate the monitor on the mount while flowing can cause the monitor to become out
WARNING
of control, resulting in injury or property damage. Do not force the rotation lock release lever or
attempt to rotate the monitor while flowing
Once the monitor is secured to the mount, it may be necessary to re-
orient the monitor. Rotation lock release levers on both sides of the
monitor provide the ability to rotate the monitor about its mount in 45
degree increments, provided the monitor is not flowing. If the rotation
lock release lever is pulled while flowing, a pressurized chamber behind
the pin prevents it from unlocking.
Pulling the Rotation Lock Release Levers back (toward the inlet)
releases the pin and allows the monitor to rotate on the mount. The
levers move to the locked position when released.
Rotation Lock
Release Lever
Rotation
Lock Pin
Axial
Lock Pin
Pressurized
Pin Position
Indicator
Return
Spring

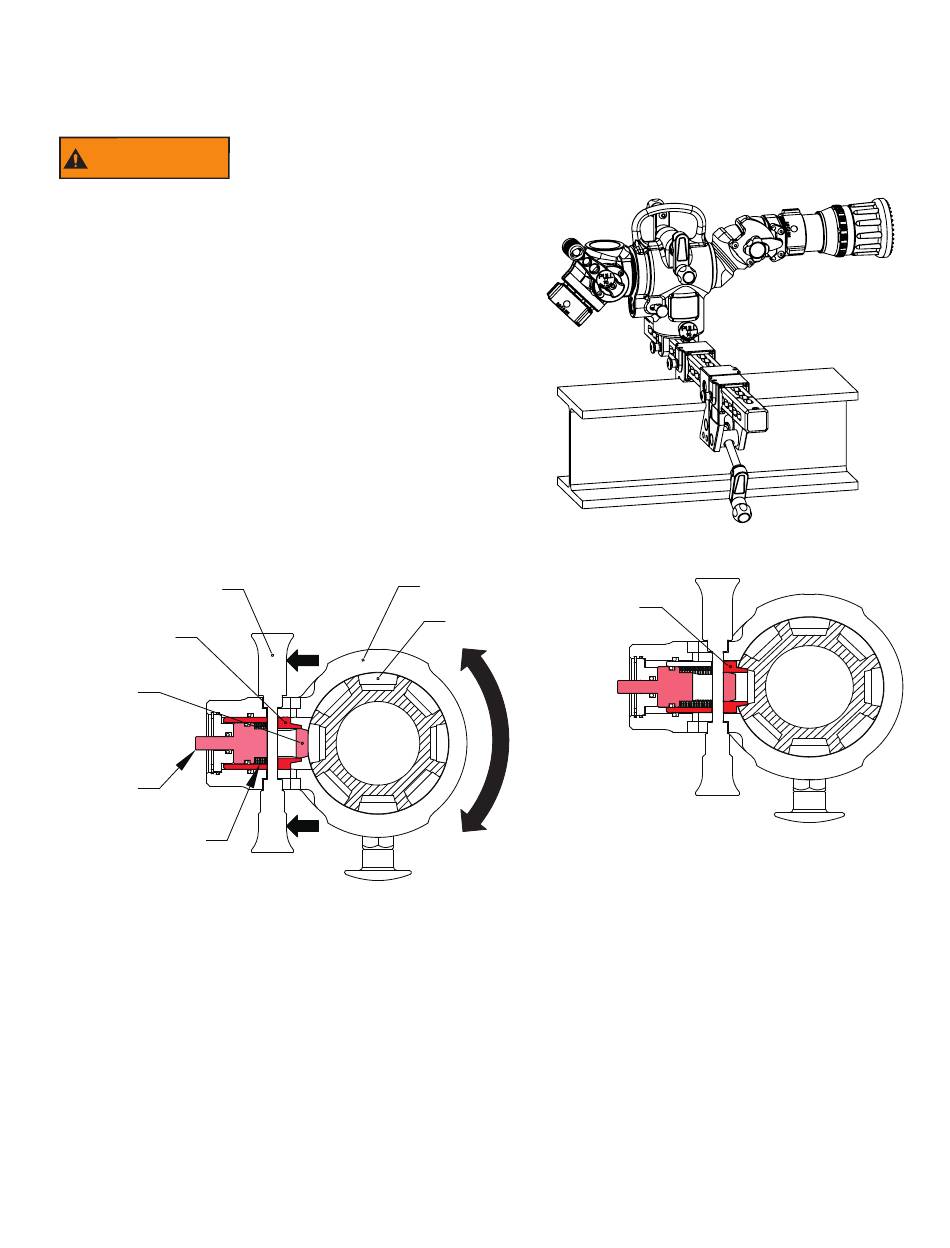

Rotation Lock in the Released Position
©Copyright Task Force Tips LLC 2013-2020
Monitor Body
Rotation
Released
Figure 5.3B
Rotation Lock Pin
Engaged in Mount
Mount
Base Detent
Rotation Lock in the Locked Position
