4.1.2 INSTALLING THE I-BEAM CLAMP

1) Loosen the clamp arm
assembly by rotating the
crank counterclockwise.
2) Remove the cross-pin on the
clamp arm assembly and slide the
assembly toward the end of the backbone.
3) Remove the cross-pin on the fixed jaw.
4) Position the fixed jaw on the backbone in the
desired location and secure with the cross-pin.
5) Position the fixed jaw against the I-beam.
6) Push the clamp arm assembly
toward the I-beam.
7) When the edge stop
contacts the edge of the I-beam,
pull the clamp arm assembly
back to the next closest
cross-hole.
8) Secure with the cross-pin.
9) With the cross-pin
firmly in place, rotate the
crank clockwise to engage
the clamp jaw until snug.
10) Rotate the crank one full turn
past snug and attempt to shake
the assembly. If the clamp is
able to move in relation to
the mounting object, rotate
the crank until the clamp is firmly seated.
After Use: Ensure the clamp is fully retracted
(unscrewed) for storage.
Overtightening the I-beam clamp can distort or damage the clamp resulting in an insecure monitor
WARNING
mounting that will not safely support reaction forces. Don't turn crank more than one turn after the
jaws are fully seated and crank arm has stopped moving. Don't tighten the crank with a wrench,
tool, or cheater bar.
©Copyright Task Force Tips LLC 2013-2020
3
4

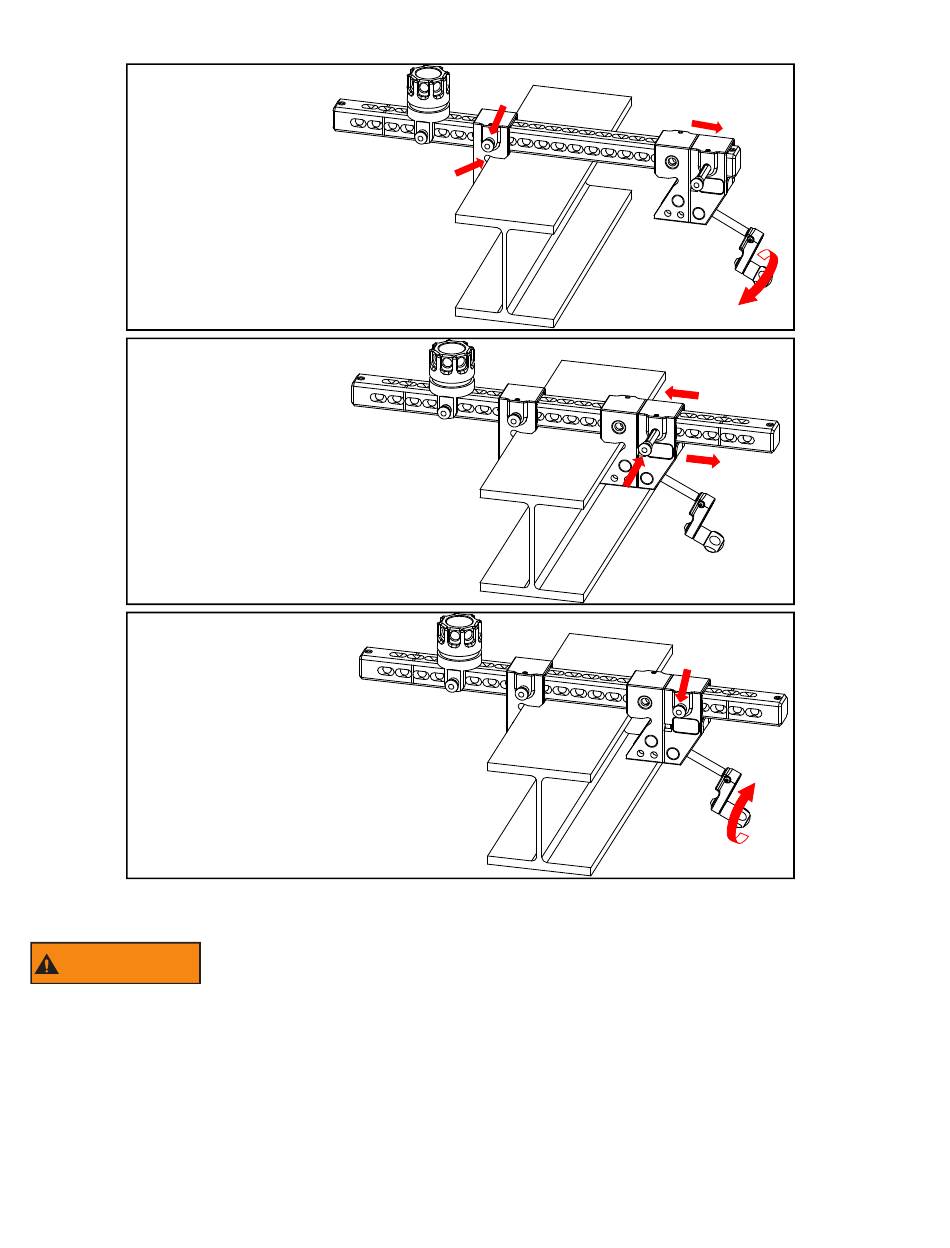

Figure 4.1
Installing the I-Beam Clamp
12
2
1
6
Move To
7
Nearest Hole
8
9
10
