4.4 FIXED MOUNT (HPM-B)

Select a mounting surface and fasteners able to support the weight of the monitor and all
NOTICE
attachments, including the water contained within the monitor and hoses, and also the torque
resulting from the reaction forces and hoses.
Fixed Mounts can be installed in preplanned locations for fast, precise setup.
1) Pre-drill (2) .52" (13mm) clearance holes
spaced 2.69" (68mm) apart, in the mounting object.
2) Select (2) 1/2"-20 screws with enough length to
engage at least .75" (19mm) and no more than
1" (25mm) into the tapped holes on the mount.
3) Insert screws with washers (required, not included)
from the back side of the mounting object and thread
into the mount.

4.5 MOUNTING BLOCK (HPM-D)

The Mounting Block can be installed from the back or in locations where the back side of the mounting surface is inaccessible.
A & B - Mounting when the back side is accessible:
HPM-D
Mounting
Block
HPM-E
Cross-Pin
Mount
A) Bolt from the back side of a surface by
drilling (2) .64" (16mm) clearance holes
and screwing (2) 5/8"-11 bolts into the tapped
holes in the mounting block.
C - Mounting when the back side is NOT accessible:
C) Bolt to the front of a surface by adding (2) 1/2" (13mm)
tapped holes and securing with 1/2" bolts.
©Copyright Task Force Tips LLC 2013-2020

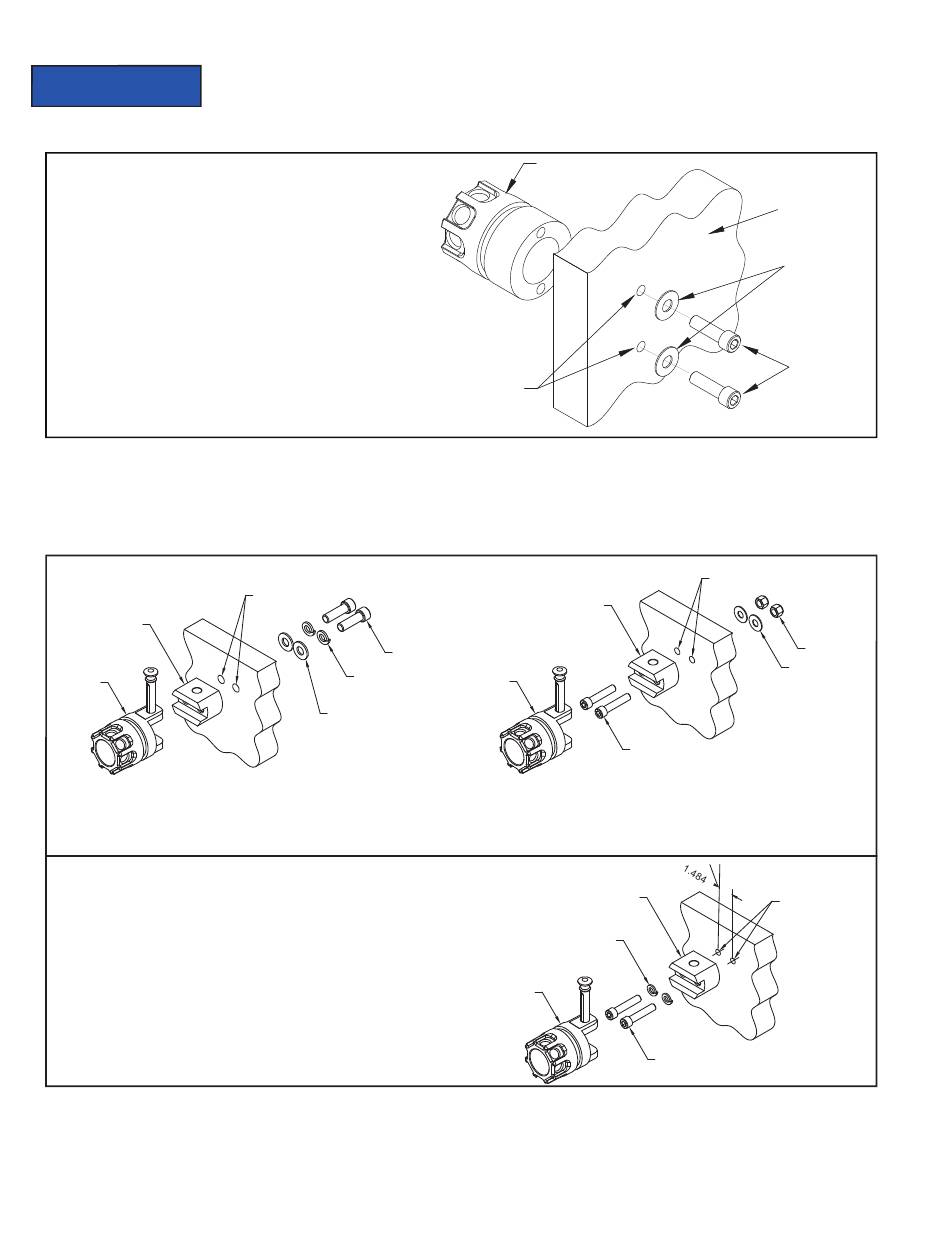

Figure 4.4
Fixed Mount Installation
Ø.64" [16mm]
Holes
5/8"-11 Bolts
5/8" Lock
Washers
5/8" Washers
Figure 4.5
Mounting Block Installation Options
Fixed Mount
.52" [13mm]
Clearance
Holes
HPM-D
Mounting
Block
HPM-E
Cross-Pin
Mount
B) Bolt from the front side by drilling
(2) .52" clearance holes and securing
with 1/2" bolts, washers, and locknuts.
HPM-D
Mounting
Block
1/2" Lock
Wahsers
HPM-E
Cross-Pin
Mount
14
Mounted
Object
1/2" [13mm]
Washers
1/2"-20
Screws
Ø.52" [13mm]
Holes
1/2" Locknuts
1/2" Washers
1/2" Bolts
1/2"
Tapped
Holes
1/2" Bolts
