4.8 PARALLEL BAR CLAMP (HPM-G)

The parallel bar clamp is intended for use on a pair of round parallel bars between 1.5" and 2.0" diameter, spaced between 5" to 29"
apart, on center.

4.8.1 INSTALLING THE PARALLEL BAR CLAMP

The parallel bar clamp is intended for use on a pair of round parallel bars between 1.5" and 2.0" diameter, spaced between 5" to 29"
apart, on center. Care must be taken to ensure that the bars are strong enough, and have adequate support, to withstand the reaction
force of the water, the weight of the monitor, clamp, hose, water, and any attachments. For example, an OSHA standard hand rail
may only be required to support 200 lbs in any direction, while the reaction force alone created by this monitor can exceed 350 lbs.
1) Fully retract the 4 knobs by turning them counterclockwise until they have reached the travel stops.
2) Install the fixed bar clamp and secure with a cross-pin.
3) Install the fixed bar clamp by placing the clamshells over one of the parallel bars.
Close the clamshells, latch the eye bolts over the arms, and turn the knobs clockwise until snug.
4) Slide the floating bar clamp into position over the second parallel bar. Close the clamshells,
latch the eye bolts over the arms, and turn the knobs clockwise until snug.
5) Turn all four knobs an additional quarter turn to ensure they are snug.
6) Install the cross-pin mount in the desired position
on the backbone. Allow clearance for the monitor.
The cross-pin mount should be positioned either
between the bars or as close to one of them as
possible to minimize the amount of torque on the bars.
©Copyright Task Force Tips LLC 2013-2020
3, 5
All four clamshell clamps
are latched tight
5

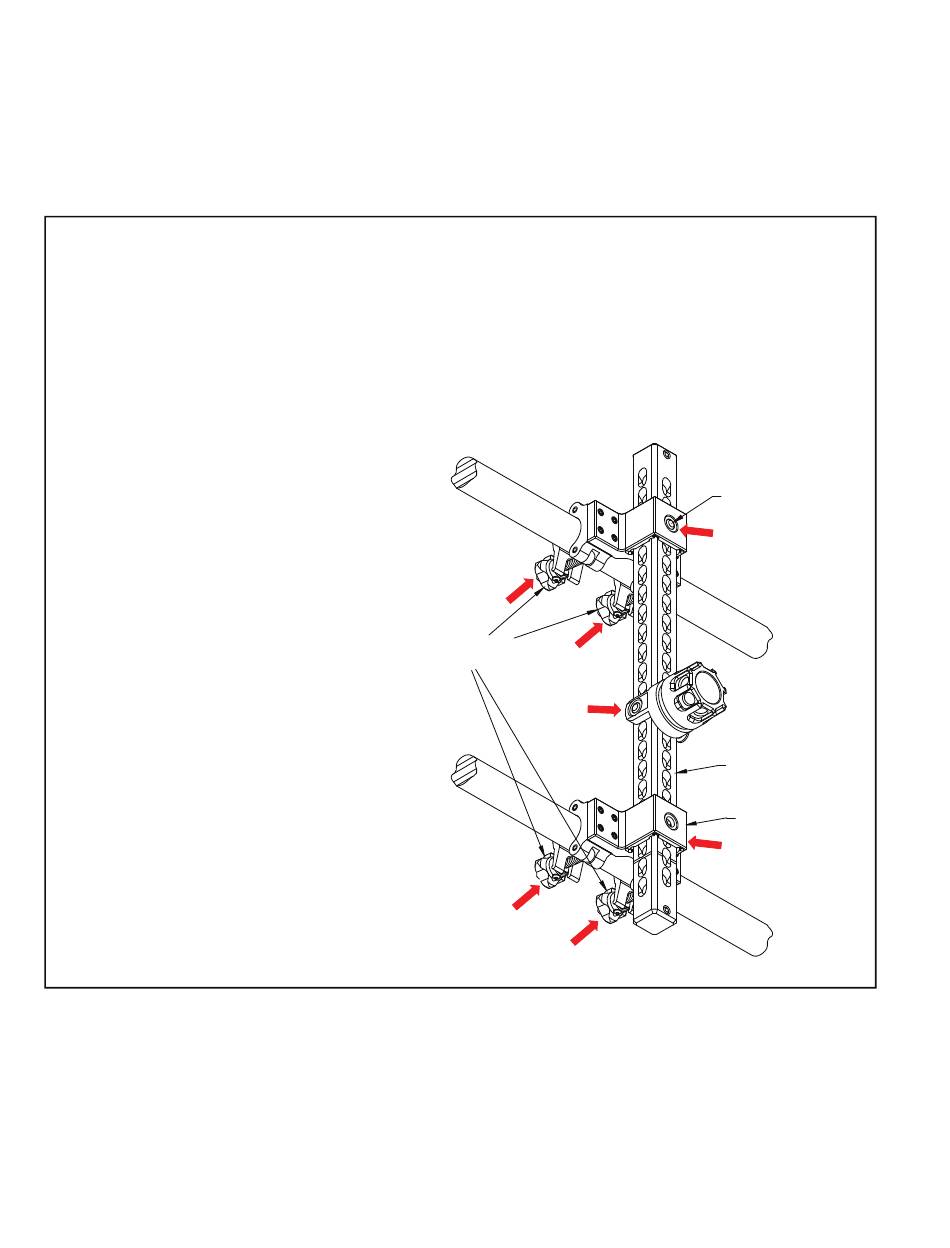

Figure 4.8.1
Installing the Parallel Bar Clamp
16
Fixed bar clamp
2
3, 5
6
Mount positioned with
clearance for monitor
4
5
Floating bar clamp
