INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
This Instruction Manual is intended to familiarize fi refi ghters and maintenance personnel with the operation, servicing, and safety
procedures associated with this product. This manual should be kept available to all operating and maintenance personnel.
Hurricane Extended
Hurricane Tiller for 4.5" Quick
Connect
and Valve Under Monitor
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2008-2014

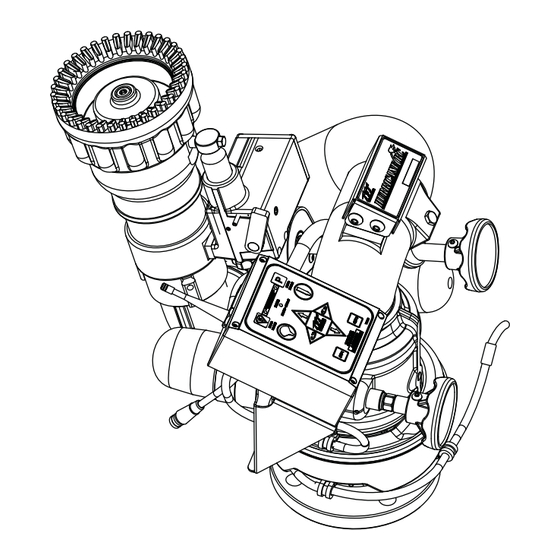

MANUAL: HURRICANE
& HURRICANE RC MONITOR
See Remote Control (RC) Monitor Electrical Controls
Supplemental Instructions For Use With Hurricane RC Models
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft.
com/serial-number
Hurricane
Hurricane Dual Handwheel
See Section 3.1 for Flow / Pressure
Operating Envelope
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIX-300 April 29, 2014 Rev18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HURRICANE and is the answer not in the manual?

Questions and answers

Related Manuals for Task Force Tips HURRICANE

Summary of Contents for Task Force Tips HURRICANE

  • Page 1 MANUAL: HURRICANE & HURRICANE RC MONITOR See Remote Control (RC) Monitor Electrical Controls Supplemental Instructions For Use With Hurricane RC Models INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE Understand manual before use. Operation of this device without understanding the manual and DANGER receiving proper training is a misuse of this equipment.

  • Page 2: Table Of Contents

    9.2 Hurricane Fixed Extended (XFIBE Series) 3.1 Mechanical Specifi cations 9.3 Hurricane Dual Handwheel (XFIH-D Series) 3.2 Part Identifi cation and Models 9.4 Hurricane Tiller for 4.5” Quick Connect and V.U.M. 3.3 Inlets and Outlets (XFIH-T Series) 3.4 Overall Dimensions 9.5 Hurricane RC Monitor (XFIH-E Series)

  • Page 3: Safety

    The Task Force Tips HURRICANE RC is an electric remote monitor, with a single low-profi le waterway discharge. It has high fl ow and low friction loss characteristics. See Operating Envelope for pressure and fl ow capabilities. Maintains a FULL 450° of rotational travel (225°...

  • Page 4: Mechanical Specifications

    Nozzle C fl ows 1000 gpm at 100 psi (7 bar), K factor = 100 Nozzle D fl ows 1250 gpm at 100 psi (7 bar), K factor = 125 Fig 3.1B Operating Envelope ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...

  • Page 5: Part Identification And Models

    TFT HURRICANE FIXED MONITOR FRICTION LOSS FLOW (L/min) 1000 2000 3000 4000 5000 30.0 25.0 20.0 15.0 10.0 1000 1200 1400 FLOW (GPM) Fig 3.1B Friction Loss 3.2 PART IDENTIFICATION AND MODELS PRESSURE GAGE PORT FLANGE XFI-FPNJ XFI-FPNJ Fig. 3.2A...
  • Page 6 STRAIGHTNER GREASE ZERK HORIZONTAL HANDWHEEL GREASE ZERK INLET AUTOMATIC DRAIN Fig. 3.2C Hurricane Dual Handwheel (XFIH-D series) CONTROL STATION BOX PORT FOR WITH CONTROL BUTTONS PRODUCT NAME LABEL PRESSURE GAGE WITH SERIAL # & MODEL # ELEVATION DRIVE ELEVATION HOUSING...

  • Page 7: Inlets And Outlets

    Inlet Flange Size Specifi cations The standard Hurricane RC Monitor inlet is CODE-RLF for direct connection to TFT’s Extend-A-Gun RC3. Monitor inlet CODE-RPF is available for direct connection to Extend-A-Gun RC4. The standard outlet is 2-½”-7.5 National Hose male. Various other inlet and outlet fi...

  • Page 8: Overall Dimensions

    (compatible with metric PN20) GREASE ZERK FOR HORIZONTAL SWIVEL GREASE ZERK WORM GEAR Fig 3.4A Hurricane Fixed Monitor Overall Dimensions w/3” ANSI 150 Flange hurricane 4" ANSI 150 Flange (compatible with metric PN20) GREASE ZERK FOR HORIZONTAL SWIVEL GREASE ZERK...
  • Page 9 Hurricane Fixed Monitor Overall Dimensions w/3” NPT Female Inlet hurricane 3" or 4" ANSI 150 Flange Extended Monitor Fig 3.4D Hurricane Fixed Extended Monitor Overall Dimensions w/3” or 4” ANSI 150 Flange ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 10 HEIGHTS) 45° 5.7" BELOW 3.4" [144mm] [87mm] 11.3" 10.4" [286mm] [265mm] 21.7" [551mm] Fig 3.4F Hurricane Dual Handwheel Overall Dimensions (XFIH-D series) 360° CONTINUOUS RANGE OF MOTION 4.4" [111mm] 14.0" R11.3" [357mm] [R287mm] 9.7" SWING RADIUS [246mm] hurricane 14.5" [367mm] 90°...
  • Page 11 [ 140 MM ] [ 273MM ] 5.89 ( SEE FIG 3.4F [ 150MM ] 16.24 ADDITIONAL [ 413MM ] HEIGHTS ) hurricane rc Fig 3.4E Hurricane RC Overall Dimensions ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...

  • Page 12: Installation

    4.1.1 WATER SUPPLY The HURRICANE Monitor is mounted on a riser pipe by a bolted fl ange joint. Make sure that the area around the monitor is free from obstructions which would limit its range of motion and usefulness. If a valve is mounted under the HURRICANE, make sure the monitor will not interfere with the valve handle.
  • Page 13 #271 on the threads of the Button Head Cap Screws. Allow Loctite to fully cure before applying water (This version shown without power cable guide for purposes of illustration) pressure. Fig 4.2.1A 3” Inlet Fitting Connection ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 14 Straight Back Reference Mark on the monitor. NOTE: Hurricane RC monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fi tting is also supplied and is to be used where the nylon tubing and wire pass though the deck.

  • Page 15: Horizontal Rotation Travel Stops

    4.2.2 HORIZONTAL ROTATION TRAVEL STOPS The range of Horizontal (left-right) travel for the Hurricane RC monitor is limited to 450 degrees or 225 degrees from either side of a nozzle discharge position. Horizontal (left-right) travel stop bolts may be installed in the monitor to limit travel as shown in fi gure 4.2.2A and 4.2.2B.

  • Page 16: Vertical Rotation Travel Stops

    4.2.3 VERTICAL ROTATION TRAVEL STOPS The range of elevation travel for the Hurricane RC monitor is shown in Fig. 4.2.3A. The elevation range of travel may be reduced by installing Adjustment Disks as shown in Fig. 4.2.3B. The range of elevation travel for the Hurricane monitor is shown in Fig 4.2.3C.

  • Page 17: Pressure Gage Port

    5.1 HORIZONTAL ROTATION CONTROL The HURRICANE can rotate from side to side on its swivel base. Lift the rotation lock lever and rotate the monitor right or left using the handle mounted on the top of the monitor. To lock the monitor in position depress the rotation lock lever. A small spring holds the rotation lock lever in the unlocked position when it is disengaged.

  • Page 18: Flows And Pressures

    6.0 FLOWS AND PRESSURES The Hurricane and Hurricane RC monitor is designed for a maximum pressure of 200 psi (14 bar). See section 3.1 for fl ow pressure operating envelope. Do not exceed these limits. The stream exiting a monitor is very powerful and capable of causing injury and property damage.
  • Page 19 HORIZONTAL DISTANCE (M) 80.0 60 PSI 80 PSI 100 PSI 40 PSI 40.0 80.0 120.0 160.0 200.0 240.0 280.0 HORIZONTAL DISTANCE (FEET) Fig 6.1C Stacked Tips Stream Trajectory Graphs ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 20 NO WIND HORIZONTAL DISTANCE (FEET) This graph shows approximately how a moderate wind can affect stream reach. 1 ft = 0.3048 m Fig 6.1E Effects of Wind on Reach ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...

  • Page 21: Automatic Masterstream Nozzles

    When using a fog nozzle, it is recommended that no stream straightener be used since the fog nozzle’s fl ow path generally serves as a stream straightener. Use of a stream straightener with a fog nozzle will increase the stress on the monitor’s gear train and may lead to premature wear. ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...

  • Page 22: Maintenance And Inspection

    Any inoperable or damaged parts should be repaired or replaced immediately. • For Hurricane Fixed Monitor make sure that the monitor swivels freely on its base when the anti-rotation lock is released and that the monitor will not rotate when the anti-rotation lock is engaged.

  • Page 23: Hurricane Fixed (Xfi Series)

    9.1 HURRICANE FIXED (XFI- SERIES) 9.2 HURRICANE FIXED EXTENDED (XFIE-SERIES) 9.3 HURRICANE DUAL HANDWHEEL (XFIH-D SERIES) 9.4 HURRICANE TILLER FOR 4.5” QUICK CONNECT AND VUM (XFIH-T SERIES) 9.5 HURRICANE RC MONITOR (XFIH-E SERIES) 9.6 ELEVATION CHAIN DRIVE ASSEMBLY 9.7 GEAR MOTOR ASSEMBLY 9.8 MONITOR CONTROL BOX ASSEMBLY...
  • Page 24 9.1 HURRICANE FIXED (XFI SERIES) ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 25 ROTATION LOCK LEVER SPRING X152 ROTATION LOCK INSERT X170 DRAIN VALVE SUBASSEMBLY X840 O-RING-130 VO-130 O-RING-241 VO-241 5/16" SS BALL VB.312 ELBOW ALUM 2.5" X339* * - CONSULT FACTORY FOR SPECIAL THREADS ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 26 9.2 HURRICANE FIXED EXTENDED (XFIE SERIES) ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 27 ROTATION LOCK LEVER SPRING X152 ROTATION LOCK INSERT X170 DRAIN VALVE SUBASSEMBLY X840 O-RING-130 VO-130 O-RING-241 VO-241 5/16" SS BALL VB.312 ELBOW ALUM 2.5" X339* * - CONSULT FACTORY FOR SPECIAL THREADS ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 28 9.3 HURRICANE DUAL HANDWHEEL (XFIH-D SERIES) ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 29 25 5/16" TORLON BALL (49) PER RACE 136 VB.312TO 45 O-RING-241 VO-241 46 5/16" SS BALL 38 VB.312 47 ELBOW ALUM 2.5" X333* * - CONSULT FACTORY FOR SPECIAL THREADS ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 30 9.4 HURRICANE TILLER FOR 4.5” QUICK CONNECT AND VUM (XFIH-T SERIES) ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 31 43 1/4-20 X 1/2 BUTTON HEAD SCREW VT25-20BH500 24 5/16" TORLON BALL (49) PER RACE 136 VB.312TO 44 KNOB Z245 45 O-RING-241 VO-241 46 ELBOW ALUM 2.5" X333* * - CONSULT FACTORY FOR SPECIAL THREADS ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 32 9.5 HURRICANE RC MONITOR (XFIH-E SERIES) ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 33 10-24 X 1 1/4 SOCKET HEAD SCREW VT10-24SH1.2 CYLINDER NUT Y4437 3/8-24 X 5/16 SOCKET SET SCREW VT37F24SS312 10-32 X 1/4 SOCKET SET SCREW VT10-32SS250 * - CONSULT FACTORY FOR SPECIAL THREADS ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 34 CUP SEAL 1.0625 x .5625 x 1/4 Y4620 MOTOR SOCKET Y4615 O-RING-018 VO-018 CONDUIT FITTING Y5213 HOSE - 3/8” ID PUSH-LOK Y5250 O-RING-038 VO-038 GEAR MOTOR WITH ENCODER Y4611 ENCLOSURE Y4616 ©Copyright Task Force Tips, Inc. 2008-2014 LIX-300 April 29, 2014 Rev18...
  • Page 35 O-RING-018 VO-018 CONDUIT HOSE FITTING Y5213 FEMALE PLUG - 6 POLE 10.0” TOTAL LENGTH USED Y5475 FOR HURRICANE RC NOZZLE CONNECTION 5.0” EXPOSED CABLE (not including plug) BOARD-OEM 900 MHZ RF MODULE Y5710 (included with part YE-RF-900) ANTENNA W/FITTING Y5881 ©Copyright Task Force Tips, Inc.

  • Page 36: Warranty

    Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 (“TFT”) warrants to the original purchaser of its Hurricane and Hurricane RC Monitor (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the fi...
