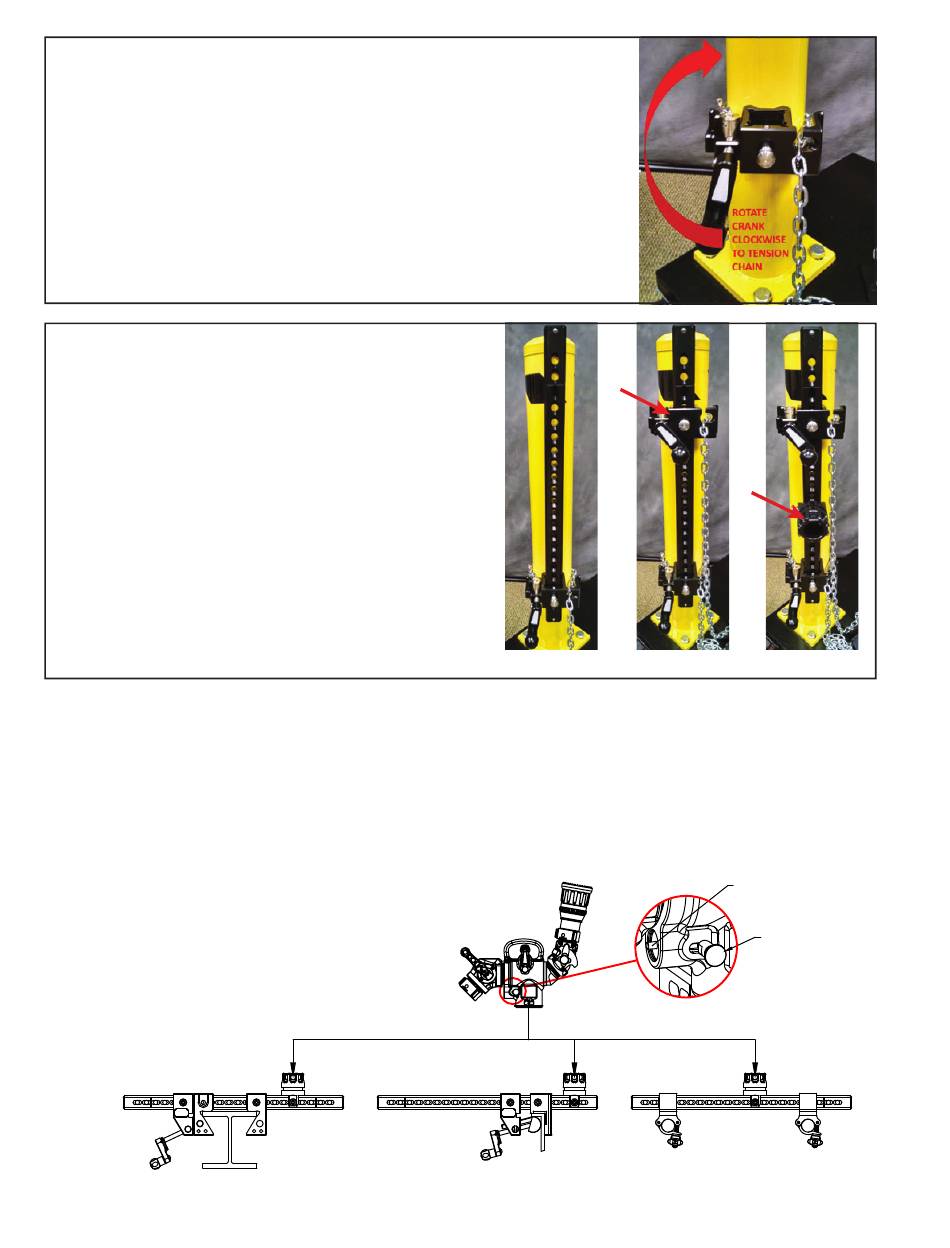

6) With the pull pin engaged, rotate the crank clockwise to tension the chain.
Double check that the chain in laid straight and secure.
7) Disengage the pull pin. Slide the backbone into the chain
block and re-engage the pull pin through a hole in the backbone
at the desired location.
8) Slide the second chain block over the backbone and engage
the pull pin in the desired backbone hole.
Repeat steps 4 through 6 to install the chain.
9) Install the cross-pin mount in the backbone. Secure with
a cross-pin. Allow clearance for the monitor.
10) Verify that all cross-pins are fully engaged, chains are tight
by attempting to shake the clamp. If the clamp moves in
relation to the mounting object, tighten the cranks or chain
to secure.

5.0 OPERATING INSTRUCTIONS

5.1 INSTALLING THE MONITOR ONTO THE MOUNT

The Hemisphere monitor is designed to be installed by one person by sliding the socket at the base of the monitor onto a mount.
The monitor is not attached until the monitor release pin seats in the annular groove on the lower portion of the mount. Attachment
should always be verified by attempting to pull the monitor off the mount.
It is recommended that the mount be in place and secured before attaching the monitor. The monitor can be installed with or without
a hose attached, but it often requires less effort to line up and orient the monitor without an attached hose.
HPM-A I-Beam Clamp
©Copyright Task Force Tips LLC 2013-2020
Install Backbone
in 1st Chain Block
Figure 4.9.2B
HPM-F Tank Lip Clamp
Figure 5.1
Installing the Monitor
20
Install 2nd Chain Block Install Cross-Pin Mount
on Backbone
on Backbone
Pressurized Pin
Position Indicator
Rotation Lock
Release Lever
HPM-G Parallel
Bar Clamp
