4.1.1 MAXIMUM FLANGE DIMENSIONS

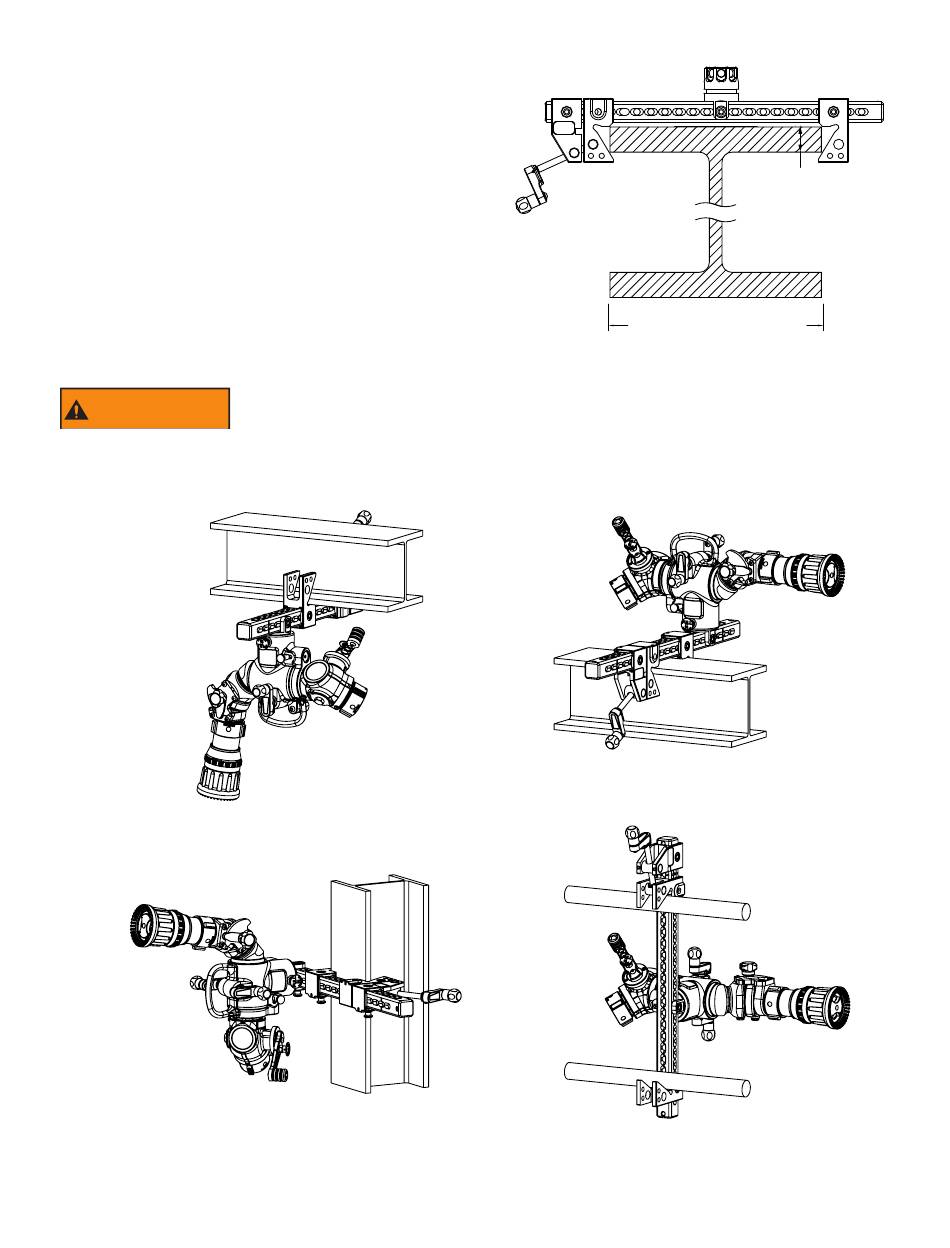

Figure 4.1.1A shows the maximum flange thickness and
width to which the I-beam clamp is designed to attach. These
dimensional maximums should not be exceeded. Parallel
beams of round and angle cross-section (as would commonly
be encountered on hand rails), or any other cross-sectional
shapes, must not exceed these dimensions.
Exceeding the maximum flange dimensions will compromise the ability of the clamp to maintain
WARNING
a fixed position, resulting in an out of control monitor. To avoid injury, death, and/or property
damage from an out of control monitor, do not install I-beam clamps on any flange with a thickness
exceeding 2-1/2" (38 mm) or a width exceeding 21" (534 mm).
Several orientations are possible when clamping to I-beams, stair rails, and other suitable geometry. Figure 4.1.1B shows some
examples of possible orientations.
