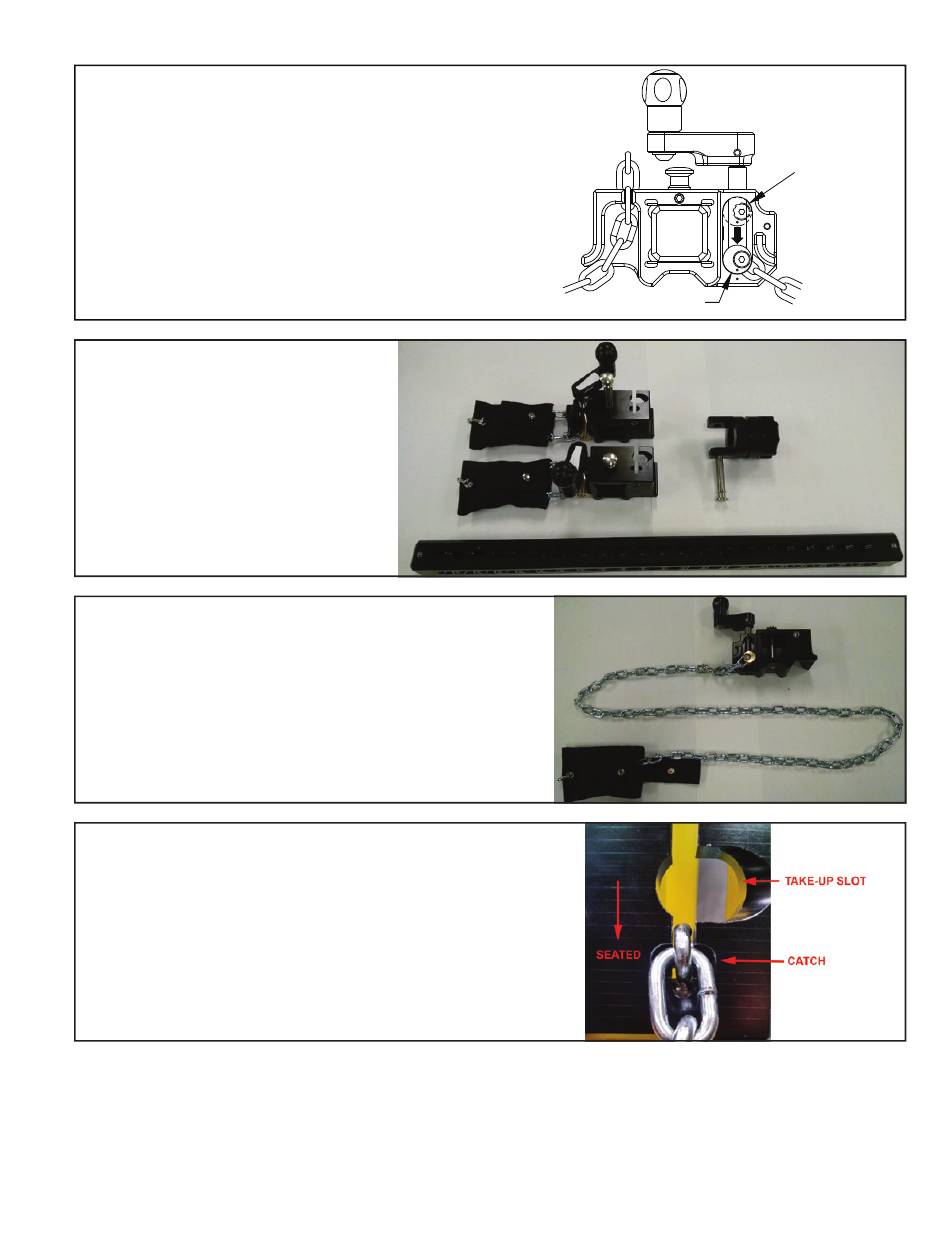

4.9.2 INSTALLING THE FLEX CLAMP

1) Verify that the chain tensioners on each chain block
are in the installation position by rotating the crank
counterclockwise until the tensioner stops at the bottom.
2) Separate the chain blocks
and cross-pin mount from the backbone.
3) Release the chain from each bag by unlatching
the bag strap. Inspect the chain to verify that it is
not twisted, knotted, kinked, or damaged.
4) Wrap the chain around the mounting object
and slide it into the take-up slot on the chain block.
Pull the chain tight.
5) Slide a chain link into the catch. A magnet will help
hold the chain in the catch. Verify that the chain is tight
and secure in the catch.
©Copyright Task Force Tips LLC 2013-2020
Installationion Position
Figure 4.9.2A
Installing the Flex Clamp
19
Tension
Position
LIX-740 July 21, 2020 Rev08
