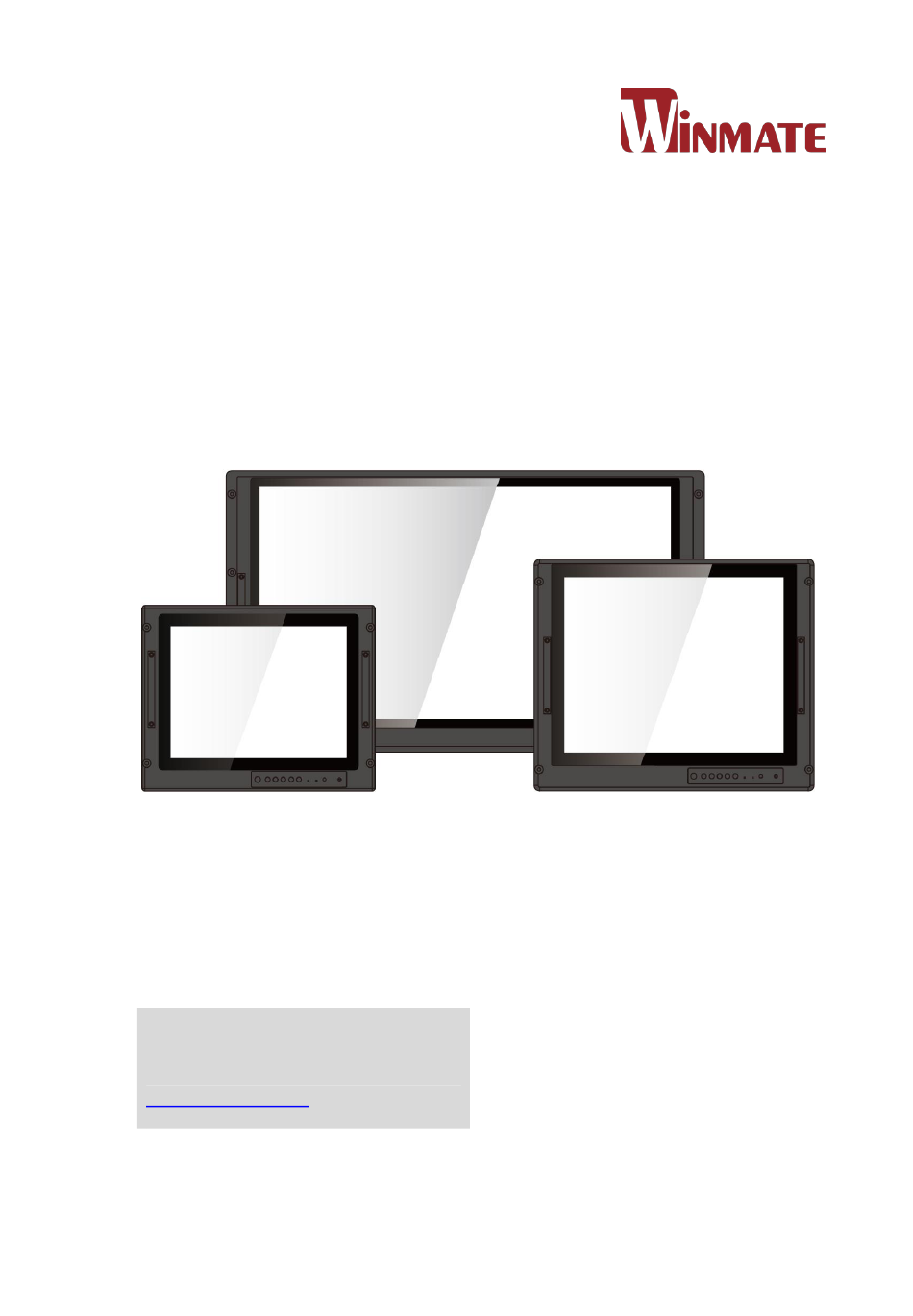

15~32" P-Cap Rack Mount
User Manual
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111I109B
Please read this instructions before operating the device and retain them for future reference.
Military Display
Model No.R15L600-MLA3FP
R17L100-MLA1FP
R19L100-MLA3FP
W24L100-MLA2FP
W32L100-MLA3FP
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate R15L600-MLA3FP
Summary of Contents for Winmate R15L600-MLA3FP
- Page 1 R17L100-MLA1FP R19L100-MLA3FP W24L100-MLA2FP W32L100-MLA3FP User Manual V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I109B Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
User Manual Contents CONTENTS PREFACE - 3 - ABOUT THIS USER MANUAL - 8 - CHAPTER 1: INTRODUCTION - 10 - 1.1 Product Features ............... - 10 - 1.2 Package Contents ..............- 11 - 1.3 Rear Components ..............- 12 - 1.4 Panel Controls ................ -
Page 3: Preface
User Manual Preface PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 User Manual Preface Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 5 User Manual Preface European Union This equipment is in conformity with the requirement of following legislations harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014...
- Page 6 User Manual Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 7 User Manual Preface Safety Information WARNING! This monitor is equipped with Mini USB port, signals and power is obtained from standard USB 2.0 or USB 3.0 port. Do not expose this unit in the rain or moisture environment to damage the monitor.
-
Page 8: About This User Manual
User Manual About This User Manual ABOUT THIS USER MANUAL This User Manual provides information about using the 15~32” P-Cap Rack Mount Display. The documentation set provides information for specific user needs, and includes: 15~32” P-Cap Rack Mount Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 9: Chapter 1: Introduction
User Manual Chapter 1 Introduction INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. - 9 -... -
Page 10: Product Features

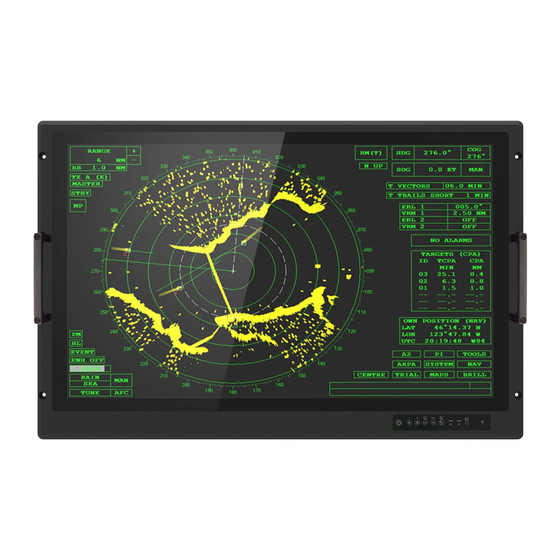

Chapter 1 Introduction CHAPTER 1: INTRODUCTION Congratulations on purchasing Winmate® 15~32” P-Cap Rack Mount Military Display. Military Grade Display features anti-corrosive coating with aluminum alloy housing withstands the harshest military environments. Armored power connector MIL-DTL-38999 Type I initially developed for aerospace industry perfectly fit in our Military grade product line. -
Page 11: Package Contents
User Manual Chapter 1 Introduction 1.2 Package Contents Carefully remove the box and unpack your display. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard package includes: User Manual Power Cord... -
Page 12: Rear Components
User Manual Chapter 1 Introduction 1.3 Rear Components Display connectors are located on the bottom rear side of the display. *Notice that this is a picture for reference. I/O position varies by display size. Refer to the section 1.5 Dimensions of this user manual to check mechanical drawing and I/O position. -
Page 13: Panel Controls
User Manual Chapter 1 Introduction 1.4 Panel Controls Panel controls are located on the front side of the display. Control Function Power Press to turn on or turn off the display. Down Press this key to decrease screen brightness. Use to navigate items of a single OSD menu. Press this key to increase screen brightness. -
Page 14: Dimensions
User Manual Chapter 1 Introduction 1.5 Dimensions 15-inch Display, R15L600-MLA3FP Unit: mm Dimensions: 402 x 321 x 70 17-inch Display, R17L100-MLA1FP Unit: mm Dimensions: 482 x 399.3 x 79.6 - 14 -... - Page 15 User Manual Chapter 1 Introduction 19-inch Display, R19L100-MLA3FP Unit: mm Dimensions: 482.6 x 399.3 x 76.9 24-inch Display, W24L100-MLA2FP Unit: mm Dimensions: 635.2 x 430.9 x 66 - 15 -...
- Page 16 User Manual Chapter 1 Introduction 32-inch Display, W32L100-MLA3FP Unit: mm Dimensions: 825 x 486 x 88.5 - 16 -...
-
Page 17: Chapter 2: Installation
User Manual Chapter 2 Installation INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. - 17 -... -
Page 18: Wiring Requirements
User Manual Chapter 2 Installation CHAPTER 2: INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. CAUTION/ ATTENTION Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. -
Page 19: Mounting The Display
User Manual Chapter 2 Installation 2.2 Mounting the Display The Military Display supports different mounting options. Refer to sub-sections below for more details. 2.2.1 Console/ Rack Mount The main mounting approach for military applications is rack mount - very user- friendly in terms of installation. -
Page 20: Vesa Mount
3. Place the device on VESA bracket. 4. Follow instructions supplied with your mounting kit. 5. Connect cables, power on the display. VESA Mount Installation *Notice that VESA stand and mounting kit are not provided by Winmate. Size VESA Plate Screw Size 15”... -
Page 21: Powering On
User Manual Chapter 2 Installation 2.2 Powering On Follow the recommendations below when powering on the equipment. Plug-in the power cord to easy accessible AC outlet. Plug-in the AC adapter to a grounded outlet. ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. -
Page 22: Connecting To Ac Input Power Source (Default)
User Manual Chapter 2 Installation 2.2.1 Connecting to AC Input Power Source (Default) AC Power Input Requirements: AC 100~240V, Universal, ±10% Connect one end of the Military Grade power connector MIL-DTL-38999/1 to the Display (CN2), and plug the other end of the power connector (CN1) in to a working AC outlet. -
Page 23: Connecting To Dc Input Power Source (Optional)
User Manual Chapter 2 Installation 2.2.2 Connecting to DC Input Power Source (Optional) DC Power Input Requirements: 9~36V DC. 1. Insert the exposed wires of the DC Power Cable to the appropriate connectors on the terminal block plug. 2. Plug the terminal block plug firmly to the DC IN Jack. 3. -
Page 24: Connecting Other Devices
User Manual Chapter 2 Installation 2.3 Connecting Other Devices Use VGA, BNC or DVI-D cable to connect your display to external device. Connect RS232 cable for touch capabilities. CAUTION/ ATTENTION! Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection. -
Page 25: Bnc Connector
User Manual Chapter 2 Installation 2.3.2 BNC Connector Plug one end of VGA signal cable to the rear side of the PC system and the other end of 5BNCs (R, G, B, H, V) signal connector to the Display. VGA to 5 BNCs Signal Shielding Cable 2.3.3 DVI-D Connector Plug one end of the DVI signal cable to the video signal connector (DVI-D digital only) at the rear of the PC system and the other end to the Display. -
Page 26: Hdmi Connector
User Manual Chapter 2 Installation 2.3.4 HDMI Connector Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the monitor. HDMI Cable HDMI Connector Pin Assignment and Signal Names Pin №... -
Page 27: Chapter 3: Operating The Device
User Manual Chapter 3 Operating the Device OPERATING THE DEVICE This chapter provides detailed information on how to operate the display. - 27 -... -
Page 28: Navigating The Osd Menu
User Manual Chapter 3 Operating the Device CHAPTER 3: OPERATING THE DEVICE In this chapter you will find instructions on how to operate the display. 3.1 Navigating the OSD Menu This section describes how to navigate the OSD Menu. OPTION ACTION EFFECT Display the main menu... -
Page 29: Osd Menu In Vga Mode
User Manual Chapter 3 Operating the Device 3.2 OSD Menu in VGA Mode This section describes how to navigate the OSD Menu in VGA Mode. Navigation buttons in VGA Mode BRIGHTNESS CONTRAST VOLUME BRICONTRAST AUTO BRIGHTNESS AUDIO ADJUST LED LIGHT SPEAK ON/OFF MIN BRIGHTNESS ANALOG 1... - Page 30 User Manual Chapter 3 Operating the Device IMAGE You can adjust the value of screen quality automatically. • AUTO: Use to choose the best settings for the current input signal • CLOCK: Use to adjust the value of horizontal image •...
- Page 31 User Manual Chapter 3 Operating the Device RECALL You can recall the factory default setting by selecting “YES”. Select “NO” to return the main menu. OSD EXIT You can exit the OSD menu by selecting “YES”. Select “NO” to return the main menu.
-
Page 32: Osd Menu In Dvi Mode
User Manual Chapter 3 Operating the Device 3.3 OSD Menu in DVI Mode This section describes how to navigate the OSD Menu in DVI Mode. Navigation buttons in DVI Mode VOLUME BRIGHTNESS BRICONTRAST AUDIO ADJUST CONTRAST SPEAK ON/OFF ANALOG 1 Not available in DVI POSITION CHANNEL... - Page 33 User Manual Chapter 3 Operating the Device AUDIO (optional) You can adjust the setting of speaker, including volume and mute. • VOLUME ADJUST: Use to adjust the volume of speaker • SPEAK ON/OFF: Use to make the speaker work or mute RECALL You can recall the factory default setting by selecting “YES”.
-
Page 34: Appendix A: Technical Specifications
User Manual Appendix A Technical Specifications TECHNICAL SPECIFICATIONS This section includes technical specifications. Appendix - 34 -... - Page 35 User Manual Appendix A Technical Specifications APPENDIX A: TECHNICAL SPECIFICATIONS R15L600- R17L100- R19L100- W24L100- W32L100- MLA3FP MLA1FP MLA3FP MLA2FP MLA3FP Display: Size 15” 17” 19” 24” (Widescreen) 32” (Widescreen) Resolution 1024 x 768 1280 x 1024 1280 x 1024 1920 x 1080 1920 x 1080 Active 304.1 (H) x...
-
Page 36: Appendix B: Military Grade Compliance
User Manual Appendix B Military Grade Compliance MILITARY GRADE COMPLIANCE This section includes description of military grade compliance. Appendix - 36 -... - Page 37 User Manual Appendix B Military Grade Compliance APPENDIX B: MILITARY GRADE COMPLIANCE This section includes description of military grade compliance. Military Grade EMC Compliance EMC (MIL-STD 461E/F Compliance) EMC Test Spec Type of Test Frequency Range Requirement 30Hz ~ 1kHz :110 dB 1k- CE101 Conducted Emissions 30Hz ~10kHz...
-
Page 38: Appendix C: Maintenance
User Manual Appendix C Maintenance MAINTENANCE This section includes supported frequency range of available video inputs. Appendix - 38 -... - Page 39 User Manual Appendix C Maintenance APPENDIX C: MAINTENANCE This equipment is extremely rugged and does not require a lot of maintenance. Remember that electrical equipment should be handled with care and used accordingly to its specifications. Cleaning the Display Screen ...
- Page 40 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw www.winmate.com...
