- Page 1 15” Full IP65 P-Cap Stainless Display R15L600-65A1FTP User Manual Version 1.0 Document Part Number: 91521110103T Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
15" Full IP65 P-Cap Stainless Display User Manual Contents Preface About This User Manual Chapter 1: Introduction 1.1 Overview ........................8 1.2 Product Features ...................... 8 1.3 Package Contents ....................8 1.4 Product Overview ..................... 9 1.5 Physical Buttons and LED Indicators ............... 9 1.6 Connector Description .................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 15" Full IP65 P-Cap Stainless Display User Manual Naming Rule R15L600-65A1FTP Item Description Panel Type Panel Size LXXX Panel Specifications Mechanical Type (Full IP65) Panel Model Feature (Flat P-Cap) Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury.
- Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
-
Page 6: About This User Manual
About This User Manual This User Manual provides information about using the Winmate® 15” Full IP65 P-Cap Stainless Display. The documentation set provides information for specific user needs, and includes: Full IP65 P-Cap Stainless Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 8: Overview

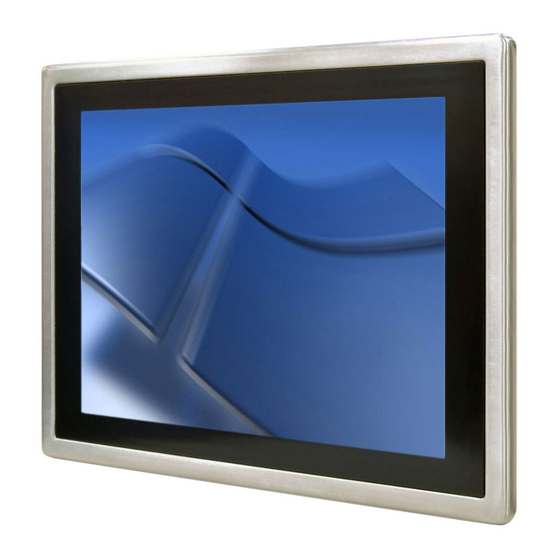

15" Full IP65 P-Cap Stainless Display User Manual 1.1 Overview Congratulations on purchasing Winmate® 15” Full IP65 P-Cap Stainless Display. Winmate multipurpose and waterproof fully sealed IP65 display is protected against outer dust and water splash, and ideal for use in harsh environments such as food processing and packaging automation, food processing and packaging automation. -
Page 9: Product Overview
Chapter 1: Introduction 1.4 Product Overview This section describes physical appearance of the Display. 15-inch, R15L600-65A1FTP Unit: mm 1.5 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Display. -
Page 10: Connector Description
15" Full IP65 P-Cap Stainless Display User Manual Physical Buttons Icon Button Description Press to decrease the volume or volume DOWN/ VOLUME DOWN down when without OSD menu. Press to increase the value or volume up UP/ VOLUME UP when without OSD menu. Press to exit the menu or auto adjustment ESC/ AUTO when without OSD menu. -
Page 11: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 12: Wiring Requirements
2.2 VESA Mount Display has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA mount bracket. Notice that VESA stand and mounting kit are not provided by Winmate. Caution/ Attention Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. -
Page 13: Cable Mounting Considerations
Chapter 2: Installation 2.3 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. Caution/ Attention Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection. -
Page 14: Connecting Peripherals
15" Full IP65 P-Cap Stainless Display User Manual 2.5 Connecting Peripherals The panel control port is designed for monitors that work with a variety of compatible video sources. Due to the possible deviations between these signal sources, you may have to make adjustments to the monitor settings from the OSD menu when switching between these sources. -
Page 15: Power Cable
Chapter 2: Installation 2.5.1 Power Cable The Full IP65 Chassis Display has M25 type connectors. Use power cable to connect display to the source of power. The display support 12V DC power input. 2.5.2 USB Cable for Touch The display may have optional M25 type USB connector for touch based on your order. Use USB cable to connect touch. -
Page 16: Rs-232 Cable For Remote Control
15" Full IP65 P-Cap Stainless Display User Manual 2.5.3 RS-232 Cable for Remote Control The display may have optional M25 type serial port connector based on your order. Use serial cable to adjust monitor. -
Page 17: Vga Cable
Chapter 2: Installation 2.5.4 VGA Cable The display has M25 type VGA connector. Use VGA cable to connect the display to other external devices. 2.5.5 USB Cable for Touch The display has M25 type USB connector for touch. Use USB cable to connect touch. -
Page 18: Chapter 3: Operating The Device
15" Full IP65 P-Cap Stainless Display User Manual Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 19: Turning On And Off The Device
Chapter 3: Operating the Device 3.1 Turning On and Off the Device To turn on the system: 1. Remove the protective cap of the DC IN jack. 2. Plug the AC adapter to the DC-in jack of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning it clockwise) to secure the connection. -
Page 20: Osd Menu Navigation
15" Full IP65 P-Cap Stainless Display User Manual 3.2 OSD Menu Navigation OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100 CONTRAST slider bar Default 50 BRICONTRAST Use to adjust the screen’s contrast. Range 0 to 100 H POSITION slider bar Default 50... -
Page 21: Troubleshooting Guide
Chapter 3: Operating the Device 3.3 Troubleshooting Guide If your monitor fails to operate correctly, check the following chart for possible solution before calling for repairs: Condition Check Point • Check if the signal cable is firmly seated in the socket. The picture does not •... -
Page 22: Appendix
15" Full IP65 P-Cap Stainless Display User Manual Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 23: Appendix A: Hardware Specifications
Appendix Appendix A: Hardware Specifications Model R15L600-65A1FTP Item Specifications Display Panel Size 15-inch Resolution 1024x768 Active Display Area 304.128 (H) x 228.096 (V) mm Pixel Pitch 0.297(H) x 0.297(V) Contrast Ratio 700:1 Brightness 400 nits Viewing Angles -80~80 ; -70~70 Max Colors 16.7M, 8-bits... -
Page 24: Appendix B: Frequency Table
15" Full IP65 P-Cap Stainless Display User Manual Appendix B: Frequency Table The choice of supported modes depends on the monitor native resolution. Refer to the table below for more information about available input signals. Signal name Vertical Frequency (Hz) ✔... -
Page 25: Appendix D: Projected Capacitive Touch Screen
Appendix Appendix D: Projected Capacitive Touch Screen Projected Capacitive Touch (P-CAP) technology is a variant of capacitive touch technology. All PCAP touch screens are made up of a matrix of rows and columns of conductive material, layered on sheets of glass. Projected capacitive technology enables touches to be sensed through a protective layer in front of a display, allowing touch monitors to be installed behind store windows or vandal-resistant glass. - Page 26 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 27 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
