- Page 1 15” G-WIN Military Display R15L100-MLC3HB User Manual Version 1.0 Document Part Number: 915211101039 Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
15" G-WIN Military Display User Manual Contents Preface ........................... 3 About This User Manual ..................... 7 Chapter 1: Introduction ....................8 1.1 About G-WIN Military Display ................9 1.2 Product Features ....................9 1.3 Package Overview ....................9 1.4 Product Overview ....................10 1.5 External Connectors ................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 15" G-WIN Military Display User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
- Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celui-ci.
- Page 6 15" G-WIN Military Display User Manual Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
-
Page 7: About This User Manual
Preface About This User Manual This User Manual provides information about using the Winmate® G-WN Military Display. The documentation set provides information for specific user needs, and includes: G-WIN Military Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 8: Chapter 1: Introduction
15" G-WIN Military Display User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: About G-Win Military Display
MIL-STD 810F that withstands shocks and vibration. 1.2 Product Features Winmate® G-WIN Military Display features: 15” LCD Full IP65 dust and water protection Aluminum housing with anti-corrosion treatments ... -
Page 10: Product Overview

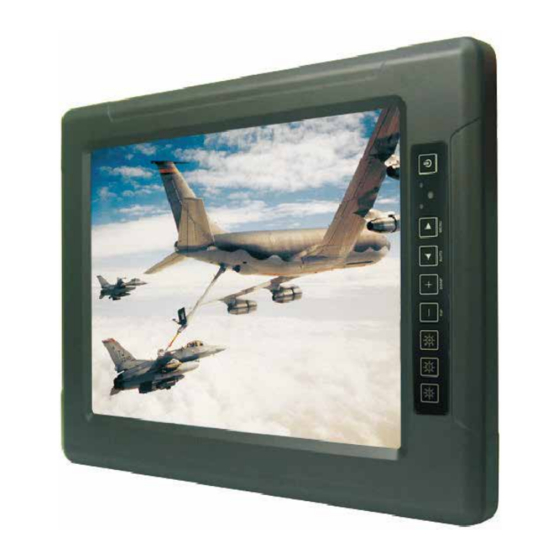

15" G-WIN Military Display User Manual 1.4 Product Overview This section describes physical appearance of the G-WIN Military Display. All dimensions shown in mm. R15L100-MLC3HB... -
Page 11: External Connectors
Chapter 1: Introduction 1.5 External Connectors Terminal interfaces are located on the rear bottom side of the display. Item Description Power Input - Military grade lockable power connector (MS27467T9F98S). Example: DC power supply. VGA - Transmits video from a PC to a monitor. Example: A notebook PC to a monitor. -
Page 12: Chapter 2: Installation
15" G-WIN Military Display User Manual Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 13: Mounting Guide
3. Carefully mount the device to the fixture (for ex. wall). 4. When the installation is complete, plug the power cord into a grounded AC outlet. Turn on the power. *Notice that VESA stand and mounting kit are not provided by Winmate... -
Page 14: Cable Mounting Considerations
15" G-WIN Military Display User Manual 2.2 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the display. Warning!/ Avertissement! Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection. - Page 15 Chapter 2: Installation Connecting to Power Source Connect a power cable to military power connector located on the back side of the display. Connect open wires to the source of power.
-
Page 16: Connecting Peripherals
15" G-WIN Military Display User Manual 2.4 Connecting Peripherals The 15-inch G-WIN Military Display feature military grade connectors: Power, VGA and RS-232 for touch. 2.5 Connector Description 2.5.1 Power Input Connector The display has one 3-pin military grade lockable power input connector (MS27467T9F98S). Pin assignment and signal names of power input connector Signal Name VCC+... -
Page 17: Vga Connector
Chapter 2: Installation 2.5.2 VGA Connector The display has one 13-pin VGA connector (JY27466T11F35PN) for video input. 2.5.3 RS-232 Connector for Touch The display has one 13-pin RS-232 connector (JY27466T11F35PN) for touch. -
Page 18: Chapter 3: Operating The Device
15" G-WIN Military Display User Manual Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 19: Turning On/ Off The System
Chapter 3: Operating the Device 3.1 Turning On/ Off the System To turn on the system: 1. Connect VGA cable to the connector of your device. 2. Connect the other side of VGA cable to external computer. 3. Turn on the external computer. 4. -
Page 20: On-Screen Display Menu Navigation
15" G-WIN Military Display User Manual 3.3 On-Screen Display Menu Navigation OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100. CONTRAST slider bar Default 50 BRICONTRAST Use to adjust the screen’s contrast. Range 0 to 100. H POSITION slider bar Use to adjust the image to the left or right on the screen. -
Page 21: Appendix
Appendix Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 22: Appendix A: Specifications
15" G-WIN Military Display User Manual Appendix A: Specifications R15L100-MLC3HB Display Size/ Type 15-inch Resolution 1024 x 768 Brightness 800 nits Contrast Ratio 700:1 (typ.) Viewing Angle 80,80,70,70 Max Colors 16.2M Touch AR Glass (Default), 5 Wire Resistive (Optional), EMI glass/Touch (By request) -
Page 23: Appendix B: Frequency Table
Appendix Appendix B: Frequency Table The choice of supported modes depends on the monitor native resolution. Refer to the table below for more information about available input signals. Signal name Vertical Frequency (Hz) ✔ ✔ ✔ ✔ 640 x 480 ✔... -
Page 24: Appendix C: Military Grade Compliance
15" G-WIN Military Display User Manual Appendix C: Military Grade Compliance This section includes description of military grade compliance. Military Grade EMC Compliance EMC (MIL-STD 461E/F Compliance) EMC Test Spec Type of Test Frequency Range Requirement 30Hz ~ 1kHz :110 dB 1k- CE101 Conducted Emissions 30Hz ~10kHz... -
Page 25: Appendix D: Remote Control Commands
Appendix Appendix D: Remote Control Commands Remote Set Control Command Function Length Command index Value Checksum(*1) 1 Auto 0x05 0x40 0x01 0=Auto 0xBA=Auto 2 Recall 0x05 0x40 0x02 0=Recall 0xB9=Recall 3 White Balance 0x05 0x40 0x03 0=White Balance 0xB8=White Balance 0=VGA 0xB7=VGA 2=CVBS 1... - Page 26 15" G-WIN Military Display User Manual Remote Get Control Command Command(Tx) Acknowledgement(Rx) Checksum Checksum Function Length Command index Length index Value (*1) (*1) 0=VGA 0xF8=VGA 2=CVBS 1 0xF6=CVBS 1 Main Input 0x04 0x30 0x04 0xC8 0x04 0x04 12=CBVS2 0xE6=CVBS 2 Source 7=HDMI 0xF1=HDMI...
-
Page 27: Appendix E: Maintenance
Appendix Appendix E: Maintenance This equipment is extremely rugged and does not require a lot of maintenance. Remember that electrical equipment should be handled with care and used accordingly to its specifications. Cleaning the Display Screen Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. Do not use acetone, ethyl alcohol, toluene, ethyl acid or methyl chloride to clear the panel. - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
