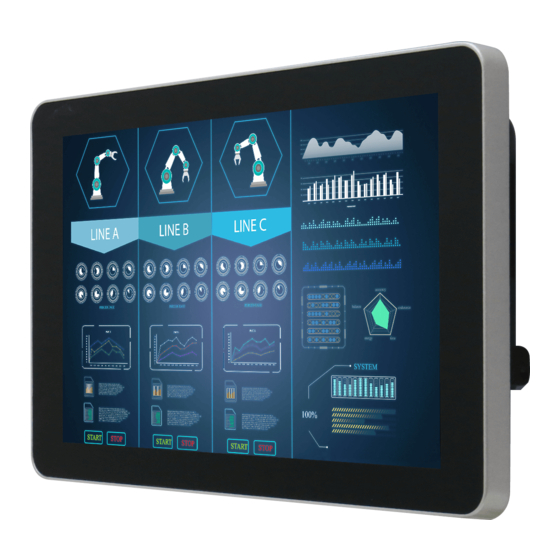

Winmate G-WIN Slim IP65 Quick Start Manual
  1. Manuals
  2. Brands
  3. Winmate Manuals
  4. Monitor
  5. G-WIN Slim IP65
  6. Quick start manual

Winmate G-WIN Slim IP65 Quick Start Manual

P-cap display
Hide thumbs Also See for G-WIN Slim IP65:
Table of Contents

Advertisement

Quick Links

Download this manual
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 91521110100Q
Please read these instructions carefully before using this product, and save this manual for future use.
G-WIN Slim IP65
P-CAP Display
W07L100-GSM1(HB)
W10L100-GSH1(HB)
R12L100-GSM2(HB)
R15L600-GSC3(HB)
Quick Start Guide
W10L100-GSH2
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-WIN Slim IP65 and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate G-WIN Slim IP65

Summary of Contents for Winmate G-WIN Slim IP65

  • Page 1 G-WIN Slim IP65 P-CAP Display W07L100-GSM1(HB) W10L100-GSH2 W10L100-GSH1(HB) R12L100-GSM2(HB) R15L600-GSC3(HB) Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 91521110100Q Please read these instructions carefully before using this product, and save this manual for future use.
  • Page 2 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received including  interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
  • Page 3 Warranty Winmate Inc. warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
  • Page 4 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.

  • Page 5: Table Of Contents

    CONTENTS INTRODUCTION Features Package Contents Description of Parts Physical Buttons and LED Indicators GETTING STARTED Turning On Your Device Turning Off Your Device INSTALLATION Wiring Requirements Connecting to Other Devices Connector Description Power Input Connector AC Adapter (For 7” Display) VGA Connector USB for Touch Connector Mounting...

  • Page 6: Introduction

    INTRODUCTION Congratulations on purchasing Winmate® G-WIN Slim IP65 P-CAP Display. The elegantly designed, yet rugged, industrial grade G-WIN S65 series is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 12.1”...

  • Page 7: Package Contents

    Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide AC Adapter Display (For 7”...

  • Page 8: Description Of Parts

    Description of Parts W07L100-GSM1(HB) Unit: mm Dimensions: 189.4 x 145.4 x 39.8 № № Description Description USB for Touch (M12 Type) ① ③ 12V DC (M12 Type) *Only for touch ② ④ VGA (M12 Type) OSD Control Panel - 8 -...
  • Page 9 W10L100-GSH2, W10L100-GSH1(HB) Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № № Description Description USB for Touch (M12 Type) ① ③ 12V DC (M12 Type) *Only for touch ② ④ VGA (M12 Type) OSD Control Panel - 9 -...
  • Page 10 R12L100-GSM2(HB) Unit: mm Dimensions: 296.2 x 226.7 x 45.5 № № Description Description USB for Touch (M12 Type) ① ③ 12V DC (M12 Type) *Only for touch ② ④ VGA (M12 Type) OSD Control Panel - 10 -...
  • Page 11 R15L600-GSC3(HB) Unit: mm Dimensions: 363.4 x 277.86 x 45.2 № № Description Description USB for Touch (M12 Type) ① ③ 12V DC (M12 Type) *Only for touch ② ④ VGA (M12 Type) OSD Control Panel - 11 -...

  • Page 12: Physical Buttons And Led Indicators

    Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display. Physical Buttons Icon Button Description DOWN/ VOLUME Press to lower down the volume DOWN UP/ VOLUME Press to increase the volume ESC/ AUTO Press to exit the menu Press to confirm the action or to come...
  • Page 13 LED Indicators LED Type Status Description Power is on Power is off Storage activity Blinking (Data is being read or written) System is idle - 13 -...

  • Page 14: Getting Started

    GETTING STARTED Turning On Your Device 1. Remove the protective cap of the power connector. 2. Connect power cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection.

  • Page 15: Installation

    INSTALLATION Wiring Requirements The following common safety precautions should be observed before installing any electronic device:  Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. ...

  • Page 16: Connecting To Other Devices

    Connecting to Other Devices This Display comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used.

  • Page 17: Connector Description

    Connector Description The Display features M12 type connectors with protective cap and has full IP65 rating. Power Input Connector Display has M12 type 3 pin male power input connector. Use IP65 power cable to connect the Display to the source of power. - 17 -...

  • Page 18: Ac Adapter (For 7" Display)

    AC Adapter (For 7” Display) Use IP65 AC Adapter cable to connect the 7” Display to the source of power. - 18 -...

  • Page 19: Vga Connector

    VGA Connector Display has M12 type to 10 pin male VGA connector. Use IP65 serial cable to connect the Display to external display. - 19 -...

  • Page 20: Usb For Touch Connector

    USB for Touch Connector Display has M12 type 12 pin USB A Type male connector for touch. - 20 -...

  • Page 21: Mounting

    100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 21 -...

  • Page 22: Panel Mounting

    Panel Mounting Panel Mount mounting solutions is suitable for many applications where Display should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 7” 174.4 x 130.4 M4x4 10.1”...

  • Page 23: Specifications

    SPECIFICATIONS Hardware Specifications Model Name W10L100- R12L100- R15L600- W07L100- W10L100- GSH1(HB) GSM2(HB) GSC3(HB GSM1(HB) GSH2 Display 10.1” TFT 10.1” TFT 7" TFT 12.1” TFT 15” TFT Size/Type (Wide) (Wide) (Wide) 1024 x Resolution 1024 x 600 1280 x 800 1024 x 600 1024 x 768 250 nits 500 nits 200 nits...
  • Page 24 Projected Capacitive Multi-Touch (P-CAP) (USB interface) with Touch optional protection glass Input/ Output Power Power input connector (M12 Type) Input Ports 1 x VGA (M12 Type), 1 x USB for Touch (M12 Type) Power Specifications Power Input 12V DC 9-36V DC Power Consumptio Power...
  • Page 25 Standards and Certification Safety CE, FCC Shock, Comply with MIL-STD-810F/G for shock/ vibration Vibration - 25 -...

  • Page 26: Appendix

    APPENDIX Appendix A: Cleaning the Monitor Before cleaning:  Make sure the device is turned off.  Disconnect the power cable from any AC outlet. When cleaning:  Never spray or pour any liquid directly on the screen or case. ...

  • Page 27: Appendix B: Available Input Signals

    Appendix B: Available Input Signals For information about available input signals, please refer to R-Series AD Board Manual included in the package. You can also download R - Series AD Board Manual from Winmate Download Center. Follow the link below: http://dc.winmate.com.tw/_downloadCenter/2009/Lcd/Display%20R-...
  • Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
