- Page 1 7~18.5” Stand Alone IP65 Type-C Display User Manual Version 1.0 Document Part Number: 91521110102P Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
Stand Alone Type-C Display (7~18.5") User Manual Contents Preface ........................... 3 About This User Manual ..................... 7 Chapter 1: Introduction ....................8 1.1 About Stand Alone USB Type-C Display .............. 9 1.2 Product Features ....................9 1.3 Package Overview ....................9 1.4 Product Overview .................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 Stand Alone Type-C Display (7~18.5") User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Caution/ Attention Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
- Page 6 Stand Alone Type-C Display (7~18.5") User Manual Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
-
Page 7: About This User Manual
Preface About This User Manual This User Manual provides information about using the Winmate® Stand Alone Type-C Display. The documentation set provides information for specific user needs, and includes: Stand Alone Type-C Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 8: Chapter 1: Introduction
Stand Alone Type-C Display (7~18.5") User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: About Stand Alone Usb Type-C Display
7”, 10.1”, 10.4”, 12.1” and 15” options. Full IP65 Type C Display features projected capacitive multi-touch (P-Cap) screen and waterproof full IP65 enclosure. 1.2 Product Features Winmate® Full IP65 Type C Display features: 7~18.5” LCD Projected capacitive multi-touch (P-Cap) Front IP65 rating ... -
Page 10: Product Overview

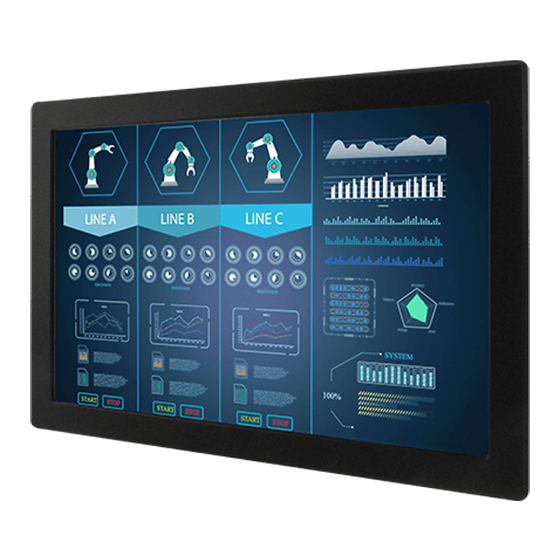

Stand Alone Type-C Display (7~18.5") User Manual 1.4 Product Overview This section describes physical appearance of the Full IP65 Type C Display. All dimensions shown in mm. W07L100-GCT1-C W07L100-GCO1-HB-C... - Page 11 Chapter 1: Introduction W10L100-GCH2-C R10L100-GCT2-C...
- Page 12 Stand Alone Type-C Display (7~18.5") User Manual R12L100-GCM2-C R15L600-PTC3-C...
- Page 13 Chapter 1: Introduction R15L600-PTA3-C W18L100-PTA1-C...
-
Page 14: External Connectors
Stand Alone Type-C Display (7~18.5") User Manual 1.5 External Connectors Terminal interfaces are located on the bottom side of the display. Item Description USB 3.1 Type C - Connects external devices and provides power to the monitor. 1.6 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display. -
Page 15: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 16: Wiring Requirements
Stand Alone Type-C Display (7~18.5") User Manual 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 17: Panel Mount
Chapter 2: Installation 2.2.1 Panel Mount The USB Type-C Display supports panel mount installation. The panel mount solution is suitable for many applications where display should be embedded. With this mounting solution flat surface leave no bezel in the front. Installation Instruction 1. -
Page 18: Vesa Mount
1. Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. 2. Follow instructions that come with VESA mount kit (Not supplied by Winmate). *The picture is for demonstration purposes only. VESA Mount accessories are not supplied by Winmate. -
Page 19: Connecting Peripherals
Chapter 2: Installation 2.3 Connecting Peripherals This Display comes with USB Type-C interface located on the bottom panel. For a nice look and safe installation, make sure cables are neatly hidden behind the device. Caution/ Attention Observe all local installation requirements for connection cable type and protection level. -
Page 20: Usb Type-C Connector Description
Stand Alone Type-C Display (7~18.5") User Manual 2.4 USB Type-C Connector Description The Display features M12 type USB 3.1 Type-C connector with protective cap and full IP67 rating. USB Type-C connector supports Alt mode and transmits power, video and sound. Pin Assignment and signal names for USB 3.1 Type-C connector Signal Name Signal Name... -
Page 21: Chapter 3: Operating The Device
Chapter 3: Operating the Device Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 22: Turning On/ Off The System
Stand Alone Type-C Display (7~18.5") User Manual 3.1 Turning on/ off the System To turn on the system: 1. Connect USB Type-C cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. 2. -
Page 23: On-Screen Display Menu Navigation
Chapter 3: Operating the Device 3.3 On-Screen Display Menu Navigation OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100 CONTRAST slider bar Default 50 BRICONTRAST Use to adjust the screen’s contrast. Range 0 to 100 USER R.G.B slider bar Choose RED/GREEN/BLUE to set value of color temperature brightness. -
Page 24: Appendix
Stand Alone Type-C Display (7~18.5") User Manual Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 25: Appendix A: Hardware Specifications
Appendix Appendix A: Hardware Specifications Model Name W07L100- W07L100- W10L100- W10L100- R10L100- GCT1-C GCO1-HB-C GCH2-C GCH1-HB-C GCT2-C Display 10.1” (Wide) 10.1” (Wide) 10.4” Size/Type 7" (Wide) 7" (Wide) Resolution 1024 x 600 1024 x 600 1280 x 800 1024 x 600 1024 x 768 Brightness 320 nits... - Page 26 Stand Alone Type-C Display (7~18.5") User Manual Model Name R12L100- R15L600- R15L600- W15L100- W18L100- GCM2-C PTC3-C GCC3-C PTA3-C PCT1-C Display 12.1” 15” 15” 15.6” 18.5” (Wide) Size/Type Resolution 1024 x 768 1024 x 768 1024 x 768 1920 x 1080 1366 x 768 Brightness 500 nits...
-
Page 27: Appendix B: Frequency Table
For more information about available input signals and OSD navigation, please refer to R6C AD Board Manual included in the package. You can also download R6C AD Board Manual from Winmate Download Center. Appendix D: Cleaning the Monitor Before cleaning: ... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
